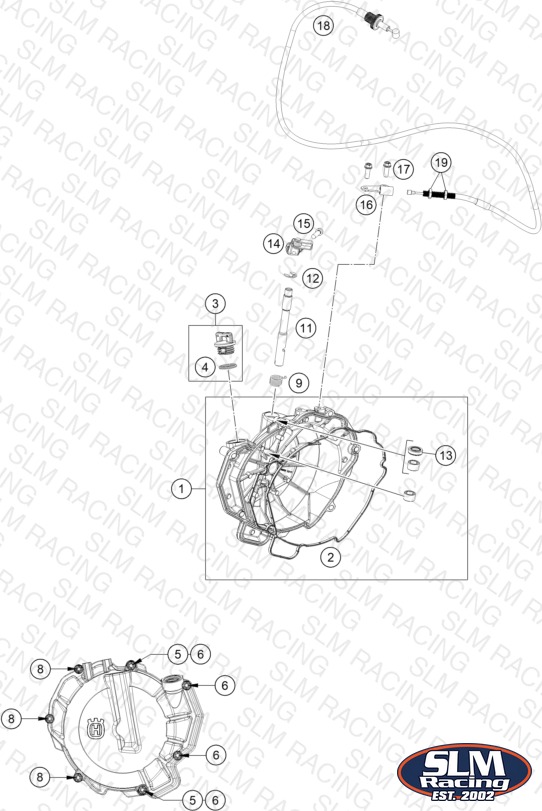

CLUTCH COVER
Parts (17)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 63530601044JA Clutch cover cmpl. | Clutch cover cmpl. | 1 | $106.36 | Available | 1 |
| 2 | 63530025300 Form ring, clutch cover | Form ring, clutch cover | 1 | $15.06 | Available | 1 |
| 3 | 58030020100 oil plug cpl. M24x3 | oil plug cpl. M24x3 | 1 | $6.15 | Available | 1 |
| 4 | 0770191015 O-RING 19,00X3,00 NBR | O-RING 19,00X3,00 NBR | 1 | $2.99 | Available | 1 |
| 5 | 59030023000 dowel sleeve 6x8x11.5 | dowel sleeve 6x8x11.5 | 2 | $1.99 | Available | 2 |
| 6 | 0025060356 HH collar screw M6x35 TX30 | HH collar screw M6x35 TX30 | 4 | $3.99 | Available | 4 |
| 8 | 0025060256 HH collar screw M6x25 TX30 | HH collar screw M6x25 TX30 | 3 | $3.99 | Available | 3 |
| 9 | 63532048003 clutch release lever spring | clutch release lever spring | 1 | $1.99 | Available | 1 |
| 11 | 63532149000 Clutch release shaft | Clutch release shaft | 1 | $25.95 | Available | 1 |
| 12 | 0799090003 retaining washer DIN 6799 - 9 | retaining washer DIN 6799 - 9 | 1 | $1.99 | Available | 1 |
| 13 | 0760122060 Shaft seal ring 32x45x6.5 | Shaft seal ring 32x45x6.5 | 1 | $4.99 | Available | 1 |
| 14 | 63532048233 Release lever assembly | Release lever assembly | 1 | — | Obsolete | View Details |
| 15 | 014580060206S Cyl. screw ISO 14580 M6x20 SS | Cyl. screw ISO 14580 M6x20 SS | 1 | $1.99 | Available | 1 |
| 16 | 63532052100 Cable retaining bracket | Cable retaining bracket | 1 | $13.08 | Available | 1 |
| 17 | 0025060166S HH collar screw M6x16 TX30 SL | HH collar screw M6x16 TX30 SL | 2 | $2.99 | Available | 2 |
| 18 | 63502090000 Clutch cable | Clutch cable | 1 | $82.49 | Backorder — Restocking | 1 |
| 19 | 0934080006 HEXAGON NUT DIN 934 M8 | HEXAGON NUT DIN 934 M8 | 2 | $2.99 | Available | 2 |
