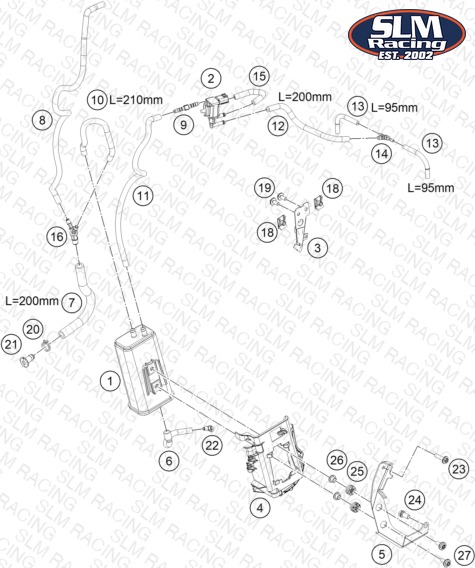

EVAPORATIVE CANISTER
Parts (25)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 75015001200 CARBON CANISTER | CARBON CANISTER | 1 | $78.42 | Available | 1 |
| 2 | A62415015000 Purge valve | Purge valve | 1 | $21.66 | Available | 1 |
| 3 | A61015126015 Retain. bracket evap. canis. v | Retain. bracket evap. canis. v | 1 | $84.25 | Available | 1 |
| 4 | 63515003010 Hose clip ACF | Hose clip ACF | 1 | $36.51 | Available | 1 |
| 5 | 6351500201033 Retaining bracket ACF | Retaining bracket ACF | 1 | $59.50 | Available | 1 |
| 6 | A61015021000 Pre-formed hose, evap. can., b | Pre-formed hose, evap. can., b | 1 | $14.84 | Available | 1 |
| 7 | 78015119000 HOSE EPA D=10/16 L=2000MM | HOSE EPA D=10/16 L=2000MM | 1 | $287.20 | Available | 1 |
| 8 | 22115122000 Pre-formed hose, tank insert/A | Pre-formed hose, tank insert/A | 1 | $50.15 | Available | 1 |
| 10 | 78015019000 HOSE EPA D=6/10 L=2000MM | HOSE EPA D=6/10 L=2000MM | 1 | $73.69 | Available | 1 |
| 11 | 63515028100 Evaporative canister hose - pu | Evaporative canister hose - pu | 1 | $32.77 | Available | 1 |
| 13 | 78015021000 HOSE EPA D=4/8 L=2000MM | HOSE EPA D=4/8 L=2000MM | 2 | $58.73 | Available | 2 |
| 14 | 64115026000 Hose connection nozzles | Hose connection nozzles | 1 | — | Obsolete | View Details |
| 16 | 61315028100 Y-CONNECTOR YS 6-10-6 | Y-CONNECTOR YS 6-10-6 | 1 | $9.89 | Available | 1 |
| 18 | 54603048100 clip nut M6 | clip nut M6 | 2 | $4.99 | Available | 2 |
| 19 | 0024060136 HH collar screw M6x13 TX30 | HH collar screw M6x13 TX30 | 2 | $3.99 | Available | 2 |
| 20 | 58431082100 YDNAC-clamp 10173 (16MM) | YDNAC-clamp 10173 (16MM) | 1 | $1.99 | Available | 1 |
| 21 | 61315026100 Screw plug ACF | Screw plug ACF | 1 | $25.73 | Available | 1 |
| 22 | 63503098030 Angle piece for overrun | Angle piece for overrun | 1 | $2.99 | Available | 1 |
| 23 | 0024060256 HH COLLAR SCREW M6X25 TX30 | HH COLLAR SCREW M6X25 TX30 | 1 | $3.99 | Available | 1 |
| 24 | 0025060166 HH collar screw M6x16 TX30 | HH collar screw M6x16 TX30 | 1 | $3.99 | Available | 1 |
| 25 | 62142041100 Damper 40 SHORE | Damper 40 SHORE | 2 | $4.99 | Available | 2 |
| 26 | 61342041100 Collar bushing 6,5x9x18x8.5 | Collar bushing 6,5x9x18x8.5 | 2 | $1.99 | Available | 2 |
| 27 | 0024060206S HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 2 | $1.99 | Available | 2 |
| 9 | 69015019010 HOSE CONNECTION STRAIGHT | HOSE CONNECTION STRAIGHT | 1 | $6.15 | Available | 1 |
| 15 | 61415021000 HOSE PURGE VALVE | HOSE PURGE VALVE | 1 | $29.47 | Obsolete | View Details |
