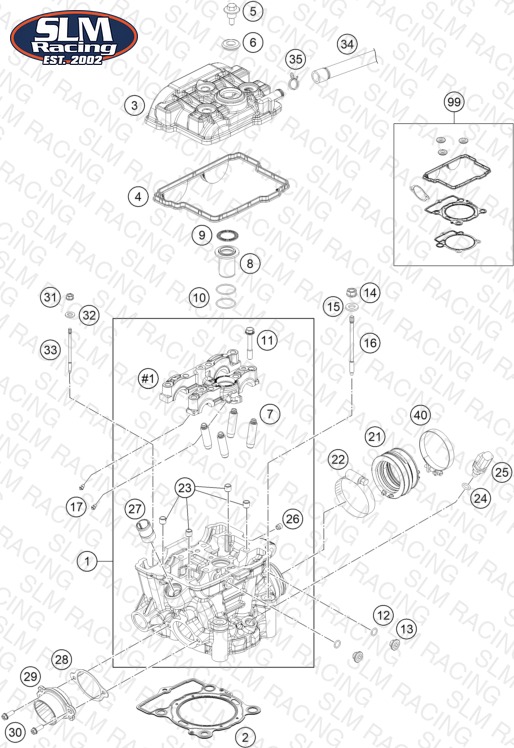

CYLINDER HEAD
Parts (34)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 77736220044 CYLINDER HEAD CPL. | CYLINDER HEAD CPL. | 1 | $937.74 | Available | 1 |
| 2 | 77730036085 CYLINDER HEAD GASKET | CYLINDER HEAD GASKET | 1 | $82.16 | Available | 1 |
| 3 | 77736052000DA VALVE COVER | VALVE COVER | 1 | — | Obsolete | View Details |
| 4 | 77736053000 VALVE COVER GASKET | VALVE COVER GASKET | 1 | $18.47 | Available | 1 |
| 5 | 77336054150 VALVE COVER SCREW | VALVE COVER SCREW | 3 | $6.15 | Available | 3 |
| 6 | 77036054150 RUBBER GASKET FOR SCREW | RUBBER GASKET FOR SCREW | 3 | $4.99 | Available | 3 |
| 7 | 77136026001 VALVE GUIDE OUTLET | VALVE GUIDE OUTLET | 4 | $32.77 | Available | 4 |
| 8 | 77736075000 INSERT SPARK-PLUG SHAFT | INSERT SPARK-PLUG SHAFT | 1 | $22.21 | Available | 1 |
| 9 | 77336053050 GASKET SPARK-PLUG SHAFT | GASKET SPARK-PLUG SHAFT | 1 | $6.92 | Available | 1 |
| 10 | 0770260015 O-RING 1,5x26 | O-RING 1,5x26 | 2 | $3.99 | Available | 2 |
| 11 | 77330067142 HH COLLAR SCREW M7X1X42 | HH COLLAR SCREW M7X1X42 | 8 | $1.99 | Available | 8 |
| 12 | 07700900151 O-RING 9x1,5 V80 SH | O-RING 9x1,5 V80 SH | 2 | $2.99 | Available | 2 |
| 13 | 77236080000 SCREW PLUG | SCREW PLUG | 2 | $7.80 | Available | 2 |
| 14 | 77336088210 COLLAR NUT M10X1,25 SW13 | COLLAR NUT M10X1,25 SW13 | 4 | $2.99 | Available | 4 |
| 15 | 77336089010 washer 19x10.5x2.5 | washer 19x10.5x2.5 | 4 | $4.99 | Available | 4 |
| 16 | 77230044000 STUD SCREW M10X1,25 | STUD SCREW M10X1,25 | 4 | $10.44 | Available | 4 |
| 17 | 60030063050 oil jet 50 M5 | oil jet 50 M5 | 4 | $11.10 | Available | 4 |
| 21 | 77236044000 CONNECTION RUBBER EFI | CONNECTION RUBBER EFI | 1 | $42.67 | Available | 1 |
| 22 | 61036047000 Hose clamp GEMI 63mm 05 | Hose clamp GEMI 63mm 05 | 1 | $8.90 | Available | 1 |
| 23 | 77036090000 DOWEL(BUSH BRIDGE)7/9/8 05 | DOWEL(BUSH BRIDGE)7/9/8 05 | 4 | $6.15 | Available | 4 |
| 24 | 0770100020 o-ring 10.00x2.00 silicone | o-ring 10.00x2.00 silicone | 1 | $2.99 | Available | 1 |
| 25 | 60011252000 TEMPERAT.-SENSOR WATER LC8 02 | TEMPERAT.-SENSOR WATER LC8 02 | 1 | $43.11 | Available | 1 |
| 26 | 59030296000 SCREW PLUG | SCREW PLUG | 1 | $7.36 | Available | 1 |
| 27 | 58030010200 SCREW IN NOZZLE M20X1,5 | SCREW IN NOZZLE M20X1,5 | 1 | $10.44 | Available | 1 |
| 28 | 77236041000 GASKET EXHAUST FLANGE | GASKET EXHAUST FLANGE | 1 | $12.86 | Available | 1 |
| 29 | 77736039000 ENGINEFLANGE | ENGINEFLANGE | 1 | $37.61 | Available | 1 |
| 30 | 0025060166S HH collar screw M6x16 TX30 SL | HH collar screw M6x16 TX30 SL | 2 | $2.99 | Available | 2 |
| 31 | 77336088106 COLLAR NUT M6X1 SW8 | COLLAR NUT M6X1 SW8 | 1 | $14.84 | Available | 1 |
| 99 | 77730097000 GASKET KIT CYL. 250 SX-F/EXC-F | GASKET KIT CYL. 250 SX-F/EXC-F | — | — | Obsolete | View Details |
| 32 | 0125060003 WASHER DIN0125-A 6,4 | WASHER DIN0125-A 6,4 | 1 | $1.99 | Available | 1 |
| 33 | 77330043000 STUD SCREW M6 | STUD SCREW M6 | 1 | $13.08 | Available | 1 |
| 34 | 77538087000 ENGINE BREATHER TUBE | ENGINE BREATHER TUBE | 1 | $12.97 | Available | 1 |
| 35 | 58431082300 CLAMP YDNAC 10173 (18MM) | CLAMP YDNAC 10173 (18MM) | 1 | $2.99 | Available | 1 |
| 40 | 77236048000 Hose clip GEMI 58 | Hose clip GEMI 58 | 1 | $14.18 | Available | 1 |
