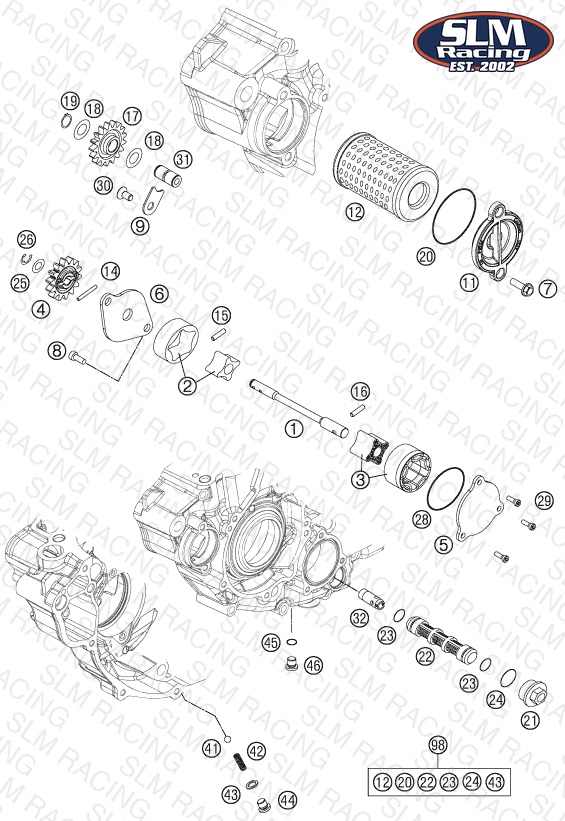

LUBRICATING SYSTEM
Parts (36)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 77238102000 OIL PUMP SHAFT | OIL PUMP SHAFT | 1 | $31.78 | Available | 1 |
| 2 | 59038011112 OILPUMP ROTOR-SET 12MM CPL. | OILPUMP ROTOR-SET 12MM CPL. | 1 | $24.41 | Available | 1 |
| 3 | 61238111000 ROTOR-SET CPL. 22MM | ROTOR-SET CPL. 22MM | 1 | $20.55 | Available | 1 |
| 4 | 77038001100 OIL PUMP GEAR 14T 08 | OIL PUMP GEAR 14T 08 | 1 | $9.12 | Available | 1 |
| 5 | 78038004000 OIL PUMP COVER SUCTION PUMP | OIL PUMP COVER SUCTION PUMP | 1 | $30.13 | Available | 1 |
| 6 | 77238003100 OIL PUMP COVER R/S | OIL PUMP COVER R/S | 1 | $14.29 | Available | 1 |
| 7 | 0025060166 HH collar screw M6x16 TX30 | HH collar screw M6x16 TX30 | 2 | $3.99 | Available | 2 |
| 8 | 0984050123S CYLIND. SCR. DIN6912 M5X12 8.8 | CYLIND. SCR. DIN6912 M5X12 8.8 | 2 | $2.99 | Available | 2 |
| 9 | 77238061050 AXIAL-CIRCLIP | AXIAL-CIRCLIP | 1 | $3.99 | Available | 1 |
| 11 | 77338041200 OIL FILTER COVER 08 | OIL FILTER COVER 08 | 1 | $13.74 | Available | 1 |
| 12 | 77338005100 Oil Filter 07 | Oil Filter 07 | 1 | $10.99 | Available | 1 |
| 14 | 0402251980 NEEDLEROL.DIN5402 NRA 2,5X19,8 | NEEDLEROL.DIN5402 NRA 2,5X19,8 | 1 | $1.99 | Available | 1 |
| 15 | 0402251180 NEEDLE ROLLER DIN5402 2,5X11,8 | NEEDLE ROLLER DIN5402 2,5X11,8 | 1 | $1.99 | Available | 1 |
| 16 | 0402041580 needle roller NRB 4x15.8 G2 | needle roller NRB 4x15.8 G2 | 1 | $2.99 | Available | 1 |
| 17 | 77038006100 OILPUMP IDLER GEAR 08 | OILPUMP IDLER GEAR 08 | 1 | $11.65 | Available | 1 |
| 18 | 0988121805 SHIM WASHER DIN0988-12X18X0,50 | SHIM WASHER DIN0988-12X18X0,50 | 2 | $2.99 | Available | 2 |
| 19 | 0471120010 retaining ring DIN 471 12x1 | retaining ring DIN 471 12x1 | 1 | $1.99 | Available | 1 |
| 20 | 07703305178 O-RING 33,05X1,78 | O-RING 33,05X1,78 | 1 | $3.99 | Available | 1 |
| 21 | 59038017100 PLUG M20X1,5 WS=13 | PLUG M20X1,5 WS=13 | 1 | $9.23 | Available | 1 |
| 22 | 59038016100 OIL SCREEN | OIL SCREEN | 1 | $8.24 | Available | 1 |
| 23 | 07701250151 O-RING 12,5X1,5 VITON V75 | O-RING 12,5X1,5 VITON V75 | 2 | $4.99 | Available | 2 |
| 24 | 0770020170 O-RING 17,17X1,78 GLO | O-RING 17,17X1,78 GLO | 1 | $2.99 | Available | 1 |
| 25 | 58038007755 STOP DISK 8,1 X 15 X 0,5 | STOP DISK 8,1 X 15 X 0,5 | 1 | $2.99 | Available | 1 |
| 26 | 0799060000 TAB WASHER DIN6799-RS 6,0 | TAB WASHER DIN6799-RS 6,0 | 1 | $2.99 | Available | 1 |
| 28 | 0770440020 O-RING 44,00X2,00 VITON | O-RING 44,00X2,00 VITON | 1 | $3.99 | Available | 1 |
| 29 | 0984050163S CYL. SCREW DIN6912 M5X16 8.8 | CYL. SCREW DIN6912 M5X16 8.8 | 3 | $2.99 | Available | 3 |
| 30 | 0018050103 INT. TORX OVAL HEAD M 5X10 8.8 | INT. TORX OVAL HEAD M 5X10 8.8 | 1 | $1.99 | Available | 1 |
| 31 | 77038013100 BUSHING PIN | BUSHING PIN | 1 | $9.89 | Available | 1 |
| 32 | 77038022000 OIL INTAKEPIPE | OIL INTAKEPIPE | 1 | $8.13 | Available | 1 |
| 41 | 0401090003 BALL DIN5401-9 | BALL DIN5401-9 | 1 | $2.99 | Available | 1 |
| 42 | 58038023300 PRESSURE SPRING L=25MM D=1MM | PRESSURE SPRING L=25MM D=1MM | 1 | $6.15 | Available | 1 |
| 43 | 58038022000 CU-seal ring DIN7603-12X18X1.5 | CU-seal ring DIN7603-12X18X1.5 | 1 | $2.99 | Available | 1 |
| 44 | 0908120153 threaded plug DIN 908 M12x1.5 | threaded plug DIN 908 M12x1.5 | 1 | $4.99 | Available | 1 |
| 45 | 0770110015 O-ring 11x1.5 VITON | O-ring 11x1.5 VITON | 1 | $6.15 | Available | 1 |
| 46 | 78036081000 HOLDING BOLT M14X1,5 | HOLDING BOLT M14X1,5 | 1 | $3.99 | Available | 1 |
| 98 | 00050000083 OILFILTER-GASKET SET 350 SX-F | OILFILTER-GASKET SET 350 SX-F | — | $32.77 | Available | 1 |
