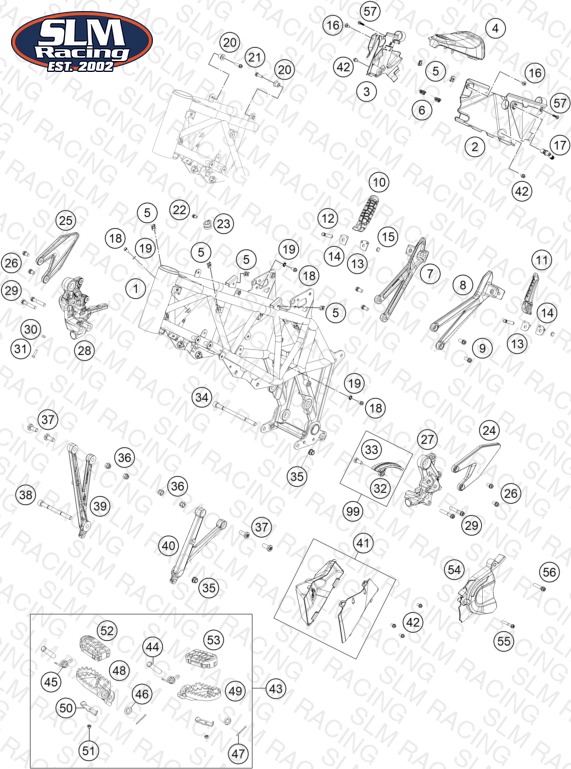

FRAME
Parts (58)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 27003101000HF Frame | Frame | 1 | — | Check availability | |
| 2 | 27003085000 FRAME COVER L/S | FRAME COVER L/S | 1 | — | Check availability | |
| 3 | 27003186000 Frame cover, right | Frame cover, right | 1 | — | Check availability | |
| 4 | 27003084000 IGNITION LOCK COVER | IGNITION LOCK COVER | 1 | — | Check availability | |
| 5 | 69008021080 clip nut M5 | clip nut M5 | 6 | — | Check availability | |
| 6 | 47106003160 quick release rubber grommet | quick release rubber grommet | 2 | — | Check availability | |
| 7 | 7690304900001 Rear footpeg bracket right | Rear footpeg bracket right | 1 | — | Check availability | |
| 8 | 7690304800001 Rear footpeg bracket left | Rear footpeg bracket left | 1 | — | Check availability | |
| 9 | 0025080166 HH COLLAR SCREW M8X16 TX40 | HH COLLAR SCREW M8X16 TX40 | 4 | — | Check availability | |
| 10 | 60003051000 Footrest cmpl. r/s rear 03 | Footrest cmpl. r/s rear 03 | 1 | — | Check availability | |
| 11 | 60003050000 FOOTREST CPL. L/S REAR 03 | FOOTREST CPL. L/S REAR 03 | 1 | — | Check availability | |
| 12 | 60003044000 BOLT FOR FOOTREST REAR 03 | BOLT FOR FOOTREST REAR 03 | 2 | — | Check availability | |
| 13 | 60003152000 ENGAGE PANEL FOOTREST L/S 03 | ENGAGE PANEL FOOTREST L/S 03 | 2 | — | Check availability | |
| 14 | 60003052000 ENGAGE PANEL FOOTREST R/S 03 | ENGAGE PANEL FOOTREST R/S 03 | 2 | — | Check availability | |
| 15 | 0799060003 retaining washer DIN 6799 - 6 | retaining washer DIN 6799 - 6 | 2 | — | Check availability | |
| 16 | 69008021160 special screw M5x12 | special screw M5x12 | 2 | — | Check availability | |
| 17 | 60038082000 ANGLE CONNECTOR LC8 03 | ANGLE CONNECTOR LC8 03 | 1 | — | Check availability | |
| 18 | 0025060126 HH collar screw M6x12 TX30 | HH collar screw M6x12 TX30 | 3 | — | Check availability | |
| 19 | 58411098100 CONTACT WASHER M6 VSV-K6 | CONTACT WASHER M6 VSV-K6 | 3 | — | Check availability | |
| 20 | 77307026000 TANK BUSHING 07 | TANK BUSHING 07 | 2 | — | Check availability | |
| 21 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 2 | — | Check availability | |
| 22 | 58605083014 Oval head screw M5x14 TX25 | Oval head screw M5x14 TX25 | 1 | — | Check availability | |
| 23 | 49007439000 CLAMP RSGU 15/12 | CLAMP RSGU 15/12 | 1 | — | Check availability | |
| 24 | 27003138050 HEEL PROTECTOR LS | HEEL PROTECTOR LS | 1 | — | Check availability | |
| 25 | 27003139050 HEEL PROTECTOR RS | HEEL PROTECTOR RS | 1 | — | Check availability | |
| 26 | 0025080126 HH collar screw M8x12 TX40 | HH collar screw M8x12 TX40 | 4 | — | Check availability | |
| 27 | 7690303804401 Front footpeg bracket left cmp | Front footpeg bracket left cmp | 1 | — | Check availability | |
| 28 | 7690303904401 Footpeg bracket right cmpl. | Footpeg bracket right cmpl. | 1 | — | Check availability | |
| 29 | 0025080456 HH collar screw M8x45 TX40 | HH collar screw M8x45 TX40 | 4 | — | Check availability | |
| 30 | 0934050003 HEXAGON NUT DIN0934-M 5 | HEXAGON NUT DIN0934-M 5 | 1 | — | Check availability | |
| 31 | 0933050203 HH SCREW DIN933 M5x20 | HH SCREW DIN933 M5x20 | 1 | — | Check availability | |
| 32 | 76504067000 CHAIN SLID. GUARD 08 | CHAIN SLID. GUARD 08 | 1 | — | Check availability | |
| 33 | 0035080206S SHCS M8x20 TX45 | SHCS M8x20 TX45 | 1 | — | Check availability | |
| 34 | 75003014000 SPECIAL SCREW M10X152 ISK8 07 | SPECIAL SCREW M10X152 ISK8 07 | 1 | — | Check availability | |
| 35 | 54630044000 COLLAR NUT M10 WS=13 | COLLAR NUT M10 WS=13 | 2 | — | Check availability | View Details |
| 36 | 54310086100 SELF LOCKING NUT M10 CU WS=14 | SELF LOCKING NUT M10 CU WS=14 | 4 | — | Check availability | |
| 37 | 0035100249 AH collar screw M10x24 ISA45 | AH collar screw M10x24 ISA45 | 4 | — | Check availability | |
| 38 | 75003015000 SPECIAL SCREW M10X115 ISK8 07 | SPECIAL SCREW M10X115 ISK8 07 | 1 | — | Check availability | |
| 39 | 7650300600033 ENGINE SUPPORT R/S BLACK | ENGINE SUPPORT R/S BLACK | 1 | — | Check availability | |
| 40 | 7650300500033 ENGINE SUPPORT L/S BLACK | ENGINE SUPPORT L/S BLACK | 1 | — | Check availability | |
| 41 | 27012061100 TOOL BOX | TOOL BOX | 1 | — | Check availability | |
| 42 | 0024060106 HH COLLAR SCREW M6X10 TX30 | HH COLLAR SCREW M6X10 TX30 | 5 | — | Check availability | |
| 43 | 78003040033 FOOTREST L/S + R/S CPL. 09 | FOOTREST L/S + R/S CPL. 09 | 1 | — | Check availability | |
| 44 | 54803044000 PIN FOR FOOT PED 51.5X9.8 MM | PIN FOR FOOT PED 51.5X9.8 MM | 2 | — | Check availability | |
| 45 | 54603041000 FOOTREST SPRING L/S & R/S | FOOTREST SPRING L/S & R/S | 2 | — | Check availability | |
| 46 | 0125100003 washer DIN 125 A 10.5 | washer DIN 125 A 10.5 | 2 | — | Check availability | |
| 47 | 0094032253 PIN DIN0094-3,2X25 STEEL | PIN DIN0094-3,2X25 STEEL | 2 | — | Check availability | View Details |
| 48 | 78003041050 FOOTREST R/S 08 | FOOTREST R/S 08 | 1 | — | Check availability | |
| 49 | 78003040050 FOOTREST L/S 08 | FOOTREST L/S 08 | 1 | — | Check availability | |
| 50 | 60003044010 CLOSING PANEL FRONT L/S R/S 03 | CLOSING PANEL FRONT L/S R/S 03 | 2 | — | Check availability | |
| 51 | 0985050003 Self locking nut DIN 985 M5 | Self locking nut DIN 985 M5 | 2 | — | Check availability | |
| 52 | 60003041010 FOOTREST RUBBER FRONT R/S 03 | FOOTREST RUBBER FRONT R/S 03 | 1 | — | Check availability | |
| 53 | 60003040010 FOOTREST RUBBER FRONT L/S 03 | FOOTREST RUBBER FRONT L/S 03 | 1 | — | Check availability | |
| 54 | 76530060044 CHAIN GUARD CPL. 08 | CHAIN GUARD CPL. 08 | 1 | — | Check availability | |
| 55 | 0025060406 HH collar screw M6x40 TX30 | HH collar screw M6x40 TX30 | 1 | — | Check availability | |
| 56 | 0025080356 HH collar screw M8x35 TX40 | HH collar screw M8x35 TX40 | 1 | — | Check availability | |
| 57 | 0081050181 SCREW FOR PLASTIC K50X18 T20 | SCREW FOR PLASTIC K50X18 T20 | 2 | — | Check availability | |
| 99 | 76504067010 CHAIN SLIDING BELOW 08-13 | CHAIN SLIDING BELOW 08-13 | 1 | — | Check availability |
