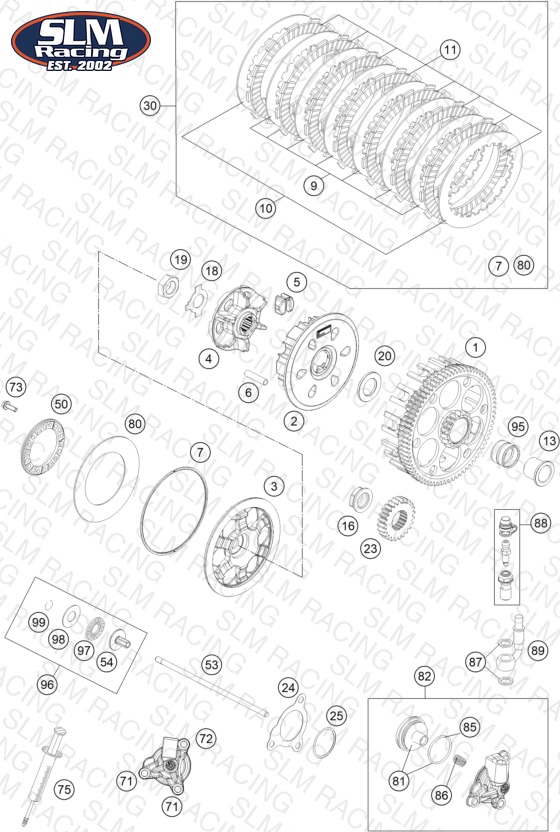

CLUTCH
Parts (39)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 5 | 78132025100 DAMPING RUBBER | DAMPING RUBBER | 6 | $4.99 | Available | 6 |
| 6 | 78132004000 SLEEVE 7,5X33.4 | SLEEVE 7,5X33.4 | 6 | $4.99 | Available | 6 |
| 7 | 78132013000 WASHER 112X118X1.5 | WASHER 112X118X1.5 | 1 | $12.75 | Available | 1 |
| 10 | 59032010100 INTERMEDIATE DISC 1MM 2002 | INTERMEDIATE DISC 1MM 2002 | 2 | $11.54 | Available | 2 |
| 4 | 78132002111 HUB | HUB | 1 | $158.50 | Available | 1 |
| 11 | 77532011000 LINING DISC | LINING DISC | 8 | $37.83 | Available | 8 |
| 16 | 77230029000 NUT PRIMARY WHEEL | NUT PRIMARY WHEEL | 1 | $5.05 | Available | 1 |
| 18 | 78132018000 TAB WASHER | TAB WASHER | 1 | $6.92 | Available | 1 |
| 3 | 78132003100 CLUTCH PRESSURE CAP | CLUTCH PRESSURE CAP | 1 | $245.73 | Available | 1 |
| 9 | 59032010200 INTERMEDIATE DISC 1,4MM 2002 | INTERMEDIATE DISC 1,4MM 2002 | 7 | $12.86 | Available | 7 |
| 13 | 77232015000 INNER RING | INNER RING | 1 | $24.30 | Available | 1 |
| 19 | 0936181505 HEXAGON NUT DIN0936-M18X1,5 R. | HEXAGON NUT DIN0936-M18X1,5 R. | 1 | $9.12 | Available | 1 |
| 20 | 77232009000 WASHER 21,8 X 37 X 5,1 | WASHER 21,8 X 37 X 5,1 | 1 | $9.56 | Available | 1 |
| 23 | 77232023024 PRIMARY GEAR 24T. | PRIMARY GEAR 24T. | 1 | $111.20 | Available | 1 |
| 24 | 77232062000 GASKET F. OUTPUT CYLINDER | GASKET F. OUTPUT CYLINDER | 1 | $4.99 | Available | 1 |
| 25 | 0770300015 O-ring 30x1.5 NBR 70 | O-ring 30x1.5 NBR 70 | 1 | $2.99 | Available | 1 |
| 30 | 77732010110 CLUTCH KIT 250 EXC-F, XCF-W | CLUTCH KIT 250 EXC-F, XCF-W | 1 | $288.30 | Available | 1 |
| 50 | 78132006100 SPRING RING | SPRING RING | 1 | $12.75 | Available | 1 |
| 53 | 77232054000 PUSH ROD | PUSH ROD | 1 | $19.46 | Available | 1 |
| 54 | 78032057000 PRESSURE PIECE | PRESSURE PIECE | 1 | $30.68 | Available | 1 |
| 71 | 0025060166 HH collar screw M6x16 TX30 | HH collar screw M6x16 TX30 | 2 | $3.99 | Available | 2 |
| 72 | 0025060356 HH collar screw M6x35 TX30 | HH collar screw M6x35 TX30 | 1 | $3.99 | Available | 1 |
| 73 | 0025050166 HH collar screw M5x16 TX30 | HH collar screw M5x16 TX30 | 6 | $2.99 | Available | 6 |
| 75 | 50329050000 VENT INJEKTION HYDR. CLUTCH | VENT INJEKTION HYDR. CLUTCH | 1 | $63.24 | Available | 1 |
| 80 | 78132005000 BELLEVILLE SPRING 71X115X1,5 I | BELLEVILLE SPRING 71X115X1,5 I | 1 | $37.61 | Available | 1 |
| 81 | 77232066000 PISTON CPL. | PISTON CPL. | 1 | $58.62 | Available | 1 |
| 82 | 77232061044 OUTPUT CYLINDER CPL. | OUTPUT CYLINDER CPL. | 1 | $155.53 | Available | 1 |
| 85 | 54832067000 O-RING | O-RING | 1 | $3.99 | Available | 1 |
| 86 | 54832069000 PRESSURE SPRING | PRESSURE SPRING | 1 | $14.18 | Available | 1 |
| 87 | 42013226000 CU-SEAL RING DIN7603-10X16X1 | CU-SEAL RING DIN7603-10X16X1 | 2 | $2.99 | Available | 2 |
| 88 | 62513020000 BLEEDER SCREW CPL. 05 | BLEEDER SCREW CPL. 05 | 1 | $32.33 | Available | 1 |
| 89 | 54832063000 CLUTCH PIPE 06 | CLUTCH PIPE 06 | 1 | $118.02 | Available | 1 |
| 95 | 56532095000 NEEDLE BEARING K26X30X22ZW.KSE | NEEDLE BEARING K26X30X22ZW.KSE | 1 | $28.04 | Available | 1 |
| 96 | 78032057044 PRESSURE PIECE CPL. 08 | PRESSURE PIECE CPL. 08 | 1 | $30.68 | Available | 1 |
| 97 | 54637097200 AXIAL NEEDLE BEARING AXK 1226 | AXIAL NEEDLE BEARING AXK 1226 | 1 | $11.98 | Available | 1 |
| 98 | 54637098200 AXIAL WASHER AS1226 12X26X1 | AXIAL WASHER AS1226 12X26X1 | 1 | $6.15 | Available | 1 |
| 99 | 0993012000 CIRCLIP DIN7993-RW12 | CIRCLIP DIN7993-RW12 | 1 | $3.99 | Available | 1 |
| 1 | 77232001173 OUTER CLUTCH HUB | OUTER CLUTCH HUB | 1 | $298.64 | Available | 1 |
| 2 | 78132002200 INNER CLUTCH HUB 450SX-F 2014 | INNER CLUTCH HUB 450SX-F 2014 | 1 | $158.50 | Available | 1 |
