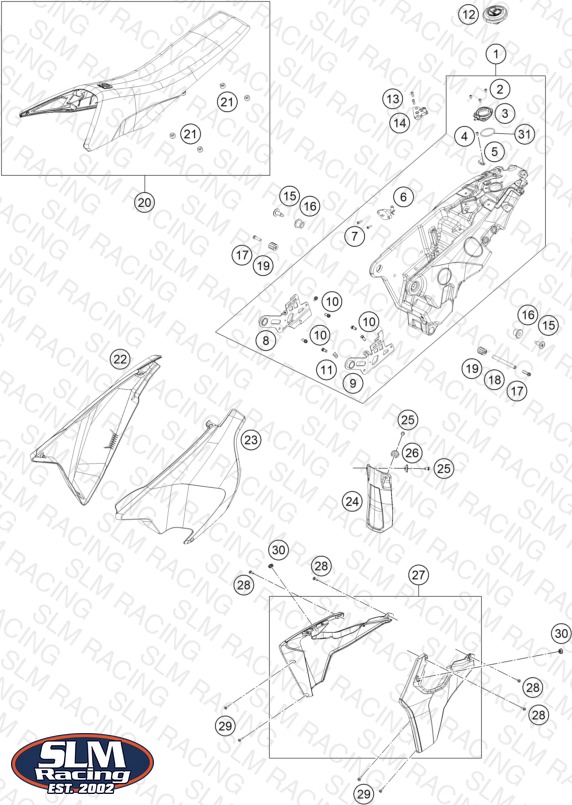

TANK, SEAT
Parts (31)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 27007113144 FUEL TANK CPL. | FUEL TANK CPL. | 1 | — | Check availability | |
| 2 | 58605083010 SCREW TORX M5X10 05 | SCREW TORX M5X10 05 | 3 | — | Check availability | |
| 3 | 76507108050 Closure flange | Closure flange | 1 | — | Check availability | |
| 4 | 78105081010 SCREW TORX M5X10 | SCREW TORX M5X10 | 1 | — | Check availability | |
| 5 | 57013070100 PVC-CLAMP 7,9 MM HEYCO 3355 | PVC-CLAMP 7,9 MM HEYCO 3355 | 1 | — | Check availability | |
| 6 | 58207080100 GAS-LEVEL SENSOR ADV. 2006 | GAS-LEVEL SENSOR ADV. 2006 | 1 | — | Check availability | |
| 7 | 0912050163 AH collar screw DIN 912 M5x16 | AH collar screw DIN 912 M5x16 | 2 | — | Check availability | |
| 8 | 27007028000 RIGHT FUEL-TANK SUPPORT PLATE | RIGHT FUEL-TANK SUPPORT PLATE | 1 | — | Check availability | |
| 9 | 27007027100 Retaining bracket tank left | Retaining bracket tank left | 1 | — | Check availability | |
| 10 | 0025080166 HH COLLAR SCREW M8X16 TX40 | HH COLLAR SCREW M8X16 TX40 | 6 | — | Check availability | |
| 11 | 27007053000 CLAMP FOR SEAT LOCK LINKAGE | CLAMP FOR SEAT LOCK LINKAGE | 1 | — | Check availability | |
| 12 | 27007008000 TANK CAP | TANK CAP | 1 | — | Check availability | |
| 13 | 0738060181 BHCS ISO 7380 M6X18 | BHCS ISO 7380 M6X18 | 2 | — | Check availability | |
| 14 | 76507050000 SEAT LOCK | SEAT LOCK | 1 | — | Check availability | |
| 15 | 76507060000 BEARING BUSHING UP | BEARING BUSHING UP | 2 | — | Check availability | View Details |
| 16 | 76507066000 RUBB.BEAR.BOX 12x24x35 L=24,5 | RUBB.BEAR.BOX 12x24x35 L=24,5 | 2 | — | Check availability | |
| 17 | 0025080306S HH COLLAR SCREW M8X30 TX40 | HH COLLAR SCREW M8X30 TX40 | 2 | — | Check availability | |
| 18 | 76507061000 BEARING BUSHING DOWN | BEARING BUSHING DOWN | 1 | — | Check availability | View Details |
| 19 | 76507065100 RUBBER BUSHING 11,7X24,7 L=26 | RUBBER BUSHING 11,7X24,7 L=26 | 2 | — | Check availability | |
| 20 | 27007140300 Seat cmpl. FE | Seat cmpl. FE | 1 | — | Check availability | |
| 21 | 27007040045 SEAT RUBBER | SEAT RUBBER | 4 | — | Check availability | |
| 22 | 27008041000AB Rear side fairing right | Rear side fairing right | 1 | — | Check availability | |
| 23 | 27008040000AB Rear side fairing left | Rear side fairing left | 1 | — | Check availability | |
| 24 | 76506010100 Splash protection | Splash protection | 1 | — | Check availability | |
| 25 | 0025060166 HH collar screw M6x16 TX30 | HH collar screw M6x16 TX30 | 2 | — | Check availability | |
| 26 | 72210079000 BUCKET | BUCKET | 2 | — | Check availability | View Details |
| 27 | 27008054000ABA Spoile rset 701 Enduro 20 | Spoile rset 701 Enduro 20 WITH DECAL | 1 | — | Check availability | |
| 28 | 69008021160 special screw M5x12 | special screw M5x12 | 4 | — | Check availability | |
| 29 | 69008021060 special screw M5x17 | special screw M5x17 | 4 | — | Check availability | |
| 30 | 47106003160 quick release rubber grommet | quick release rubber grommet | 2 | — | Check availability | |
| 31 | 0770050030 O-ring 50.00X3.00 VITON | O-ring 50.00X3.00 VITON | 1 | — | Check availability |
