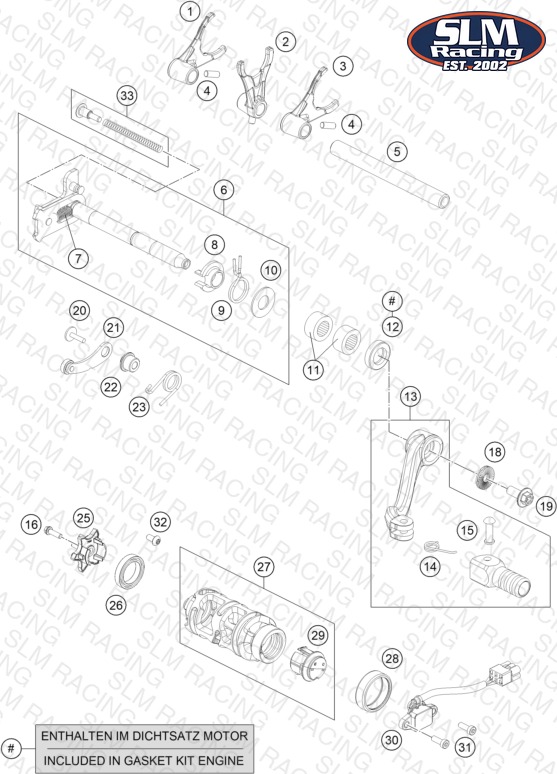

SHIFTING MECHANISM
Parts (31)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 75034002100 SHIFT FORK F. SLIDINGGEAR 5 12 | SHIFT FORK F. SLIDINGGEAR 5 12 | 1 | — | Check availability | |
| 2 | 75034001100 SHIFT FORK F. SLIDINGG. 3/4 12 | SHIFT FORK F. SLIDINGG. 3/4 12 | 1 | — | Check availability | |
| 3 | 75034003100 SHIFT FORK F. SLIDINGGEAR 6 12 | SHIFT FORK F. SLIDINGGEAR 6 12 | 1 | — | Check availability | |
| 4 | 0402061480 NEEDLE ROLLER DIN5402 6X14,8 | NEEDLE ROLLER DIN5402 6X14,8 | 2 | — | Check availability | |
| 5 | 75034019000 SHIFTRAIL 07 | SHIFTRAIL 07 | 1 | — | Check availability | View Details |
| 6 | 76834005133 Shifting shaft assembled | Shifting shaft assembled | 1 | — | Check availability | |
| 7 | 56534013100 TENSIONING SPRING 0,8MM | TENSIONING SPRING 0,8MM | 1 | — | Check availability | |
| 8 | 54634020000 SPRING GUIDE | SPRING GUIDE | 1 | — | Check availability | |
| 9 | 54834014000 RETURN SPRING 03 | RETURN SPRING 03 | 1 | — | Check availability | |
| 10 | 75034050000 STOP DISK 14X30X1,5 STEEL | STOP DISK 14X30X1,5 STEEL | 1 | — | Check availability | |
| 11 | 54632095000 needle sleeve HK 1412 14x20x12 | needle sleeve HK 1412 14x20x12 | 2 | — | Check availability | |
| 12 | 0760142460 radial shaft seal 14x24x6 B | radial shaft seal 14x24x6 B | 1 | — | Check availability | |
| 13 | 75034031000 SHIFT LEVER CPL. 07 | SHIFT LEVER CPL. 07 | 1 | — | Check availability | |
| 14 | 75034032000 SHIFTING LEVER SPRING | SHIFTING LEVER SPRING | 1 | — | Check availability | |
| 15 | 54634031050 BOLT 6X25 FOR SHIFT LEVER | BOLT 6X25 FOR SHIFT LEVER | 1 | — | Check availability | |
| 16 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 1 | — | Check availability | |
| 18 | 50233041500 PAIR NORDLOCK WASHER M6 | PAIR NORDLOCK WASHER M6 | 1 | — | Check availability | |
| 19 | 0024060156S HH collar screw M6x15 TX30 | HH collar screw M6x15 TX30 | 1 | — | Check availability | |
| 20 | 0024060206S HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 1 | — | Check availability | |
| 21 | 61434024000 LOCKING LEVER CPL. | LOCKING LEVER CPL. | 1 | — | Check availability | |
| 22 | 75034052000 SLEEVE FOR LOCKING LEVER 07 | SLEEVE FOR LOCKING LEVER 07 | 1 | — | Check availability | |
| 23 | 60034023100 ARRESTING LEVER SPRING 07 | ARRESTING LEVER SPRING 07 | 1 | — | Check availability | |
| 25 | 76834115001 Shift locker | Shift locker | 1 | — | Check availability | View Details |
| 26 | 0625618050 BALL BEARING 61805 C3 | BALL BEARING 61805 C3 | 1 | — | Check availability | |
| 27 | 76634012144 Shifting drum cpl. | Shifting drum cpl. | 1 | — | Check availability | |
| 28 | 0618354212 NEEDLE BEAR HK3512 35X42X12 | NEEDLE BEAR HK3512 35X42X12 | 1 | — | Check availability | |
| 29 | 79234012020 Magnet bracket cmpl. | Magnet bracket cmpl. | 1 | — | Check availability | |
| 30 | 60411023000 GEAR POSITION SENSOR | GEAR POSITION SENSOR | 1 | — | Check availability | |
| 31 | 0025050126S Hex collar screw M5x12 ISA30 S | Hex collar screw M5x12 ISA30 S | 2 | — | Check availability | |
| 32 | 073801050105S Oval head screw ISR M5x10-10.9 | Oval head screw ISR M5x10-10.9 | 1 | — | Check availability | |
| 33 | 75034007044 SPRING F. SHIFTING SHAFT CPL. | SPRING F. SHIFTING SHAFT CPL. | 1 | — | Check availability |
