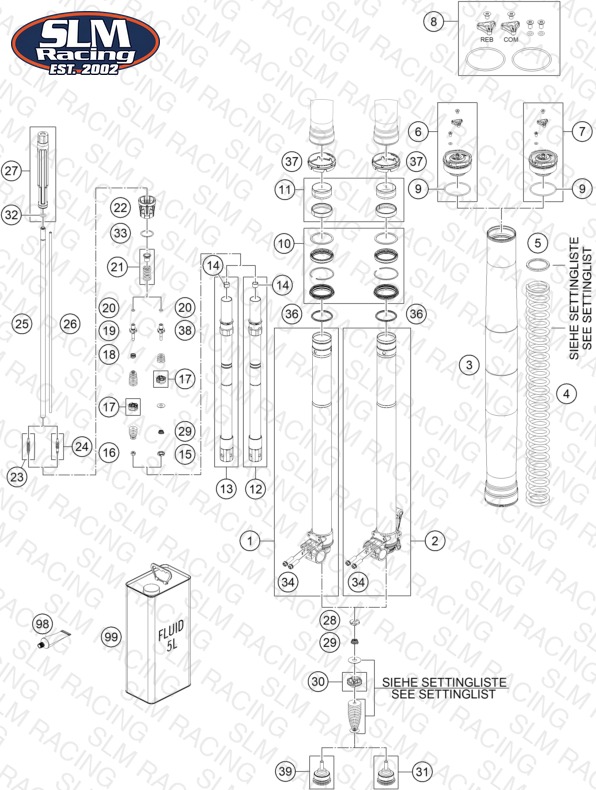

FRONT FORK DISASSEMBLED
Parts (42)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 48601713S1 Axle Clamp R/S + Tube D48mm 35 | Axle Clamp R/S + Tube D48mm 35 | 1 | — | Check availability | |
| 2 | 48601712S1 Axle Clamp L/S + Tube D48mm 35 | Axle Clamp L/S + Tube D48mm 35 | 1 | — | Check availability | |
| 3 | 48600736 Fork outer tube 49,13x577 dt54 | Fork outer tube 49,13x577 dt54 | 2 | — | Check availability | |
| 4 | 91410065S-01 Mainspring D44.2 L465 5.4N/MM | Mainspring D44.2 L465 5.4N/MM | 1 | — | Check availability | |
| 5 | 48600456 Washer 35x43x2,5 plastic | Washer 35x43x2,5 plastic | 0 | — | Check availability | |
| 6 | 48601960S1 Screw cap M51x1.5 rebound cmpl | Screw cap M51x1.5 rebound cmpl | 1 | — | Check availability | |
| 7 | 48601961S1 Screw cap M51x1.5 compression | Screw cap M51x1.5 compression | 1 | — | Check availability | |
| 8 | R14033 SCREW CAP SMALL PART KIT | SCREW CAP SMALL PART KIT | 1 | — | Check availability | View Details |
| 9 | 48600048 O-ring 46x2 NBR70 siliconized | O-ring 46x2 NBR70 siliconized | 2 | — | Check availability | |
| 10 | RP10012 Sealkit 48mm SKF black | Sealkit 48mm SKF black | 1 | — | Check availability | View Details |
| 11 | R14047 Guide bushing set fork 48mm | Guide bushing set fork 48mm | 1 | — | Check availability | View Details |
| 12 | 43570787S1 Tube cpl. | Tube cpl. | 1 | — | Check availability | |
| 13 | 43570787S2 Tube d23x462 cpl. | Tube d23x462 cpl. | 1 | — | Check availability | |
| 14 | 48600430 Guide bushing 12x14x10 | Guide bushing 12x14x10 | 2 | — | Check availability | |
| 15 | 48600885 Nut valve M6x0,5 h6,5 WAF17 | Nut valve M6x0,5 h6,5 WAF17 | 1 | — | Check availability | |
| 16 | 40540486 Nut M6x0,5 h6,5 WAF10 rebound | Nut M6x0,5 h6,5 WAF10 rebound | 1 | — | Check availability | |
| 17 | 48602002S Midvalve piston assembly d23 | Midvalve piston assembly d23 | 2 | — | Check availability | |
| 18 | 48600382 Spring (11,4) 0,4-8 valve | Spring (11,4) 0,4-8 valve | 1 | — | Check availability | |
| 19 | 48600576 Tap 6x46 rebound | Tap 6x46 rebound | 1 | — | Check availability | |
| 20 | 48600299 O-ring 6x1,2 NBR70 | O-ring 6x1,2 NBR70 | 2 | — | Check availability | |
| 21 | 48600578S Spring (13,9) 37-32 rebound cp | Spring (13,9) 37-32 rebound cp | 2 | — | Check availability | |
| 22 | 48601298 Spring retainer 27,08x43x45 | Spring retainer 27,08x43x45 | 2 | — | Check availability | |
| 23 | 48600277S Needle 4,5x43,6 cpl. | Needle 4,5x43,6 cpl. | 1 | — | Check availability | |
| 24 | 48600887S Needle 4,5x43,6 cpl. | Needle 4,5x43,6 cpl. | 1 | — | Check availability | |
| 25 | 48600571 Piston rod 12x549 | Piston rod 12x549 | 2 | — | Check availability | |
| 26 | 48600559 Adjustment tube 6x520 | Adjustment tube 6x520 | 2 | — | Check availability | |
| 27 | 48601556S3 Stop 12.4x20.7x210 cmpl. | Stop 12.4x20.7x210 cmpl. | 2 | — | Check availability | |
| 28 | 48600163 Nut valve M6x0,5 h6,5 WAF17 | Nut valve M6x0,5 h6,5 WAF17 | 2 | — | Check availability | |
| 29 | 48600202 Spring (8,5) l6,5 valve | Spring (8,5) l6,5 valve | 3 | — | Check availability | |
| 30 | 48601934S Piston 6x27,3x9 compression cp | Piston 6x27,3x9 compression cp | 2 | — | Check availability | |
| 31 | 48601553S Screw cap M29,3x1 OC split cpl | Screw cap M29,3x1 OC split cpl | 1 | — | Check availability | |
| 32 | 04500003 O-ring 11x2,5 NBR70 PTFE yello | O-ring 11x2,5 NBR70 PTFE yello | 2 | — | Check availability | |
| 33 | 48601702 Shim 27,5x33x0,3 | Shim 27,5x33x0,3 | 2 | — | Check availability | |
| 34 | 0025080256 HH collar screw M8x25 | HH collar screw M8x25 | 4 | — | Check availability | |
| 98 | T14034 Fuchs grease IPR (250g) | Fuchs grease IPR (250g) | 1 | — | Check availability | |
| 99 | 48601166S1 Fork Fluid Viscosity 4.0 5L | Fork Fluid Viscosity 4.0 5L | 1 | — | Check availability | |
| 5 | 48600457 Preload bush 35x43x3,5 | Preload bush 35x43x3,5 | 0 | — | Check availability | |
| 5 | 48600458 Washer 35x43x1,5 plastic | Washer 35x43x1,5 plastic | 0 | — | Check availability | |
| 36 | 48602007 Stroke indicator 48mm red | Stroke indicator 48mm red | 2 | — | Check availability | |
| 37 | 48601948 Fork protection ring 60,1mm | Fork protection ring 60,1mm | 2 | — | Check availability | View Details |
| 38 | 48601086 Tap 6x45 compression | Tap 6x45 compression | 1 | — | Check availability | |
| 39 | 48601980S Screw cap M29,3x1 | Screw cap M29,3x1 | 1 | — | Check availability |
