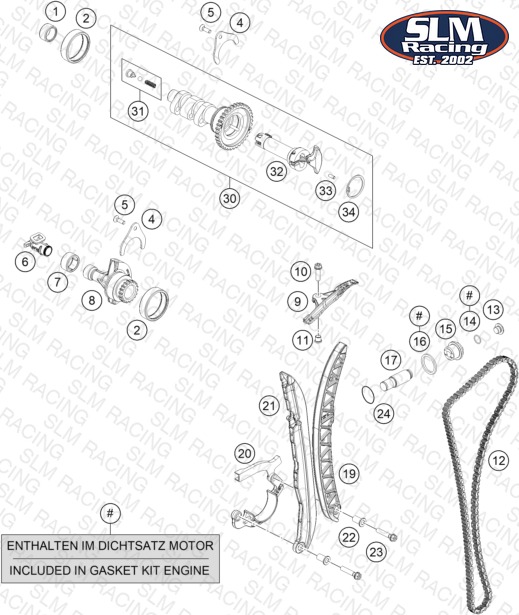

TIMING DRIVE
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 0618182412 NEEDLE BEAR.HK1812 18/24/12 05 | NEEDLE BEAR.HK1812 18/24/12 05 | 1 | $9.56 | Available | 1 |
| 2 | 0618404712 NEEDLE SLEEVE HK4012B40X47X12 | NEEDLE SLEEVE HK4012B40X47X12 | 2 | $12.97 | Available | 2 |
| 4 | 76636010050 LOCKING PLATE | LOCKING PLATE | 2 | $17.81 | Available | 2 |
| 5 | 0019050163S INT. TORX FLAT HEAD M5X16 8.8 | INT. TORX FLAT HEAD M5X16 8.8 | 2 | $2.99 | Available | 2 |
| 6 | 76636081000 BREATHER SYSTEM CONNECTOR | BREATHER SYSTEM CONNECTOR | 1 | $7.80 | Available | 1 |
| 7 | 50203097000 NEEDLE BUSH HK 2012 | NEEDLE BUSH HK 2012 | 1 | $18.25 | Available | 1 |
| 8 | 76630158000 Balancer shaft cylinder head | Balancer shaft cylinder head | 1 | $87.22 | Backorder — Restocking | 1 |
| 9 | 76636005000 CHAIN GUIDE | CHAIN GUIDE | 1 | $8.13 | Available | 1 |
| 10 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 1 | $3.99 | Available | 1 |
| 11 | 60040027050 SUPPORTING SLEEVE 03 | SUPPORTING SLEEVE 03 | 1 | $7.47 | Available | 1 |
| 12 | 76636013000 TIMING CHAIN | TIMING CHAIN | 1 | $60.82 | Available | 1 |
| 13 | 76636080000 PLUG | PLUG | 1 | $16.05 | Available | 1 |
| 14 | 0770010010 o-ring 10.00x1.00 NBR70 | o-ring 10.00x1.00 NBR70 | 1 | $2.99 | Available | 1 |
| 15 | 75036008000 SCREW PLUG CHAIN ADJ. 07 | SCREW PLUG CHAIN ADJ. 07 | 1 | $17.26 | Available | 1 |
| 16 | 0603202702 CU SEAL-RING 20X27X1 | CU SEAL-RING 20X27X1 | 1 | $4.99 | Available | 1 |
| 17 | 77036003000 CHAIN ADJUSTER HYD. 05 | CHAIN ADJUSTER HYD. 05 | 1 | $86.89 | Available | 1 |
| 19 | 76636002000 TENSIONER RAIL | TENSIONER RAIL | 1 | $26.83 | Available | 1 |
| 20 | 76636018000 CHAIN GUIDE | CHAIN GUIDE | 1 | $9.89 | Available | 1 |
| 21 | 76636001000 GUIDING RAIL | GUIDING RAIL | 1 | $13.30 | Available | 1 |
| 22 | 75036018050 SUPPORTING SLEEVE 07 | SUPPORTING SLEEVE 07 | 2 | $6.15 | Available | 2 |
| 23 | 0025060306S HH collar screw M6x30 TX30 | HH collar screw M6x30 TX30 | 2 | $3.99 | Available | 2 |
| 24 | 0770180020 o-ring 18.00x2.00 NBR70 | o-ring 18.00x2.00 NBR70 | 1 | $2.99 | Available | 1 |
| 30 | 76636010144 CAMSHAFT | CAMSHAFT | 1 | $636.12 | Backorder — Restocking | 1 |
| 31 | 76636016044 DECO SPRING CPL. | DECO SPRING CPL. | 1 | $29.47 | Available | 1 |
| 32 | 76636019144 INSERT CAMSHAFT CPL. | INSERT CAMSHAFT CPL. | 1 | $203.93 | Available | 1 |
| 33 | 0402040980 Needle roll.DIN5402 NRB 4X9.8 | Needle roll.DIN5402 NRB 4X9.8 | 1 | $3.99 | Available | 1 |
| 34 | 0472320120 Seeger ring J32 DIN472 32X1,2 | Seeger ring J32 DIN472 32X1,2 | 1 | $1.99 | Available | 1 |
