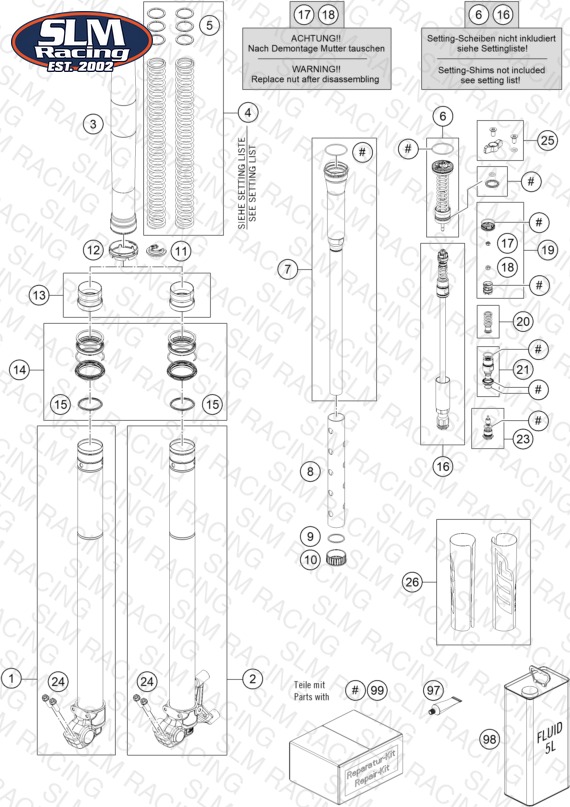

FRONT FORK DISASSEMBLED
Parts (32)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 48602224S Axle clamp ri. With inner tube | Axle clamp ri. With inner tube | 1 | $468.15 | Available | 1 |
| 2 | 48602223S Axle clamp le. With inner tube | Axle clamp le. With inner tube | 1 | $488.61 | Available | 1 |
| 3 | 48602096 fork outer tube 49.13x577 dt54 | fork outer tube 49.13x577 dt54 | 2 | $302.82 | Available | 2 |
| 5 | 48600456 Washer 35x43x2,5 plastic | Washer 35x43x2,5 plastic | — | $2.41 | Available | 1 |
| 5 | 48600457 Preload bush 35x43x3,5 | Preload bush 35x43x3,5 | — | $2.41 | Available | 1 |
| 5 | 48600458 Washer 35x43x1,5 plastic | Washer 35x43x1,5 plastic | — | $2.41 | Available | 1 |
| 6 | S043400000S0300 Basevalve cpl. | Basevalve cpl. | 2 | $149.59 | Available | 2 |
| 7 | S418900003S0100 Pressure tank M38x0.5 cmpl. | Pressure tank M38x0.5 cmpl. | 2 | $231.43 | Backorder — Restocking | 2 |
| 8 | S53360000500000 Tube 35x38x267 | Tube 35x38x267 | 2 | $60.82 | Available | 2 |
| 9 | 48600752 Washer 33,5x38x1,5 | Washer 33,5x38x1,5 | 2 | $9.99 | Available | 2 |
| 10 | S82890000200000 Spring seat 33.5x44.5x18.5 | Spring seat 33.5x44.5x18.5 | 2 | $9.89 | Available | 2 |
| 11 | S82890000500000 Spring pad D44 Clip | Spring pad D44 Clip | 2 | $46.85 | Available | 2 |
| 12 | S639200001000FA Fork protection ring 59,8mm | Fork protection ring 59,8mm | 2 | $2.41 | Available | 2 |
| 13 | R14047T Guide bushing set fork 48mm | Guide bushing set fork 48mm | — | $32.99 | Available | 1 |
| 14 | RP10048T Seal kit 48mm SKF black | Seal kit 48mm SKF black | — | $78.53 | Available | 1 |
| 15 | 48602007 Stroke indicator 48mm red | Stroke indicator 48mm red | 2 | $4.83 | Available | 2 |
| 16 | S501200025S0000 pistonrod 12,0x380,55 cpl. | pistonrod 12,0x380,55 cpl. | 2 | $242.21 | Out of Stock | Notify Me |
| 17 | 48602128 Nut M6 h5,4 SW10 | Nut M6 h5,4 SW10 | 2 | $1.20 | Available | 2 |
| 18 | 40540486 Nut M6x0,5 h6,5 WAF10 rebound | Nut M6x0,5 h6,5 WAF10 rebound | 2 | $4.83 | Available | 2 |
| 19 | RP10054T Repair kit piston CC spring fo | Repair kit piston CC spring fo | — | $46.30 | Available | 1 |
| 20 | 48600578S Spring (13,9) 37-32 rebound cp | Spring (13,9) 37-32 rebound cp | 2 | $4.83 | Available | 2 |
| 21 | S408800002S0000 Screw cap M24.5x1 cmpl. | Screw cap M24.5x1 cmpl. | 2 | $30.35 | Backorder — Restocking | 2 |
| 23 | 48601484S Adjustment screw slot M20x1 cp | Adjustment screw slot M20x1 cp | 2 | $49.82 | Available | 2 |
| 24 | 0025080256 HH collar screw M8x25 | HH collar screw M8x25 | 4 | $2.41 | Available | 4 |
| 25 | RP10029T adjuster kit screw cap compres | adjuster kit screw cap compres | — | $8.68 | Available | 1 |
| 26 | 52000318SET Sticker set, XACT CC 238x182.5 | Sticker set, XACT CC 238x182.5 | 1 | $37.06 | Available | 1 |
| 97 | T14034 Fuchs grease IPR (250g) | Fuchs grease IPR (250g) | 1 | $40.69 | Available | 1 |
| 98 | 48601166S1 Fork Fluid Viscosity 4.0 5L | Fork Fluid Viscosity 4.0 5L | 1 | $175.99 | Available | 1 |
| 99 | RP10055T Seal kit CC spring fork | Seal kit CC spring fork | — | $37.28 | Backorder — Restocking | 1 |
| 4 | S809900048S0000 main spring (43.8) 5.2-450 for | main spring (43.8) 5.2-450 for | — | $164.99 | Available | 1 |
| 4 | S809900047S0000 main spring (43.8) 5.0-450 for | main spring (43.8) 5.0-450 for | — | $164.99 | Available | 1 |
| 4 | S809900046S0000 main spring (43.8) 4.8-450 for | main spring (43.8) 4.8-450 for | — | $164.99 | Available | 1 |
