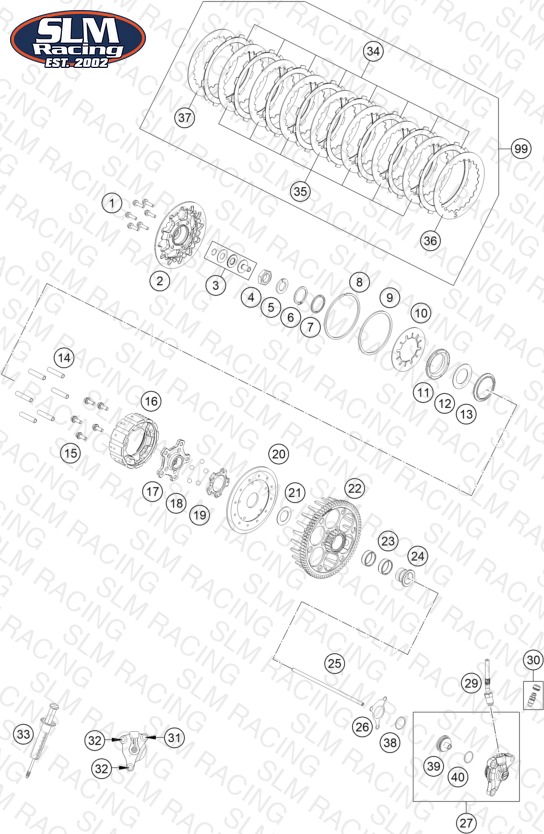

CLUTCH
Parts (40)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 79532186000 Distance screw M5X19.5 | Distance screw M5X19.5 | 6 | $6.15 | Available | 6 |
| 2 | 79532103000 Pressure plate | Pressure plate | 1 | $582.44 | Available | 1 |
| 3 | 78132057144 PRESSURE PIECE CPL. | PRESSURE PIECE CPL. | 1 | $36.18 | Available | 1 |
| 4 | 0009361800800S Hex nut DIN0936-M18x1.5 right | Hex nut DIN0936-M18x1.5 right | 1 | $8.68 | Available | 1 |
| 5 | 58132072000 LOCK WASHER VSK 18 | LOCK WASHER VSK 18 | 1 | $2.99 | Available | 1 |
| 6 | 0471300152 Circlip | Circlip | 1 | $3.99 | Available | 1 |
| 7 | 79532183000 Distance ring 30X36X2 | Distance ring 30X36X2 | 1 | $10.11 | Available | 1 |
| 8 | 0417900250 Circlip | Circlip | 1 | $7.69 | Available | 1 |
| 9 | 79532185000 Locking ring 88 | Locking ring 88 | 1 | $87.55 | Available | 1 |
| 10 | 79532105000 Main spring 1235N | Main spring 1235N | 1 | $78.64 | Available | 1 |
| 11 | 79532102050 Clamp hub 5mm | Clamp hub 5mm | 1 | $152.67 | Available | 1 |
| 12 | 79532182000 Torque limiter spring 1100N | Torque limiter spring 1100N | 1 | $52.57 | Available | 1 |
| 13 | 79532181000 Release ring | Release ring | 1 | $124.73 | Available | 1 |
| 14 | 77232004000 DRIVING SLEEVE D=7,95 L=38 | DRIVING SLEEVE D=7,95 L=38 | 6 | $3.99 | Available | 6 |
| 15 | 79532107000 Bolt M6X14 | Bolt M6X14 | 5 | $2.99 | Available | 5 |
| 16 | 79532102010 Inner hub | Inner hub | 1 | $554.94 | Available | 1 |
| 17 | 79532102020 Hub carrier | Hub carrier | 1 | $832.69 | Available | 1 |
| 18 | 79532168000 Ball | Ball | 5 | $1.99 | Available | 5 |
| 19 | 79532102030 Ramp insert 30° | Ramp insert 30° | 1 | $222.08 | Available | 1 |
| 20 | 79532102040 Back plate insert | Back plate insert | 1 | $416.89 | Available | 1 |
| 21 | 79532120000 Thrust washer | Thrust washer | 1 | $34.53 | Available | 1 |
| 22 | 79432001076 CLUTCH CAGE | CLUTCH CAGE | 1 | $324.93 | Available | 1 |
| 23 | 0405252910 NEEDLE BEAR K 25X29X10 | NEEDLE BEAR K 25X29X10 | 2 | $10.44 | Available | 2 |
| 24 | 78132015100 COLLARSLEEVE | COLLARSLEEVE | 1 | $31.67 | Available | 1 |
| 25 | 79432054000 PUSH ROD | PUSH ROD | 1 | $23.20 | Available | 1 |
| 26 | 59032065100 GASKET F. OUTPUT CYLINDER | GASKET F. OUTPUT CYLINDER | 1 | $6.59 | Available | 1 |
| 27 | 26632061044 Slave cylinder Dot cmpl. 27mm | Slave cylinder Dot cmpl. 27mm | 1 | $220.76 | Available | 1 |
| 29 | 26132063000 Clutchpipe | Clutchpipe | 1 | $159.16 | Available | 1 |
| 30 | 54732064000 BLEEDER SCREW WITH CAP | BLEEDER SCREW WITH CAP | 1 | $25.84 | Available | 1 |
| 31 | 0025060306 HH collar screw M6x30 TX30 | HH collar screw M6x30 TX30 | 1 | $3.99 | Available | 1 |
| 32 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 2 | $3.99 | Available | 2 |
| 33 | 50329050000 VENT INJEKTION HYDR. CLUTCH | VENT INJEKTION HYDR. CLUTCH | 1 | $63.24 | Available | 1 |
| 34 | 79532011000 Lining disc 1,95mm | Lining disc 1,95mm | 8 | $26.39 | Available | 8 |
| 35 | 59032010200 INTERMEDIATE DISC 1,4MM 2002 | INTERMEDIATE DISC 1,4MM 2002 | 7 | $12.86 | Available | 7 |
| 36 | 78932010000 INTERMEDIATE DISC 1MM | INTERMEDIATE DISC 1MM | 1 | $14.18 | Available | 1 |
| 37 | 59032010100 INTERMEDIATE DISC 1MM 2002 | INTERMEDIATE DISC 1MM 2002 | 1 | $11.54 | Available | 1 |
| 38 | 0770300015 O-ring 30x1.5 NBR 70 | O-ring 30x1.5 NBR 70 | 1 | $2.99 | Available | 1 |
| 39 | 26632066000 PISTONKIT OUTPUT ZYL. DOT 27MM | PISTONKIT OUTPUT ZYL. DOT 27MM | 1 | $104.49 | Available | 1 |
| 40 | 26632067000 O-Ring 23,52x1,78 EPDM | O-Ring 23,52x1,78 EPDM | 1 | $4.99 | Available | 1 |
| 99 | 79532010033 Clutch plate pack | Clutch plate pack | 1 | $246.06 | Available | 1 |
