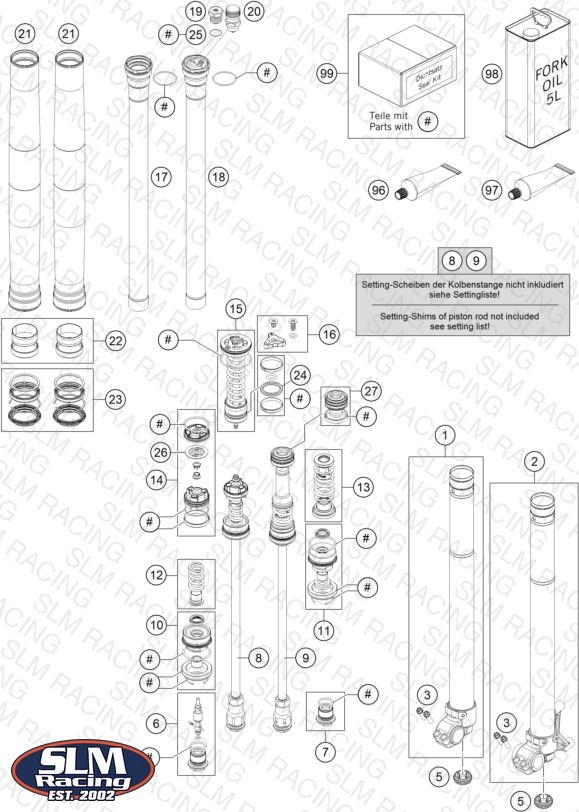

FRONT FORK DISASSEMBLED
Parts (30)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 48600864S2 Axle clamp right + tube cpl. | Axle clamp right + tube cpl. | 1 | — | Check availability | |
| 2 | 48601699S1 Axel clamp left + tube cpl. | Axel clamp left + tube cpl. | 1 | — | Check availability | |
| 3 | 0025080256 HH collar screw M8x25 | HH collar screw M8x25 | 4 | — | Check availability | |
| 5 | 48600692 Rubber cap 26,4x11 | Rubber cap 26,4x11 | 2 | — | Check availability | |
| 6 | 48601484S Adjustment screw slot M20x1 cp | Adjustment screw slot M20x1 cp | 1 | — | Check availability | |
| 7 | 48601533S HH collar screw M20x1x18 cpl. | HH collar screw M20x1x18 cpl. | 1 | — | Check availability | |
| 8 | 48601697S2 Piston rod 12x355 cmpl. | Piston rod 12x355 cmpl. | 1 | — | Check availability | |
| 9 | 48601695S1 Piston rod left D12 M12x1 M11, | Piston rod left D12 M12x1 M11, | 1 | — | Check availability | |
| 10 | 48601462S1 SCREW SLEEVE OIL CPL. | SCREW SLEEVE OIL CPL. | 1 | — | Check availability | View Details |
| 11 | 48601452S1 Screw sleeve M35,5x0,8 | Screw sleeve M35,5x0,8 | 1 | — | Check availability | View Details |
| 12 | 48600578S Spring (13,9) 37-32 rebound cp | Spring (13,9) 37-32 rebound cp | 1 | — | Check availability | |
| 13 | 48601820S Spring (22) 60-30 rebound cpl. | Spring (22) 60-30 rebound cpl. | 1 | — | Check availability | |
| 14 | RP10015 Piston set air fork D34 MY18 | Piston set air fork D34 MY18 | 1 | — | Check availability | |
| 15 | 48601485S Compression cpl. | Compression cpl. | 1 | — | Check availability | |
| 16 | R14062 SMALL PARTS KIT SCREW CAP | SMALL PARTS KIT SCREW CAP | 1 | — | Check availability | View Details |
| 17 | 48601454S1 SCREW CAP + TUBE CPL. R/S | SCREW CAP + TUBE CPL. R/S | 1 | — | Check availability | |
| 18 | 48601453S1 SCREW CAP + TUBE CPL. L/S | SCREW CAP + TUBE CPL. L/S | 1 | — | Check availability | |
| 19 | 48601495 ISA lock screw M8x1 l7 Alu | ISA lock screw M8x1 l7 Alu | 1 | — | Check availability | |
| 20 | 48601494S Schrader valve M8x1 cmpl. | Schrader valve M8x1 cmpl. | 1 | — | Check availability | View Details |
| 21 | 48600736 Fork outer tube 49,13x577 dt54 | Fork outer tube 49,13x577 dt54 | 2 | — | Check availability | |
| 22 | R14047 Guide bushing set fork 48mm | Guide bushing set fork 48mm | 1 | — | Check availability | View Details |
| 23 | R14046 Repair kit fork 48mm | Repair kit fork 48mm | 1 | — | Check availability | View Details |
| 24 | 04100002 X-ring 26,57x3,53 FKM80 | X-ring 26,57x3,53 FKM80 | 1 | — | Check availability | |
| 25 | 48600044 O-ring 6x1,5 NBR70 | O-ring 6x1,5 NBR70 | 1 | — | Check availability | |
| 26 | 48601459 Washer check valve 6x31x0,4 | Washer check valve 6x31x0,4 | 1 | — | Check availability | |
| 96 | T14034 Fuchs grease IPR (250g) | Fuchs grease IPR (250g) | 1 | — | Check availability | |
| 97 | 00062010051 CENTOPLEX 2 EP - 45g MP-GREASE | CENTOPLEX 2 EP - 45g MP-GREASE | 1 | — | Check availability | View Details |
| 98 | 48601166S1 Fork Fluid Viscosity 4.0 5L | Fork Fluid Viscosity 4.0 5L | 1 | — | Check availability | |
| 99 | R14060 SEALING KIT | SEALING KIT | 1 | — | Check availability | View Details |
| 27 | 48601628S Piston 34x35.4 mainpiston Freu | Piston 34x35.4 mainpiston Freu | 1 | — | Check availability | View Details |
