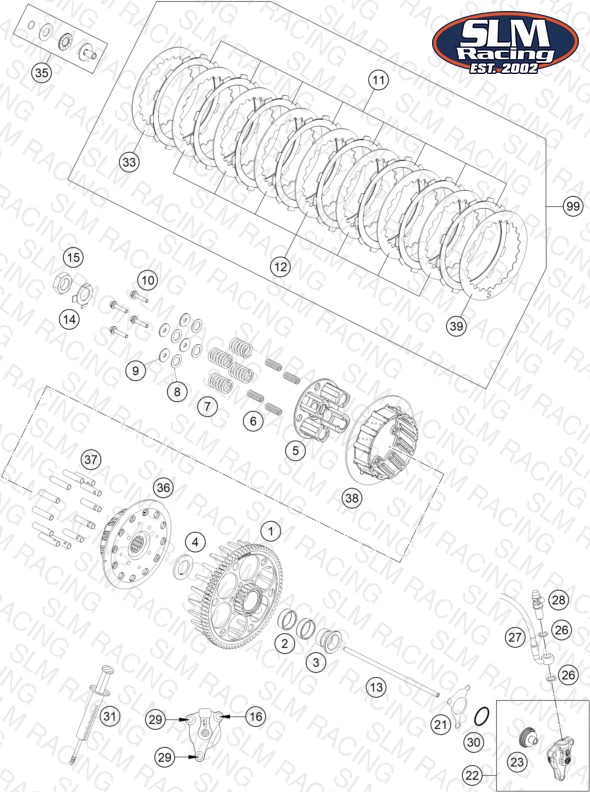

CLUTCH
Parts (32)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 79432001076 CLUTCH CAGE | CLUTCH CAGE | 1 | — | Check availability | View Details |
| 2 | 0405252910 NEEDLE BEAR K 25X29X10 | NEEDLE BEAR K 25X29X10 | 2 | — | Check availability | |
| 3 | 78132015100 COLLARSLEEVE | COLLARSLEEVE | 1 | — | Check availability | |
| 4 | 78932009000 WASHER 22 X 36,5 X 3 | WASHER 22 X 36,5 X 3 | 1 | — | Check availability | |
| 5 | 78932103000 PRESSURE PLATE | PRESSURE PLATE | 1 | — | Check availability | |
| 6 | 59032004200 OPENING SPRING APTC 04 | OPENING SPRING APTC 04 | 4 | — | Check availability | |
| 7 | 59032005100 CLUTCH SPRING APTC 2004 | CLUTCH SPRING APTC 2004 | 4 | — | Check availability | |
| 8 | 59032000101 WASHER 20 X 12,5 X 1 | WASHER 20 X 12,5 X 1 | 4 | — | Check availability | |
| 9 | 59032006100 WASHER 5,5X20X1,5 | WASHER 5,5X20X1,5 | 4 | — | Check availability | |
| 10 | 0025050256 HH COLLAR SCREW M5X25 ISA30 | HH COLLAR SCREW M5X25 ISA30 | 4 | — | Check availability | |
| 11 | 59032011100 LINING DISC 2MM 04 | LINING DISC 2MM 04 | 8 | — | Check availability | View Details |
| 12 | 59032010200 INTERMEDIATE DISC 1,4MM 2002 | INTERMEDIATE DISC 1,4MM 2002 | 7 | — | Check availability | |
| 13 | 79432054000 PUSH ROD | PUSH ROD | 1 | — | Check availability | |
| 14 | 78132018000 TAB WASHER | TAB WASHER | 1 | — | Check availability | View Details |
| 15 | 0936181505 HEXAGON NUT DIN0936-M18X1,5 R. | HEXAGON NUT DIN0936-M18X1,5 R. | 1 | — | Check availability | |
| 16 | 0025060306 HH collar screw M6x30 TX30 | HH collar screw M6x30 TX30 | 1 | — | Check availability | |
| 21 | 59032065000 GASKET FOR SLAVE CYLINDER | GASKET FOR SLAVE CYLINDER | 1 | — | Check availability | View Details |
| 22 | 26632061044 Slave cylinder Dot cmpl. 27mm | Slave cylinder Dot cmpl. 27mm | 1 | — | Check availability | |
| 26 | 0603100141 sealing ring DIN 7603 10x14x1 | sealing ring DIN 7603 10x14x1 | 2 | — | Check availability | |
| 27 | 81232063000 CLUTCH PIPE 09 | CLUTCH PIPE 09 | 1 | — | Check availability | |
| 28 | 59032062000 HOLLOW SCREW + COPPER GASKET | HOLLOW SCREW + COPPER GASKET | 1 | — | Check availability | |
| 29 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 2 | — | Check availability | |
| 31 | 50329050000 VENT INJEKTION HYDR. CLUTCH | VENT INJEKTION HYDR. CLUTCH | 1 | — | Check availability | |
| 33 | 59032010100 INTERMEDIATE DISC 1MM 2002 | INTERMEDIATE DISC 1MM 2002 | 1 | — | Check availability | |
| 35 | 78132057144 PRESSURE PIECE CPL. | PRESSURE PIECE CPL. | 1 | — | Check availability | |
| 36 | 78932102010 HUB INSIDE | HUB INSIDE | 1 | — | Check availability | |
| 37 | 78932104000 SLEEVE | SLEEVE | 12 | — | Check availability | |
| 38 | 78932102020 HUB OUTSIDE | HUB OUTSIDE | 1 | — | Check availability | |
| 39 | 78932010000 INTERMEDIATE DISC 1MM | INTERMEDIATE DISC 1MM | 1 | — | Check availability | |
| 99 | 78932010033 CLUTCH DISC KIT | CLUTCH DISC KIT | 1 | — | Check availability | View Details |
| 30 | 0770300015 O-ring 30x1.5 NBR 70 | O-ring 30x1.5 NBR 70 | 1 | — | Check availability | |
| 23 | 26632066000 PISTONKIT OUTPUT ZYL. DOT 27MM | PISTONKIT OUTPUT ZYL. DOT 27MM | 1 | — | Check availability |
