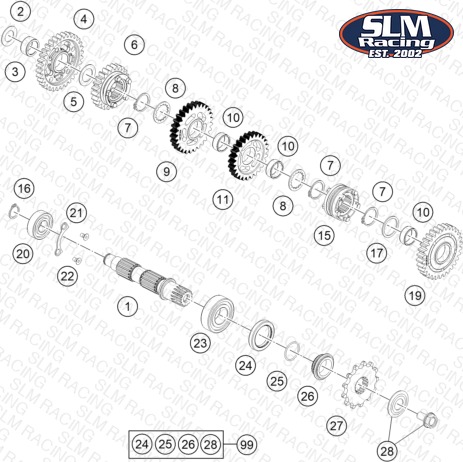

TRANSMISSION II - COUNTERSHAFT
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 78033010000 COUNTERSHAFT 08 | COUNTERSHAFT 08 | 1 | $117.47 | Available | 1 |
| 2 | 56033030000 STOP DISC 17,2X30X1 | STOP DISC 17,2X30X1 | 1 | $4.99 | Available | 1 |
| 3 | 0405202612 NEEDLE BEARING K 20X26X12 | NEEDLE BEARING K 20X26X12 | 1 | $12.86 | Available | 1 |
| 4 | 78933011000 IDLER GEAR 1.G. | IDLER GEAR 1.G. | 1 | $114.28 | Available | 1 |
| 5 | 59033080000 Shim 20x31.9x1 | Shim 20x31.9x1 | 1 | $2.41 | Available | 1 |
| 6 | 78933015000 SLIDING GEAR 5.G. | SLIDING GEAR 5.G. | 1 | $107.46 | Available | 1 |
| 7 | 0471250120 CIRCLIP DIN0471-25X1,2 | CIRCLIP DIN0471-25X1,2 | 3 | $2.99 | Available | 3 |
| 8 | 78033033000 STOP DISK 23 X 32 X 1,5 | STOP DISK 23 X 32 X 1,5 | 2 | $3.99 | Available | 2 |
| 9 | 78933013000 IDLER GEAR 3.G. | IDLER GEAR 3.G. | 1 | $112.41 | Available | 1 |
| 10 | 0405222611 NEEDLE BEAR.K 22X26X10 DIVIDED | NEEDLE BEAR.K 22X26X10 DIVIDED | 3 | $13.74 | Available | 3 |
| 11 | 78933014000 IDLER GEAR 4.G. | IDLER GEAR 4.G. | 1 | $108.45 | Available | 1 |
| 17 | 78033031000 STOP DISK 26 X 32 X 1,5 | STOP DISK 26 X 32 X 1,5 | 1 | $3.99 | Available | 1 |
| 19 | 78933012000 IDLER GEAR 2.G. | IDLER GEAR 2.G. | 1 | $111.75 | Out of Stock | Notify Me |
| 15 | 78933018000 SHIFT COLLAR | SHIFT COLLAR | 1 | — | Obsolete | View Details |
| 20 | 0625062035 BALL BEARING 6203 JR2 C3 | BALL BEARING 6203 JR2 C3 | 1 | $17.04 | Available | 1 |
| 21 | 78033132000 TAB WASHER BEARING COUNT.SHAFT | TAB WASHER BEARING COUNT.SHAFT | 1 | $6.15 | Available | 1 |
| 22 | 0019050106 INT TORX FLAT HEAD M5X10 10.9 | INT TORX FLAT HEAD M5X10 10.9 | 2 | $2.99 | Available | 2 |
| 23 | 49030023000 cylindrical roller bearing NJ2 | cylindrical roller bearing NJ2 | 1 | $87.55 | Backorder — Restocking | 1 |
| 24 | 0760324571 SHAFT SEAL RING 32X45X7 BSLNBR | SHAFT SEAL RING 32X45X7 BSLNBR | 1 | $6.15 | Available | 1 |
| 25 | 0770020220 O-RING 25,12X1,78 NBR70 | O-RING 25,12X1,78 NBR70 | 1 | $3.99 | Available | 1 |
| 26 | 78133014000 SPACER SLEEVE COUNTER | SPACER SLEEVE COUNTER | 1 | $33.43 | Available | 1 |
| 27 | 50033029013 FRONT SPROCKET 13-T | FRONT SPROCKET 13-T | — | $36.40 | Available | 1 |
| 27 | 50033029014 FRONT SPROCKET 14-T | FRONT SPROCKET 14-T | 1 | $36.40 | Available | 1 |
| 27 | 50033029015 FRONT SPROCKET 15-T | FRONT SPROCKET 15-T | — | $31.89 | Available | 1 |
| 28 | 59033034044 SCREW 10.9+SPRING WASHER | SCREW 10.9+SPRING WASHER | 1 | $9.23 | Available | 1 |
| 99 | 00050000941 COUNTER SHAFT REP.KIT 4 STROKE | COUNTER SHAFT REP.KIT 4 STROKE | — | $61.04 | Available | 1 |
| 16 | 0471170015 CIRCLIP DIN 0471-17X1, 5 | CIRCLIP DIN 0471-17X1, 5 | 1 | $1.99 | Available | 1 |
