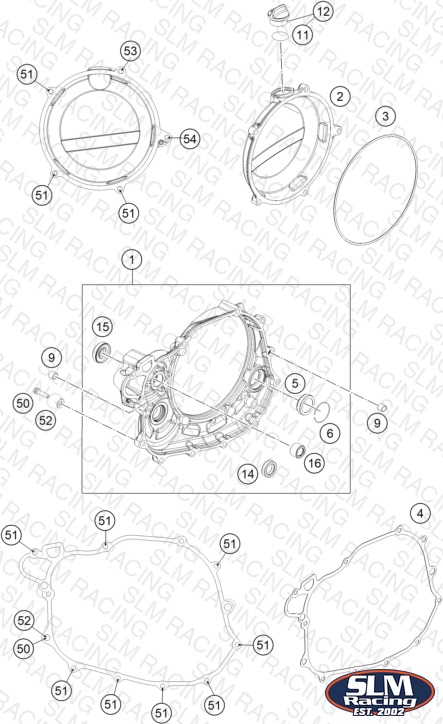

CLUTCH COVER
Parts (17)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 78130101044 CLUTCH COVER CPL. | CLUTCH COVER CPL. | 1 | — | Obsolete | View Details |
| 2 | 78130626000KA OUTER CLUTCH COVER ''HQV'' | OUTER CLUTCH COVER ''HQV'' | 1 | $106.03 | Available | 1 |
| 4 | 78130125000 CLUTCH COVER GASKET | CLUTCH COVER GASKET | 1 | $26.28 | Available | 1 |
| 5 | 78030095100 OIL LEVEL GLASS VITON | OIL LEVEL GLASS VITON | 1 | $16.49 | Available | 1 |
| 6 | 61030019050 CIRCLIP OIL LEVEL GLASS 03 | CIRCLIP OIL LEVEL GLASS 03 | 1 | $1.99 | Available | 1 |
| 9 | 49030090000 DOWEL 9,8 X 7 X 10 | DOWEL 9,8 X 7 X 10 | 2 | $2.99 | Available | 2 |
| 3 | 78130027000 GASKET - CLUTCH OUTER COVER | GASKET - CLUTCH OUTER COVER | 1 | $14.84 | Available | 1 |
| 11 | 0770191015 O-RING 19,00X3,00 NBR | O-RING 19,00X3,00 NBR | 1 | $2.99 | Available | 1 |
| 12 | 58030120000 OIL FILLER CAP M24x3 W. O-R | OIL FILLER CAP M24x3 W. O-R | 1 | $9.45 | Available | 1 |
| 14 | 0760142460 radial shaft seal 14x24x6 B | radial shaft seal 14x24x6 B | 1 | $10.88 | Available | 1 |
| 15 | 0760123073 SHAFT SEAL RING 12X30X7 PTFE | SHAFT SEAL RING 12X30X7 PTFE | 1 | $14.73 | Available | 1 |
| 16 | 0618121912 NEEDLE BUSH NK1212 | NEEDLE BUSH NK1212 | 1 | $23.64 | Available | 1 |
| 50 | 78030080000 LOCATING SCREW | LOCATING SCREW | 1 | $4.99 | Available | 1 |
| 51 | 0025060256 HH collar screw M6x25 TX30 | HH collar screw M6x25 TX30 | 11 | $3.99 | Available | 11 |
| 52 | 58030081000 CU-SEAL RING 8 X 14 X 3 | CU-SEAL RING 8 X 14 X 3 | 1 | $2.99 | Available | 1 |
| 53 | 0025060556 HH collar screw M6x55 TX30 | HH collar screw M6x55 TX30 | 1 | $3.99 | Available | 1 |
| 54 | 0025060606 HH collar screw M6x60 TX30 | HH collar screw M6x60 TX30 | 1 | $3.99 | Available | 1 |
