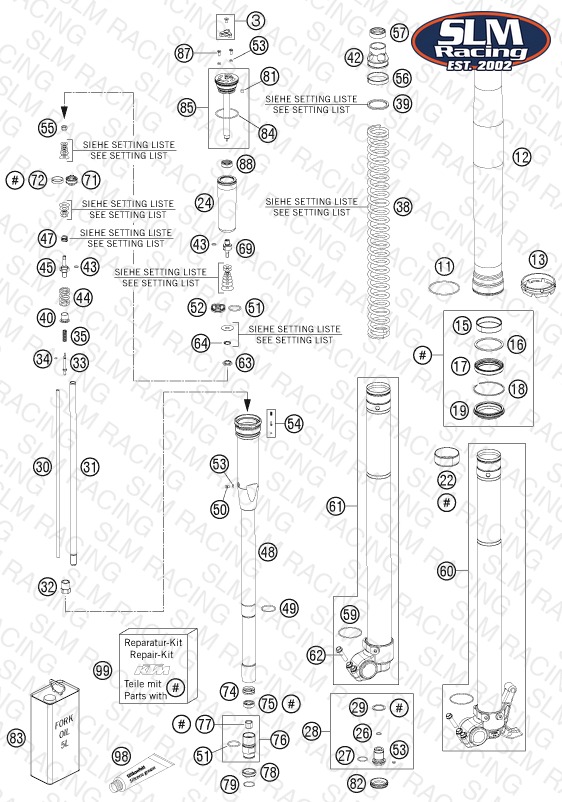

FRONT FORK DISASSEMBLED

← →

Parts (67)

#	Part Number	Description	Qty	Price	Status
15	48601009 Guide bushing 48x52x12	Guide bushing 48x52x12	2	$14.18	Available	2
16	48600013 Supportwasher 50x57,6x1,5	Supportwasher 50x57,6x1,5	2	$3.62	Available	2
19	48600968 DUST SEAL DL D48 SKF	DUST SEAL DL D48 SKF	2	$15.06	Available	2
22	48601008 Guide bushing 47x49x20	Guide bushing 47x49x20	2	$14.18	Available	2
24	48600281 Membrane 11,2x37x112	Membrane 11,2x37x112	2	$11.65	Available	2
13	48600698 Fork protection ring 62,1mm	Fork protection ring 62,1mm	2	$10.99	Available	2
17	48600969 Shaft seal SKF 48x57,9x9 grün	Shaft seal SKF 48x57,9x9 grün	2	$16.05	Available	2
18	48600070 Snap ring SB58x1,5 acc drawing	Snap ring SB58x1,5 acc drawing	2	$2.41	Available	2
27	46810811 O-ring 17x2 70 Sh NBR black	O-ring 17x2 70 Sh NBR black	2	$1.20	Available	2
3	48600811S Adjuster compression cpl.	Adjuster compression cpl.	2	$4.83	Available	2
12	48600736 Fork outer tube 49,13x577 dt54	Fork outer tube 49,13x577 dt54	2	$543.94	Available	2
26	48600301 O-ring 9,5x1,5 NBR70 yellow	O-ring 9,5x1,5 NBR70 yellow	2	$1.20	Available	2
28	48600280S SCREW BUSH M20X1 L=33 CPL.	SCREW BUSH M20X1 L=33 CPL.	2	$71.05	Available	2
29	48600275 Copper disc 20,5x26x1	Copper disc 20,5x26x1	2	$2.41	Available	2
30	48600726 adjusting tube 6x351	adjusting tube 6x351	2	$20.45	Available	2
31	48600723 Piston rod 12x385	Piston rod 12x385	2	—	Obsolete	View Details
32	48600459 Lock nut M12x1 h23 WAF17	Lock nut M12x1 h23 WAF17	2	$11.65	Available	2
33	48600277 Needle 4,5x43,6	Needle 4,5x43,6	2	$6.48	Available	2
34	48600298 O-ring 2x1,5 NBR70	O-ring 2x1,5 NBR70	2	$1.20	Available	2
35	48600444 Spring (5,4) 4-23 rebound	Spring (5,4) 4-23 rebound	2	$3.62	Available	2
38	91410054S SPRING 4,8 N/MM SET D=5,25MM	SPRING 4,8 N/MM SET D=5,25MM	—	—	Obsolete	View Details
38	91410058S SPRING D43.2 L465 5N/MM SET	SPRING D43.2 L465 5N/MM SET	—	—	Obsolete	View Details
39	48600456 Washer 35x43x2,5 plastic	Washer 35x43x2,5 plastic	—	$2.41	Available	1
39	48600457 Preload bush 35x43x3,5	Preload bush 35x43x3,5	—	$2.41	Available	1
39	48600458 Washer 35x43x1,5 plastic	Washer 35x43x1,5 plastic	—	$2.41	Available	1
40	48600525 Spring retainer 12,3x19x1,25 r	Spring retainer 12,3x19x1,25 r	2	$2.41	Available	2
42	48600520 Spring support ring 27,08x42x4	Spring support ring 27,08x42x4	2	$78.75	Available	2
43	48600299 O-ring 6x1,2 NBR70	O-ring 6x1,2 NBR70	4	$1.20	Available	4
44	48600578 Spring (13,9) 37-32 rebound	Spring (13,9) 37-32 rebound	2	$2.41	Available	2
45	48600576 Tap 6x46 rebound	Tap 6x46 rebound	2	$14.99	Available	2
47	48600382 Spring (11,4) 0,4-8 valve	Spring (11,4) 0,4-8 valve	2	$2.41	Available	2
47	35480377 Spring (11,7) 1,5-8 valve	Spring (11,7) 1,5-8 valve	2	$2.41	Available	2
48	48600519S3 reed holder incl. PIN SET	reed holder incl. PIN SET	2	$339.49	Out of Stock	Notify Me
49	48600512 Round-wire snap ring 28,5x1,5	Round-wire snap ring 28,5x1,5	2	$5.93	Available	2
50	48600542 HS countersunk head screw M4x6	HS countersunk head screw M4x6	2	$3.62	Available	2
51	46811499 O-ring 21x2 NBR70	O-ring 21x2 NBR70	4	$1.20	Available	4
52	48600047 Piston 6x27,8x9 compression	Piston 6x27,8x9 compression	2	$11.54	Available	2
53	50180222 O-ring 4x1,5 NBR70	O-ring 4x1,5 NBR70	8	$1.20	Available	8
54	48600977S PIN KIT	PIN KIT	2	$23.75	Available	2
55	40540486 Nut M6x0,5 h6,5 WAF10 rebound	Nut M6x0,5 h6,5 WAF10 rebound	2	$4.83	Available	2
56	48600744 Guiding ring 39x44x8	Guiding ring 39x44x8	2	$1.20	Available	2
57	48600577 Spring guide ring 27,08x32x9,5	Spring guide ring 27,08x32x9,5	2	$6.48	Out of Stock	Notify Me
59	48600048 O-ring 46x2 NBR70 siliconized	O-ring 46x2 NBR70 siliconized	2	$3.62	Available	2
60	48600865S2 Fork shoe left + tube cmpl.	Fork shoe left + tube cmpl.	1	—	Obsolete	View Details
61	48600864S1 fork shoe ri. + tube cmpl.	fork shoe ri. + tube cmpl.	1	—	Obsolete	View Details
62	0025080256 HH collar screw M8x25	HH collar screw M8x25	4	$2.41	Available	4
63	48600163 Nut valve M6x0,5 h6,5 WAF17	Nut valve M6x0,5 h6,5 WAF17	2	$3.62	Available	2
64	48600202 Spring (8,5) l6,5 valve	Spring (8,5) l6,5 valve	2	$2.41	Available	2
69	48600509 Tap 6x38 compression	Tap 6x38 compression	2	$12.20	Available	2
71	48600575 Piston 6,07x22,7x13	Piston 6,07x22,7x13	2	$17.37	Available	2
72	48600455 Piston ring 21x23x5	Piston ring 21x23x5	2	$5.29	Available	2
74	48601056 Spring retainer 13,5x21,9x2,65	Spring retainer 13,5x21,9x2,65	2	$7.58	Available	2
75	48600471 PISTON ROD SEALING	PISTON ROD SEALING	2	$7.14	Available	2
76	48601055S SCREW SLEEVE M24,5X1 CPL.	SCREW SLEEVE M24,5X1 CPL.	2	$50.81	Available	2
77	48600430 Guide bushing 12x14x10	Guide bushing 12x14x10	2	$7.58	Available	2
78	48600709 Check valve locking R4	Check valve locking R4	2	$21.22	Available	2
79	48600446 Round-wire snap ring 24x2	Round-wire snap ring 24x2	2	$2.41	Out of Stock	Notify Me
81	15080017 Silicon plug 60Sh	Silicon plug 60Sh	2	$6.15	Available	2
82	48600692 Rubber cap 26,4x11	Rubber cap 26,4x11	2	$3.62	Available	2
83	48601166S1 Fork Fluid Viscosity 4.0 5L	Fork Fluid Viscosity 4.0 5L	1	$175.99	Available	1
84	40140024 O-ring 43x2 NBR70 siliconized	O-ring 43x2 NBR70 siliconized	2	$4.83	Available	2
85	48600516S1 screw cap M41x1 cmpl.	screw cap M41x1 cmpl.	2	$126.71	Available	2
87	48600526 Cross flat head screw M4x10	Cross flat head screw M4x10	4	$2.41	Available	4
88	48600514 Clamping ring bladder 11,31x22	Clamping ring bladder 11,31x22	2	$32.44	Available	2
98	T511 SILICONE GREASE F. DUST STRI	SILICONE GREASE F. DUST STRI	1	$40.69	Available	1
99	R14020 SXS SERVICE KIT	SXS SERVICE KIT	1	$124.95	Available	1
11	48600016 Round-wire snap ring 48x2	Round-wire snap ring 48x2	2	$3.62	Available	2
