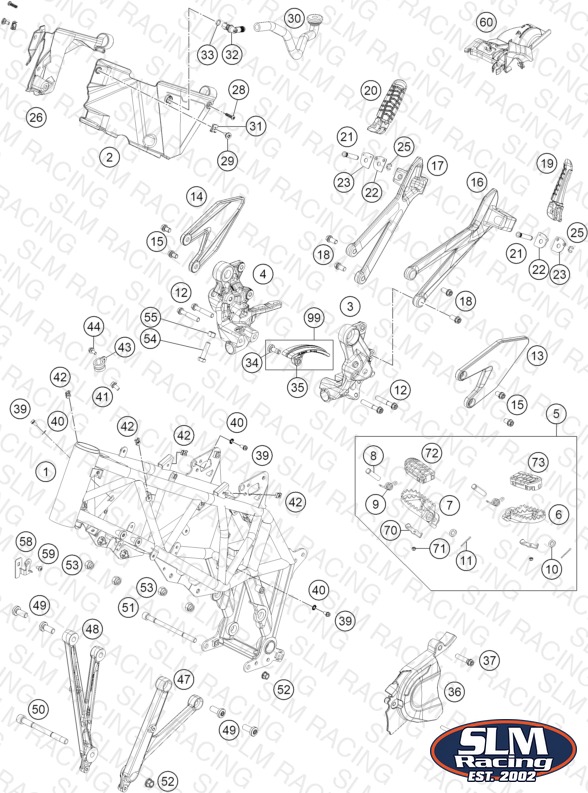

FRAME
Parts (58)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A60503001000C1 Frame | Frame | 1 | $1821.79 | Out of Stock | Notify Me |
| 2 | A60603085000 Frame cover left | Frame cover left | 1 | $37.89 | Available | 1 |
| 3 | 76903038044011 Footpeg bracket front left cmp | Footpeg bracket front left cmp | 1 | $154.59 | Available | 1 |
| 4 | 76903039044011 Footpeg bracket front right cm | Footpeg bracket front right cm | 1 | $229.89 | Available | 1 |
| 5 | 60003040133 FOOTPEG LS+RS CPL. | FOOTPEG LS+RS CPL. | 1 | $173.02 | Available | 1 |
| 6 | 78003040050 FOOTREST L/S 08 | FOOTREST L/S 08 | 1 | $51.36 | Available | 1 |
| 7 | 78003041050 FOOTREST R/S 08 | FOOTREST R/S 08 | 1 | $51.36 | Available | 1 |
| 8 | 54803044000 PIN FOR FOOT PED 51.5X9.8 MM | PIN FOR FOOT PED 51.5X9.8 MM | 2 | $14.62 | Available | 2 |
| 9 | 54603041000 FOOTREST SPRING L/S & R/S | FOOTREST SPRING L/S & R/S | 2 | $6.15 | Available | 2 |
| 10 | 0125100003 washer DIN 125 A 10.5 | washer DIN 125 A 10.5 | 2 | $2.99 | Available | 2 |
| 11 | 0094032253 PIN DIN0094-3,2X25 STEEL | PIN DIN0094-3,2X25 STEEL | 2 | $1.99 | Available | 2 |
| 12 | 0025080456 HH collar screw M8x45 TX40 | HH collar screw M8x45 TX40 | 4 | $4.99 | Available | 4 |
| 13 | 27003138050 HEEL PROTECTOR LS | HEEL PROTECTOR LS | 1 | $12.20 | Available | 1 |
| 14 | 27003139050 HEEL PROTECTOR RS | HEEL PROTECTOR RS | 1 | $12.20 | Available | 1 |
| 15 | 0025080126 HH collar screw M8x12 TX40 | HH collar screw M8x12 TX40 | 4 | $3.99 | Available | 4 |
| 16 | A6060304800001 Passenger footpeg bracket rlef | Passenger footpeg bracket rlef | 1 | $92.79 | Available | 1 |
| 17 | A6060304900001 Passenger footpeg bracket righ | Passenger footpeg bracket righ | 1 | $92.79 | Available | 1 |
| 18 | 0025080166 HH COLLAR SCREW M8X16 TX40 | HH COLLAR SCREW M8X16 TX40 | 4 | $4.99 | Available | 4 |
| 19 | 60003050000 FOOTREST CPL. L/S REAR 03 | FOOTREST CPL. L/S REAR 03 | 1 | $72.26 | Available | 1 |
| 20 | 60003051000 Footrest cmpl. r/s rear 03 | Footrest cmpl. r/s rear 03 | 1 | $72.81 | Available | 1 |
| 21 | 60003044000 BOLT FOR FOOTREST REAR 03 | BOLT FOR FOOTREST REAR 03 | 2 | $10.44 | Available | 2 |
| 22 | 60003152000 ENGAGE PANEL FOOTREST L/S 03 | ENGAGE PANEL FOOTREST L/S 03 | 2 | $6.15 | Available | 2 |
| 23 | 60003052000 ENGAGE PANEL FOOTREST R/S 03 | ENGAGE PANEL FOOTREST R/S 03 | 2 | $6.15 | Available | 2 |
| 25 | 0799060003 retaining washer DIN 6799 - 6 | retaining washer DIN 6799 - 6 | 2 | $1.99 | Available | 2 |
| 26 | A60603086000 Frame cover right | Frame cover right | 1 | $20.49 | Available | 1 |
| 28 | 0081250181 SCREW FOR PLASTIC 50X18 T20 | SCREW FOR PLASTIC 50X18 T20 | 2 | $1.99 | Available | 2 |
| 29 | 69008021160 special screw M5x12 | special screw M5x12 | 2 | $4.99 | Available | 2 |
| 30 | 76930088030 oil separator vent | oil separator vent | 1 | $31.45 | Available | 1 |
| 31 | 69008021080 clip nut M5 | clip nut M5 | 2 | $3.99 | Available | 2 |
| 32 | 60038082000 ANGLE CONNECTOR LC8 03 | ANGLE CONNECTOR LC8 03 | 1 | $2.99 | Available | 1 |
| 33 | 0770080020 O-RING 8X2 SILICONE | O-RING 8X2 SILICONE | 1 | $1.99 | Available | 1 |
| 34 | 0035080206S SHCS M8x20 TX45 | SHCS M8x20 TX45 | 1 | $6.26 | Available | 1 |
| 35 | 76504067000 CHAIN SLID. GUARD 08 | CHAIN SLID. GUARD 08 | 1 | $8.02 | Available | 1 |
| 36 | A60603096000 Front sprocket cover | Front sprocket cover | 1 | $22.79 | Available | 1 |
| 37 | 0025080356 HH collar screw M8x35 TX40 | HH collar screw M8x35 TX40 | 1 | $4.83 | Available | 1 |
| 38 | 0025060406 HH collar screw M6x40 TX30 | HH collar screw M6x40 TX30 | 1 | $3.99 | Available | 1 |
| 39 | 0025060126 HH collar screw M6x12 TX30 | HH collar screw M6x12 TX30 | 3 | $3.99 | Available | 3 |
| 40 | 58411098100 CONTACT WASHER M6 VSV-K6 | CONTACT WASHER M6 VSV-K6 | 3 | $2.99 | Available | 3 |
| 41 | 0024060106 HH COLLAR SCREW M6X10 TX30 | HH COLLAR SCREW M6X10 TX30 | 2 | $3.99 | Available | 2 |
| 43 | 49007439000 CLAMP RSGU 15/12 | CLAMP RSGU 15/12 | 1 | $6.15 | Available | 1 |
| 44 | 0025050126 HH collar screw M5x12 TX30 | HH collar screw M5x12 TX30 | 1 | $3.99 | Available | 1 |
| 47 | A60603005000C1 Engine brace left | Engine brace left | 1 | $86.59 | Available | 1 |
| 48 | A60603006000C1 Engine brace right | Engine brace right | 1 | $86.59 | Available | 1 |
| 49 | 0035100249 AH collar screw M10x24 ISA45 | AH collar screw M10x24 ISA45 | 4 | $3.99 | Available | 4 |
| 50 | 0900001012000S Engine bracket screw M10x120-1 | Engine bracket screw M10x120-1 | 1 | $6.39 | Available | 1 |
| 51 | 0900001015200S Engine bracket screw M10x152-1 | Engine bracket screw M10x152-1 | 1 | $7.29 | Available | 1 |
| 52 | 54630044000 COLLAR NUT M10 WS=13 | COLLAR NUT M10 WS=13 | 2 | $1.99 | Available | 2 |
| 53 | 54310086100 SELF LOCKING NUT M10 CU WS=14 | SELF LOCKING NUT M10 CU WS=14 | 4 | $2.99 | Available | 4 |
| 54 | 0933050203 HH SCREW DIN933 M5x20 | HH SCREW DIN933 M5x20 | 1 | $1.99 | Available | 1 |
| 55 | 0934050003 HEXAGON NUT DIN0934-M 5 | HEXAGON NUT DIN0934-M 5 | 1 | $2.99 | Available | 1 |
| 58 | A60611059020 bracket generator plug cpl | bracket generator plug cpl | 1 | $5.09 | Backorder — Restocking | 1 |
| 59 | 0738050082 Flat Head Screw ISO7380 M5x8 A | Flat Head Screw ISO7380 M5x8 A | 1 | $1.99 | Available | 1 |
| 60 | A60603001085 Cover shock absorber support | Cover shock absorber support | 1 | $17.49 | Backorder — Restocking | 1 |
| 70 | 60003044010 CLOSING PANEL FRONT L/S R/S 03 | CLOSING PANEL FRONT L/S R/S 03 | 2 | $7.14 | Available | 2 |
| 71 | 0985050003 Self locking nut DIN 985 M5 | Self locking nut DIN 985 M5 | 2 | $2.99 | Available | 2 |
| 72 | 60003041010 FOOTREST RUBBER FRONT R/S 03 | FOOTREST RUBBER FRONT R/S 03 | 1 | $26.06 | Available | 1 |
| 73 | 60003040010 FOOTREST RUBBER FRONT L/S 03 | FOOTREST RUBBER FRONT L/S 03 | 1 | $26.06 | Available | 1 |
| 99 | 76504067010 CHAIN SLIDING BELOW 08-13 | CHAIN SLIDING BELOW 08-13 | — | $22.54 | Available | 1 |
