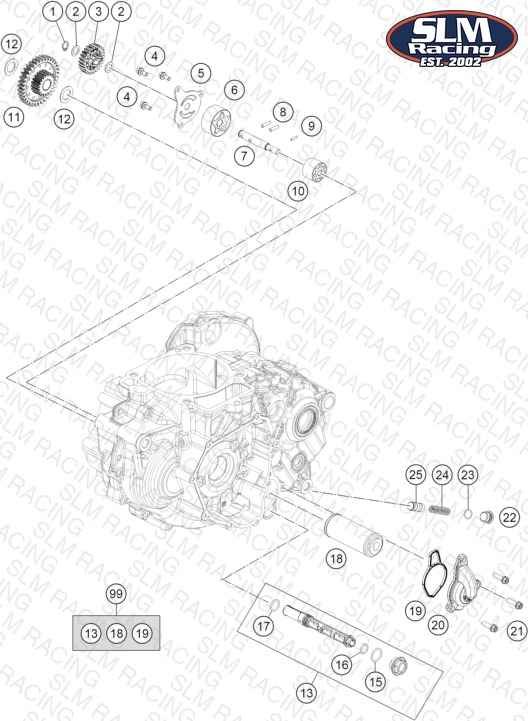

LUBRICATING SYSTEM
Parts (25)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 0004711000100 Lock ring DIN471 10x1 | Lock ring DIN471 10x1 | 1 | $0.99 | Backorder — Restocking | 1 |
| 2 | 60038007010 washer 10x16x0.5 | washer 10x16x0.5 | 2 | $2.99 | Available | 2 |
| 3 | A60638001026 oil pump gear 26t | oil pump gear 26t | 1 | $6.99 | Backorder — Restocking | 1 |
| 4 | 0025050126S Hex collar screw M5x12 ISA30 S | Hex collar screw M5x12 ISA30 S | 3 | $1.99 | Available | 3 |
| 5 | A60638003000 Oil pump cover | Oil pump cover | 1 | $10.99 | Backorder — Restocking | 1 |
| 6 | 60038009100 OIL PUMP ROTOR COMPL. 19MM | OIL PUMP ROTOR COMPL. 19MM | 1 | $18.36 | Available | 1 |
| 7 | A60638002000 Oil pump shaft | Oil pump shaft | 1 | $17.19 | Available | 1 |
| 8 | 0402041580 needle roller NRB 4x15.8 G2 | needle roller NRB 4x15.8 G2 | 2 | $2.99 | Available | 2 |
| 9 | 0402251180 NEEDLE ROLLER DIN5402 2,5X11,8 | NEEDLE ROLLER DIN5402 2,5X11,8 | 1 | $1.99 | Available | 1 |
| 10 | A60638011000 Rotor pump set pressure side | Rotor pump set pressure side | 1 | — | Out of Stock | Notify Me |
| 11 | A60638106000 Oil pump intermediate gear | Oil pump intermediate gear | 1 | $18.99 | Backorder — Restocking | 1 |
| 12 | 61230057060 STOP DISK 15,2X25X1 | STOP DISK 15,2X25X1 | 2 | $4.99 | Available | 2 |
| 16 | 0770125015 O-RING 12,5X1,5 NBR | O-RING 12,5X1,5 NBR | 1 | $2.99 | Available | 1 |
| 17 | 0770140200 O-RING 14,00X2,00 | O-RING 14,00X2,00 | 1 | $2.99 | Available | 1 |
| 18 | 77338005100 Oil Filter 07 | Oil Filter 07 | 1 | $10.99 | Available | 1 |
| 19 | A60638041010 Oil filter cover gasket | Oil filter cover gasket | 1 | $6.09 | Backorder — Restocking | 1 |
| 20 | A60638041000 Oil filter cover | Oil filter cover | 1 | $7.29 | Available | 1 |
| 21 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 3 | $3.99 | Available | 3 |
| 13 | 61238021300 Oil screen cmpl. | Oil screen cmpl. | 1 | $30.13 | Available | 1 |
| 23 | 0770110015 O-ring 11x1.5 VITON | O-ring 11x1.5 VITON | 1 | $6.15 | Available | 1 |
| 24 | 61438026000 Oil pressure spring | Oil pressure spring | 1 | $4.99 | Available | 1 |
| 25 | 60038128000 control piston | control piston | 1 | $6.15 | Available | 1 |
| 15 | 0770170200 O-RING 17,00X2,00 | O-RING 17,00X2,00 | 1 | $2.99 | Available | 1 |
| 22 | 78036081100 Screw plug M14x1,5 | Screw plug M14x1,5 | 1 | $3.99 | Available | 1 |
| 99 | A60638015010 Oilfilter Service Kit 690/701 | Oilfilter Service Kit 690/701 | — | $44.99 | Out of Stock | Notify Me |
