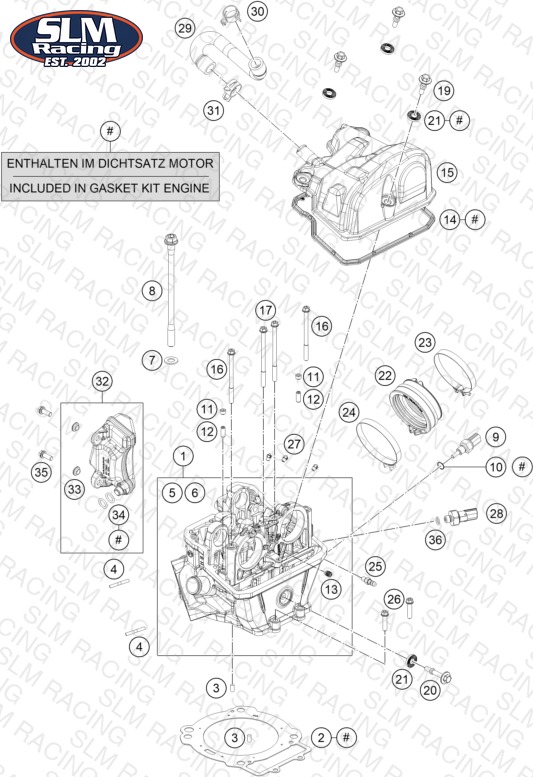

CYLINDER HEAD
Parts (35)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A6063602004424 Cylinder head cmpl. | Cylinder head cmpl. | 1 | $2110.19 | Backorder — Early August 2026 | 1 |
| 2 | 76630036000 CYLINDER HEAD GASKET D 105 | CYLINDER HEAD GASKET D 105 | 1 | $74.02 | Backorder — Restocking | 1 |
| 3 | 0474050100 GROOVED PIN DIN1474 5X10 | GROOVED PIN DIN1474 5X10 | 2 | $2.99 | Available | 2 |
| 4 | 63505015000 stud screw 835 M8x25 - 10.9 | stud screw 835 M8x25 - 10.9 | 2 | $2.99 | Available | 2 |
| 5 | 76636026001 VALVE GUIDE 6MM | VALVE GUIDE 6MM | 2 | $40.36 | Available | 2 |
| 6 | 61236025001 VALVE GIUDE INTAKE 6MM | VALVE GIUDE INTAKE 6MM | 2 | $26.39 | Backorder — Restocking | 2 |
| 7 | 60036078050 SHIM 10,2X19X1,5MM 05 | SHIM 10,2X19X1,5MM 05 | 4 | $3.99 | Available | 4 |
| 8 | 75036079000 CYLINDERHEAD SCREW M10X168WS14 | CYLINDERHEAD SCREW M10X168WS14 | 4 | $10.99 | Available | 4 |
| 9 | 79435047000 water temperature sensor | water temperature sensor | 1 | $27.93 | Backorder — Restocking | 1 |
| 10 | 0770100020 o-ring 10.00x2.00 silicone | o-ring 10.00x2.00 silicone | 1 | $2.99 | Available | 1 |
| 11 | 0913080060S THREAD PIN DIN913-M8X6 PRE30 | THREAD PIN DIN913-M8X6 PRE30 | 2 | $1.99 | Available | 2 |
| 12 | 0979060160 Cylinder pin DIN7979 6x16 | Cylinder pin DIN7979 6x16 | 2 | $1.99 | Available | 2 |
| 13 | 59030296000 SCREW PLUG | SCREW PLUG | 1 | $7.36 | Available | 1 |
| 14 | 76636053000 VALVE COVER GASKET | VALVE COVER GASKET | 1 | $30.35 | Backorder — Restocking | 1 |
| 15 | 76636052100C1 Valve cover | Valve cover | 1 | $49.99 | Available | 1 |
| 16 | 0025060806 HH COLLAR SCREW M6X80 TX30 | HH COLLAR SCREW M6X80 TX30 | 2 | $2.99 | Available | 2 |
| 17 | 0025060906 HH COLLAR SCREW M6X90 TX30 | HH COLLAR SCREW M6X90 TX30 | 2 | $3.99 | Available | 2 |
| 19 | 78036054100 VALVE COVER SCREW | VALVE COVER SCREW | 3 | $7.80 | Available | 3 |
| 20 | 75036055000 valve mechanism cover screw | valve mechanism cover screw | 1 | $4.99 | Available | 1 |
| 21 | 75036052010 decoupling element | decoupling element | 4 | $4.99 | Available | 4 |
| 22 | 27036044000 Rubber sleeve | Rubber sleeve | 1 | $37.94 | Available | 1 |
| 23 | 75036047000 HOSE CLAMP GEMI 70MM | HOSE CLAMP GEMI 70MM | 1 | $11.10 | Available | 1 |
| 24 | 61336048000 HOSE CLAMP GEMI 75 | HOSE CLAMP GEMI 75 | 1 | $16.82 | Available | 1 |
| 25 | 60036023200 VACUUM CONNECTION M6/0.75MM | VACUUM CONNECTION M6/0.75MM | 1 | $12.31 | Available | 1 |
| 26 | 0025060256S SK-BUNDSCHRAUBE M6X25 ISA30 | SK-BUNDSCHRAUBE M6X25 ISA30 | 2 | $1.99 | Available | 2 |
| 27 | 60030063050 oil jet 50 M5 | oil jet 50 M5 | 3 | $11.10 | Available | 3 |
| 29 | 27030088000 Pre-formed hose | Pre-formed hose | 1 | $17.48 | Available | 1 |
| 30 | 00050226706 VARIABLE ONE-EAR CLAMP 22,6MM | VARIABLE ONE-EAR CLAMP 22,6MM | 1 | $3.99 | Available | 1 |
| 31 | 00049210121 CLAMP 21X12 STD-DES | CLAMP 21X12 STD-DES | 1 | $3.99 | Available | 1 |
| 32 | 76636065000 RESONATOR ASSY. | RESONATOR ASSY. | 1 | $55.21 | Available | 1 |
| 33 | 69004060050 Chain slider bushing | Chain slider bushing | 2 | $4.99 | Available | 2 |
| 34 | 0770116241 O-RING 11,3 X2,4 SILICON | O-RING 11,3 X2,4 SILICON | 2 | $3.99 | Available | 2 |
| 35 | 0025060126 HH collar screw M6x12 TX30 | HH collar screw M6x12 TX30 | 2 | $3.99 | Available | 2 |
| 28 | 61238091100 oil pressure switch ''BITRON'' | oil pressure switch ''BITRON'' | 1 | $39.37 | Available | 1 |
| 36 | 07700900151 O-RING 9x1,5 V80 SH | O-RING 9x1,5 V80 SH | 1 | $2.99 | Available | 1 |
