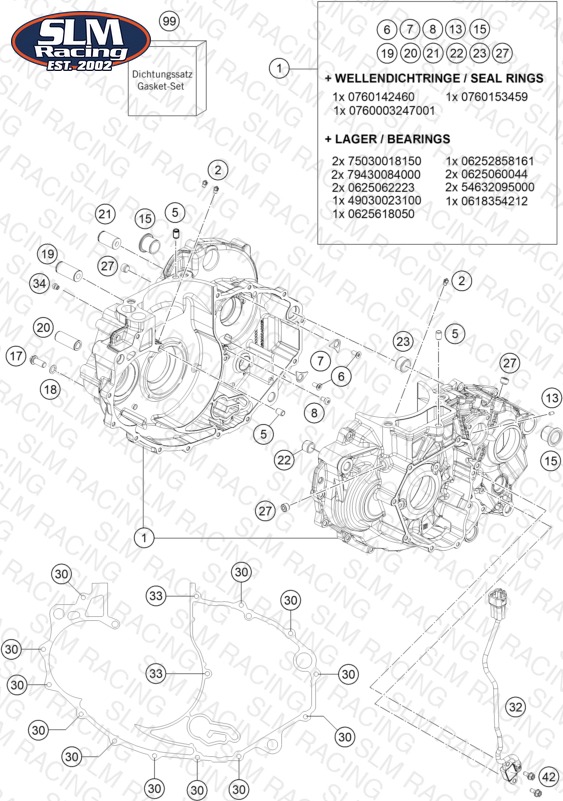

ENGINE CASE
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A6063000004424 Engine case cmpl. | Engine case cmpl. | 1 | $1281.09 | Backorder — Late September 2026 | 1 |
| 5 | 59030023100 Dowel, 6x8x11.5 | Dowel, 6x8x11.5 | 3 | $1.99 | Available | 3 |
| 6 | 0019050121S INT. TORX FLAT HEAD M5X12 T25 | INT. TORX FLAT HEAD M5X12 T25 | 2 | $2.99 | Available | 2 |
| 7 | 75030085100 Retaining bracket crankshaft b | Retaining bracket crankshaft b | 2 | $1.99 | Available | 2 |
| 8 | 0018050103S Oval head screw DIN 7985-M5x10 | Oval head screw DIN 7985-M5x10 | 1 | $1.99 | Available | 1 |
| 13 | 76638029030 Jet screw M4x8 | Jet screw M4x8 | 1 | $6.15 | Available | 1 |
| 15 | 79230010000 Housing bush | Housing bush | 2 | $13.96 | Available | 2 |
| 19 | 54633018400 BUSHING PIN | BUSHING PIN | 1 | $25.73 | Available | 1 |
| 21 | 59040028000 BUSHING PIN | BUSHING PIN | 1 | $12.31 | Available | 1 |
| 22 | 54630027000 DOWEL BUSHING 13,8X11X12 | DOWEL BUSHING 13,8X11X12 | 1 | $8.13 | Available | 1 |
| 23 | 54830027100 Dowel, 21x12 | Dowel, 21x12 | 1 | $6.15 | Available | 1 |
| 30 | 0025060306 HH collar screw M6x30 TX30 | HH collar screw M6x30 TX30 | 12 | $3.99 | Available | 12 |
| 33 | 0025060806 HH COLLAR SCREW M6X80 TX30 | HH COLLAR SCREW M6X80 TX30 | 2 | $2.99 | Available | 2 |
| 34 | 57031523100 MAIN JET 100 DELLORTO | MAIN JET 100 DELLORTO | 1 | $10.11 | Available | 1 |
| 99 | A60630099000 Engine gasket kit 690 Enduro/S | Engine gasket kit 690 Enduro/S | 1 | $279.69 | Out of Stock | Notify Me |
| 17 | 0000150802000 Screw, M8x20 SW=8 8.8 | Screw, M8x20 SW=8 8.8 | 1 | $1.99 | Available | 1 |
| 18 | 0603082131 COPPER Gask.DIN7603- 8.2X13X1 | COPPER Gask.DIN7603- 8.2X13X1 | 1 | $2.99 | Available | 1 |
| 20 | 61230058050 BEARING BOLT 15X39 08 | BEARING BOLT 15X39 08 | 1 | $14.18 | Available | 1 |
| 27 | 0906100100 pipe plug DIN 906 M10x1 | pipe plug DIN 906 M10x1 | 3 | $4.99 | Available | 3 |
| 32 | A60011023000 Gear position sensor | Gear position sensor | 1 | — | Obsolete | View Details |
| 42 | 0025050126S Hex collar screw M5x12 ISA30 S | Hex collar screw M5x12 ISA30 S | 2 | $1.99 | Available | 2 |
| 2 | 60030063050 oil jet 50 M5 | oil jet 50 M5 | 3 | $11.10 | Available | 3 |
