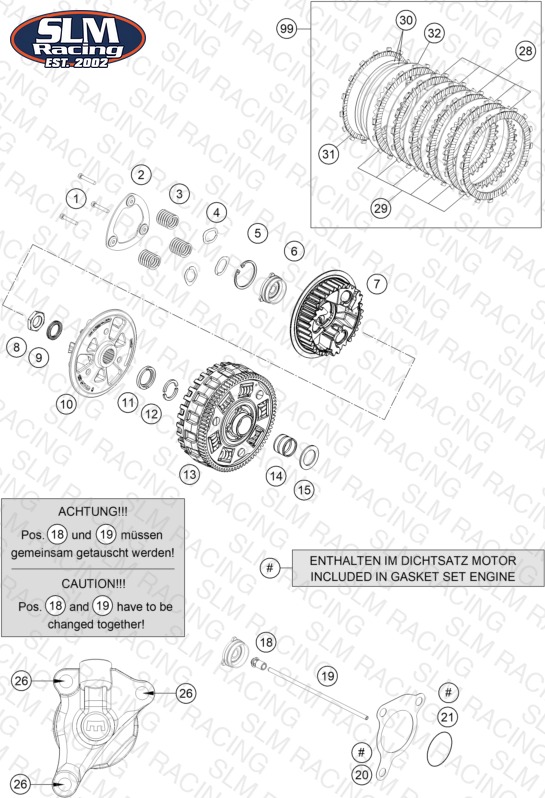

CLUTCH
Parts (26)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 014580050306 Cyl.screw DIN14580 M5x30 | Cyl.screw DIN14580 M5x30 | 3 | $2.99 | Available | 3 |
| 2 | A60632006000 Clutch pressure plate stop | Clutch pressure plate stop | 1 | $8.39 | Available | 1 |
| 3 | A60632005000 Clutch spring | Clutch spring | 3 | $5.69 | Backorder — Restocking | 3 |
| 4 | A60632041000 Spring retainer | Spring retainer | 3 | $2.29 | Available | 3 |
| 5 | 0004724517500 Lock ring DIN0472-45x1.75 | Lock ring DIN0472-45x1.75 | 1 | $3.49 | Backorder — Restocking | 1 |
| 7 | A60632003000 Clutch pressure plate | Clutch pressure plate | 1 | $106.59 | Backorder — Restocking | 1 |
| 8 | 60036073150 hex nut M20x1,. H=6mm | hex nut M20x1,. H=6mm | 1 | $8.13 | Available | 1 |
| 10 | A60632002000 Inner clutch hub | Inner clutch hub | 1 | $97.69 | Backorder — Restocking | 1 |
| 11 | 75032009000 STEPPED WASHER 07 | STEPPED WASHER 07 | 1 | $10.99 | Available | 1 |
| 12 | 75032007000 HALF-WASHER 07 | HALF-WASHER 07 | 2 | $13.08 | Available | 2 |
| 13 | A60632001044 Outer clutch hub cmpl. | Outer clutch hub cmpl. | 1 | $555.69 | Backorder — Restocking | 1 |
| 14 | 56532095000 NEEDLE BEARING K26X30X22ZW.KSE | NEEDLE BEARING K26X30X22ZW.KSE | 1 | $28.04 | Available | 1 |
| 15 | 75032017000 WASHER 26X40X2 07 | WASHER 26X40X2 07 | 1 | $7.47 | Available | 1 |
| 18 | 75032055100 PRESSURE BOLT 08 | PRESSURE BOLT 08 | 1 | $11.65 | Available | 1 |
| 19 | 75032054200 PUSH ROD 08 | PUSH ROD 08 | 1 | $17.59 | Available | 1 |
| 20 | 59032065100 GASKET F. OUTPUT CYLINDER | GASKET F. OUTPUT CYLINDER | 1 | $6.59 | Available | 1 |
| 21 | 0770300015 O-ring 30x1.5 NBR 70 | O-ring 30x1.5 NBR 70 | 1 | $2.99 | Available | 1 |
| 26 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 3 | $3.99 | Available | 3 |
| 28 | 75032112000 STEEL DISK 1,5 MM LC4 ´07 | STEEL DISK 1,5 MM LC4 ´07 | 5 | $21.66 | Available | 5 |
| 29 | A60632011000 LINING DISK 2,7MM FCC 02 | LINING DISK 2,7MM FCC 02 | 6 | $21.09 | Backorder — Restocking | 6 |
| 30 | 58632016000 RONDELLA ANTIVIBRAZIONE SET | RONDELLA ANTIVIBRAZIONE SET | 1 | $73.25 | Available | 1 |
| 31 | A60632011010 LINING DISC CUT OUT | LINING DISC CUT OUT | 1 | $23.09 | Backorder — Restocking | 1 |
| 32 | 75032112100 STEEL DISK 1,5MM NITRIDED | STEEL DISK 1,5MM NITRIDED | 1 | $27.05 | Available | 1 |
| 99 | A60632010044 Clutch Disk Kit | Clutch Disk Kit | 1 | $188.39 | Backorder — Restocking | 1 |
| 6 | A60632004044 Clutch pressure plate insert c | Clutch pressure plate insert c | 1 | $18.39 | Backorder — Restocking | 1 |
| 9 | 0252012103100 Wedge lock washer HLS 20 | Wedge lock washer HLS 20 | 1 | $6.15 | Available | 1 |
