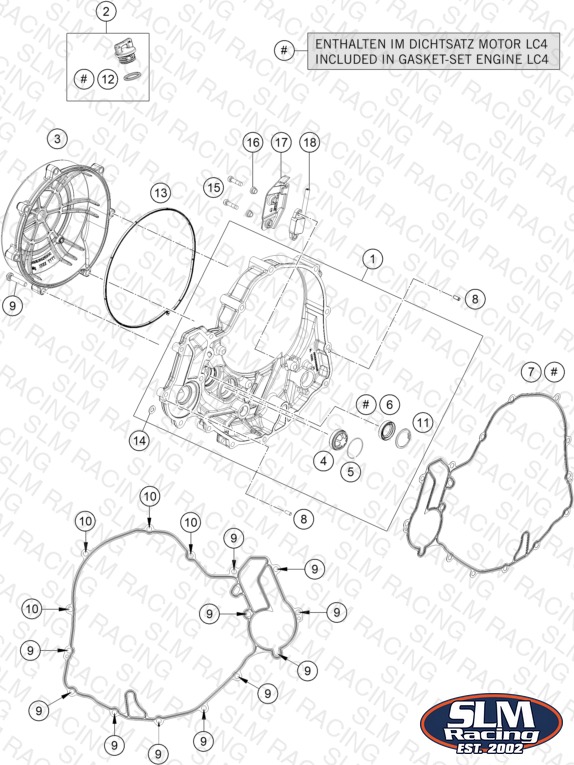

CLUTCH COVER
Parts (18)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A60630001033JA clutch cover cpl. | clutch cover cpl. | 1 | $169.39 | Available | 1 |
| 2 | 58030020100 oil plug cpl. M24x3 | oil plug cpl. M24x3 | 1 | $6.15 | Available | 1 |
| 3 | A60630626000JA Outer clutch cover | Outer clutch cover | 1 | $77.39 | Backorder — Restocking | 1 |
| 4 | 59030019200 OIL SIGHT GLASS | OIL SIGHT GLASS | 1 | $25.07 | Available | 1 |
| 5 | 61030019050 CIRCLIP OIL LEVEL GLASS 03 | CIRCLIP OIL LEVEL GLASS 03 | 1 | $1.99 | Available | 1 |
| 6 | 0760172861 SHAFT SEAL RING 17X28X6 FKM | SHAFT SEAL RING 17X28X6 FKM | 1 | $11.98 | Available | 1 |
| 7 | A60630025000 Clutch cover gasket internal | Clutch cover gasket internal | 1 | $35.59 | Backorder — Restocking | 1 |
| 8 | 0402040980 Needle roll.DIN5402 NRB 4X9.8 | Needle roll.DIN5402 NRB 4X9.8 | 2 | $3.99 | Available | 2 |
| 9 | 0900000603002 Alu. ISR screw M6x30 | Alu. ISR screw M6x30 | 14 | $0.99 | Backorder — Restocking | 14 |
| 10 | 0900000606501 Alu. ISR screw M6x65 | Alu. ISR screw M6x65 | 4 | $1.99 | Backorder — Restocking | 4 |
| 11 | 0472280120 CIRCLIP DIN0472-28X1,2 | CIRCLIP DIN0472-28X1,2 | 1 | $2.99 | Available | 1 |
| 12 | 0770191015 O-RING 19,00X3,00 NBR | O-RING 19,00X3,00 NBR | 1 | $2.99 | Available | 1 |
| 13 | A60630027000 clutch cover gasket outside | clutch cover gasket outside | 1 | $7.89 | Backorder — Restocking | 1 |
| 14 | 0603061201 Cu Sealing ring 6x12 | Cu Sealing ring 6x12 | 1 | $0.99 | Available | 1 |
| 15 | 014580050203S Cap hd. screw DIN14580 M5x20 P | Cap hd. screw DIN14580 M5x20 P | 2 | $1.20 | Available | 2 |
| 16 | 78003023070 SPACER BUSH. SPRING BRACKET | SPACER BUSH. SPRING BRACKET | 2 | $1.99 | Available | 2 |
| 17 | 76834052000 Quickshifter sensor cover | Quickshifter sensor cover | 1 | $2.99 | Available | 1 |
| 18 | 61434051000 Shift shaft sensor | Shift shaft sensor | 1 | $154.76 | Available | 1 |
