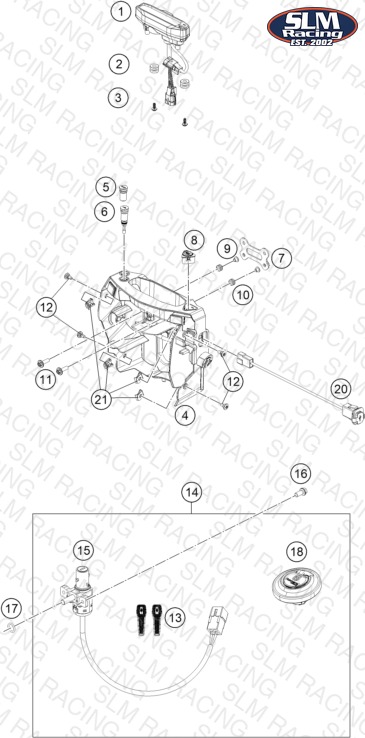

INSTRUMENTS / LOCK SYSTEM
Parts (20)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 76114069000 Dashboard | Dashboard | 1 | — | Check availability | |
| 2 | 58214069051 rubber grommet 16x10.8x3 | rubber grommet 16x10.8x3 | 2 | — | Check availability | |
| 3 | 0081045121 SCREW FOR PLASTIC K45X12 T20 | SCREW FOR PLASTIC K45X12 T20 | 2 | — | Check availability | |
| 4 | 27114060000 Combination instrument bracket | Combination instrument bracket | 1 | — | Check availability | |
| 5 | 27014081000 FLASHER CONTROL LIGHT | FLASHER CONTROL LIGHT | 1 | — | Check availability | |
| 6 | 76914082000 Oil pressure warning indicator | Oil pressure warning indicator | 1 | — | Check availability | |
| 7 | 76114062044 Adapter plate dashboard cmpl. | Adapter plate dashboard cmpl. | 1 | — | Check availability | |
| 8 | 76142070000 ABS switch | ABS switch | 1 | — | Check availability | |
| 9 | 75014010050 COLLAR BUSHING 6,1X8,1X14X8 07 | COLLAR BUSHING 6,1X8,1X14X8 07 | 2 | — | Check availability | |
| 10 | 31008060000 rubber grommet D=8mm open | rubber grommet D=8mm open | 2 | — | Check availability | |
| 11 | 0024060156 HH collar screw M6x15 TX30 | HH collar screw M6x15 TX30 | 2 | — | Check availability | |
| 12 | 69008021160 special screw M5x12 | special screw M5x12 | 4 | — | Check availability | |
| 13 | 27011067000 IGNITION KEY | IGNITION KEY | — | — | Check availability | |
| 14 | 27011066144 Lock kit | Lock kit | 1 | — | Check availability | |
| 15 | 27011066100 Ignition Switch | Ignition Switch | 1 | — | Check availability | |
| 16 | 59009062013 SPECIAL SCREW M6X13 WS=8 10.9 | SPECIAL SCREW M6X13 WS=8 10.9 | 2 | — | Check availability | |
| 17 | 0770100020 o-ring 10.00x2.00 silicone | o-ring 10.00x2.00 silicone | 1 | — | Check availability | |
| 18 | 27007008000 TANK CAP | TANK CAP | 1 | — | Check availability | |
| 20 | 64111043000 USB power socket 12 V | USB power socket 12 V | 1 | — | Check availability | |
| 21 | 54603048200 RANGE CHANGE METAL NUT M5 | RANGE CHANGE METAL NUT M5 | 4 | — | Check availability |
