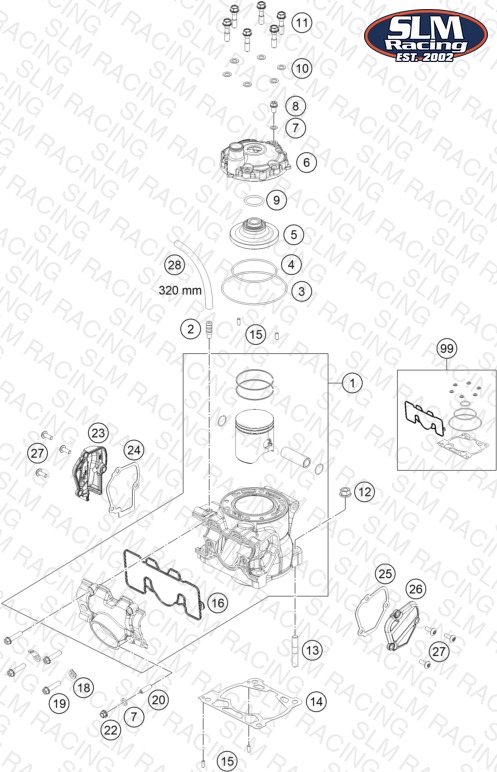

CYLINDER, CYLINDER HEAD
Parts (32)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 50530038000 Cylinder + Piston cpl. 125 | Cylinder + Piston cpl. 125 | 1 | $1254.21 | Available | 1 |
| 2 | 58336020090 VACUUM CONNECTION M 6X1 | VACUUM CONNECTION M 6X1 | 1 | $7.80 | Available | 1 |
| 3 | 0770890200 O-RING 89X2 NBR 70 SH | O-RING 89X2 NBR 70 SH | 1 | $3.99 | Available | 1 |
| 4 | 0770600200 O-RING 60X2 FPM 75SH | O-RING 60X2 FPM 75SH | 1 | $6.15 | Available | 1 |
| 5 | 50430060100 Combustion chamber insert | Combustion chamber insert | 1 | $37.94 | Available | 1 |
| 6 | 50430106000 CYLINDER HEAD | CYLINDER HEAD | 1 | $49.49 | Available | 1 |
| 7 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 1 | $2.99 | Available | 1 |
| 8 | 0025060106 HH collar screw M6x10 TX30 | HH collar screw M6x10 TX30 | 1 | $3.99 | Available | 1 |
| 9 | 07702300251 O-ring 23.00X2.5 NBR 70 SH | O-ring 23.00X2.5 NBR 70 SH | 1 | $2.99 | Available | 1 |
| 10 | 0603070121 CU-SEAL RING DIN7603- 7,3X12X1 | CU-SEAL RING DIN7603- 7,3X12X1 | 6 | $1.99 | Available | 6 |
| 11 | 50430079000 CYLINDER HEAD SCREW | CYLINDER HEAD SCREW | 6 | $3.99 | Available | 6 |
| 12 | 50330045000 HH COLLAR NUT M 8 WS=12 | HH COLLAR NUT M 8 WS=12 | 4 | $2.99 | Available | 4 |
| 13 | 0835080326 STUD DIN 835 M8X32 | STUD DIN 835 M8X32 | 4 | $2.99 | Available | 4 |
| 14 | 50430035015 CYLINDER BASE GASKET 0.15MM | CYLINDER BASE GASKET 0.15MM | — | $9.78 | Available | 1 |
| 14 | 50430035020 CYLINDER BASE GASKET 0.20MM | CYLINDER BASE GASKET 0.20MM | — | $11.54 | Available | 1 |
| 14 | 50430035025 CYLINDER BASE GASKET 0.25MM | CYLINDER BASE GASKET 0.25MM | — | $12.64 | Available | 1 |
| 14 | 50430035040 CYLINDER BASE GASKET 0.40MM | CYLINDER BASE GASKET 0.40MM | — | $11.54 | Available | 1 |
| 14 | 50430035050 CYLINDER BASE GASKET 0.50MM | CYLINDER BASE GASKET 0.50MM | — | $11.65 | Available | 1 |
| 14 | 50430035075 CYLINDER BASE GASKET 0.75MM | CYLINDER BASE GASKET 0.75MM | — | $12.64 | Available | 1 |
| 15 | 0402040980 Needle roll.DIN5402 NRB 4X9.8 | Needle roll.DIN5402 NRB 4X9.8 | 4 | $3.99 | Available | 4 |
| 16 | 50437046000 GASKET CONNECTION FLANGE | GASKET CONNECTION FLANGE | 1 | $14.18 | Available | 1 |
| 18 | 51005074000 RETAINING PLATE | RETAINING PLATE | 2 | $3.99 | Available | 2 |
| 19 | 0025060256 HH collar screw M6x25 TX30 | HH collar screw M6x25 TX30 | 4 | $3.99 | Available | 4 |
| 20 | 0913060203 THREAD PIN DIN0913-M 6X20 | THREAD PIN DIN0913-M 6X20 | 1 | $1.99 | Available | 1 |
| 22 | 77336088106 COLLAR NUT M6X1 SW8 | COLLAR NUT M6X1 SW8 | 1 | $14.84 | Available | 1 |
| 23 | 5043700700033 EXHAUST CONTROL COVER R/S | EXHAUST CONTROL COVER R/S | 1 | $26.83 | Available | 1 |
| 24 | 50437008100 Exhaust ctrl cover gasket rhs | Exhaust ctrl cover gasket rhs | 1 | $9.23 | Available | 1 |
| 25 | 50437006100 Exhaust ctrl cover gasket lhs | Exhaust ctrl cover gasket lhs | 1 | $9.23 | Available | 1 |
| 26 | 5043700500033 EXHAUST CONTROL COVER L/S | EXHAUST CONTROL COVER L/S | 1 | $28.92 | Available | 1 |
| 27 | 58605083014 Oval head screw M5x14 TX25 | Oval head screw M5x14 TX25 | 6 | $3.99 | Available | 6 |
| 28 | 50335030001 PVC-HOSE 6X9 | PVC-HOSE 6X9 | — | $7.91 | Available | 1 |
| 99 | 50430097000 CYLINDER GASKET SET 125/150 16 | CYLINDER GASKET SET 125/150 16 | — | $90.96 | Available | 1 |
