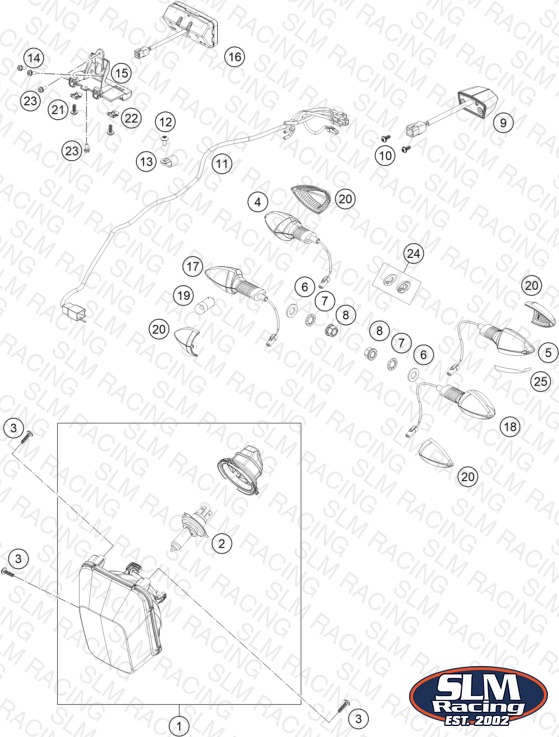

LIGHTING SYSTEM
Parts (25)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 25 | 27014037000 THERMAL PROTECTION FOIL | THERMAL PROTECTION FOIL | 1 | — | Check availability | |
| 19 | 60114027000 BULB 12V ORANGE (RY10W) | BULB 12V ORANGE (RY10W) | 4 | — | Check availability | |
| 20 | 60114028000 FLASHER LENS L/S R/S TRANSP.06 | FLASHER LENS L/S R/S TRANSP.06 | 4 | — | Check availability | |
| 1 | 27014001100 Main Head Light | Main Head Light | 1 | — | Check availability | |
| 2 | 57111038000 BULB H4 12V 60/55W (P43T) | BULB H4 12V 60/55W (P43T) | 1 | — | Check availability | |
| 3 | 0081050181 SCREW FOR PLASTIC K50X18 T20 | SCREW FOR PLASTIC K50X18 T20 | 3 | — | Check availability | |
| 4 | 60114025000 FLASHER CPL.FRONT L/S REAR R/S | FLASHER CPL.FRONT L/S REAR R/S | 1 | — | Check availability | |
| 5 | 60114026000 FLASHER CPL.FRONT R/S REAR L/S | FLASHER CPL.FRONT R/S REAR L/S | 1 | — | Check availability | |
| 6 | 0433100003 Washer DIN0433-M10 | Washer DIN0433-M10 | 4 | — | Check availability | |
| 7 | 0797100003 LOCK WASHER DIN6797-J10,5 ZI | LOCK WASHER DIN6797-J10,5 ZI | 4 | — | Check availability | |
| 8 | 58414030000 HH COLLAR NUT M10X1,25 WS=13 | HH COLLAR NUT M10X1,25 WS=13 | 4 | — | Check availability | |
| 9 | 60314047000 license plate lighting | license plate lighting | 1 | — | Check availability | |
| 10 | 0081050121 EJOT PT screw K50x12 | EJOT PT screw K50x12 | 2 | — | Check availability | |
| 11 | 27011076000 Wiring harness, rear | Wiring harness, rear | 1 | — | Check availability | |
| 12 | 78105081010 SCREW TORX M5X10 | SCREW TORX M5X10 | 1 | — | Check availability | |
| 13 | 57013070000 PVC-CLAMP 7/16'' HEYCO 3377 | PVC-CLAMP 7/16'' HEYCO 3377 | 1 | — | Check availability | |
| 14 | 0017060255 EJOT PT SCREW K60X25-Z SW6 | EJOT PT SCREW K60X25-Z SW6 | 2 | — | Check availability | |
| 15 | 27014146000 CARRIER BACKLIGHT USA | CARRIER BACKLIGHT USA | 1 | — | Check availability | |
| 16 | 27014140000 REAR LAMP SAE | REAR LAMP SAE | 1 | — | Check availability | |
| 17 | 26514026000 FLASHER CPL.FRONT R/S REAR L/S | FLASHER CPL.FRONT R/S REAR L/S | 1 | — | Check availability | |
| 18 | 26514025000 FLASHER CPL.FRONT L/S REAR R/S | FLASHER CPL.FRONT L/S REAR R/S | 1 | — | Check availability | |
| 21 | 69008021160 special screw M5x12 | special screw M5x12 | 2 | — | Check availability | |
| 22 | 69008021080 clip nut M5 | clip nut M5 | 2 | — | Check availability | |
| 23 | 0025050126 HH collar screw M5x12 TX30 | HH collar screw M5x12 TX30 | 2 | — | Check availability | |
| 24 | 27014025044 FLASHER PAD REAR SET | FLASHER PAD REAR SET | 1 | — | Check availability |
