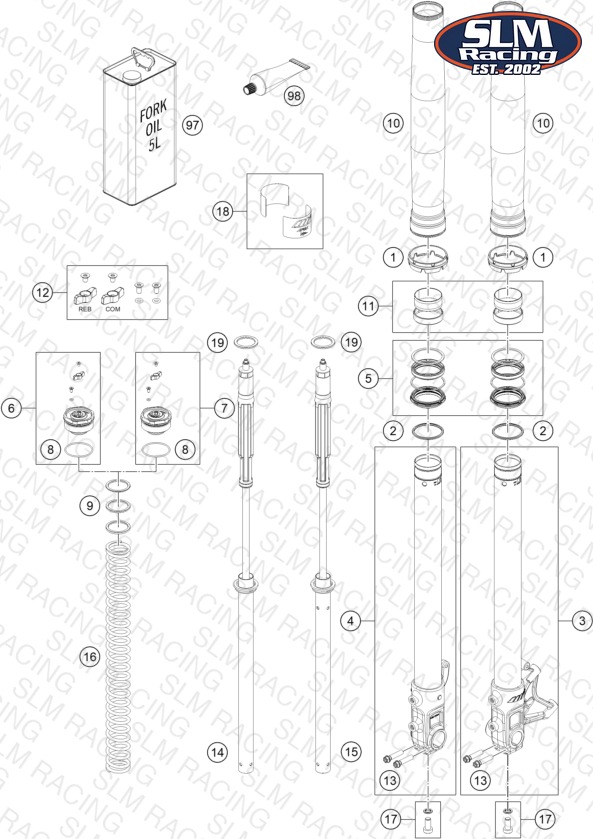

FRONT FORK DISASSEMBLED
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 48601948 Fork protection ring 60,1mm | Fork protection ring 60,1mm | 2 | $2.41 | Available | 2 |
| 2 | 48602007 Stroke indicator 48mm red | Stroke indicator 48mm red | 2 | $4.83 | Available | 2 |
| 3 | 48601318S1 AXLE CLAMP L/S WITH TUBE CPL. | AXLE CLAMP L/S WITH TUBE CPL. | 1 | $684.63 | Available | 1 |
| 4 | 48601317S1 AXLE CLAMP R/S WITH TUBE CPL. | AXLE CLAMP R/S WITH TUBE CPL. | 1 | $653.50 | Available | 1 |
| 5 | RP10012 Sealkit 48mm SKF black | Sealkit 48mm SKF black | — | $78.53 | Available | 1 |
| 6 | 48602039S Screw cap M51x1,5 rebound cpl. | Screw cap M51x1,5 rebound cpl. | 1 | $73.25 | Available | 1 |
| 7 | 48602040S Screw cap M51x1,5 compression | Screw cap M51x1,5 compression | 1 | $73.25 | Available | 1 |
| 8 | 48600048 O-ring 46x2 NBR70 siliconized | O-ring 46x2 NBR70 siliconized | 2 | $3.62 | Available | 2 |
| 9 | 48600458 Washer 35x43x1,5 plastic | Washer 35x43x1,5 plastic | — | $2.41 | Available | 1 |
| 9 | 48600456 Washer 35x43x2,5 plastic | Washer 35x43x2,5 plastic | — | $2.41 | Available | 1 |
| 9 | 48600457 Preload bush 35x43x3,5 | Preload bush 35x43x3,5 | — | $2.41 | Available | 1 |
| 10 | 48601981 fork outer tube 54x530 dt54 db | fork outer tube 54x530 dt54 db | 2 | $261.57 | Available | 2 |
| 11 | R14047 Guide bushing set fork 48mm | Guide bushing set fork 48mm | — | $32.99 | Available | 1 |
| 12 | RP10021 Adjuster kit screw cap | Adjuster kit screw cap | — | $6.70 | Available | 1 |
| 13 | 0025080356 HH collar screw M8x35 TX40 | HH collar screw M8x35 TX40 | 4 | $4.83 | Available | 4 |
| 14 | 48601067S1 Cartridge right KTM 690 SM | Cartridge right KTM 690 SM | 1 | $620.50 | Available | 1 |
| 15 | 48601067S2 Cartridge left KTM 690 SMC | Cartridge left KTM 690 SMC | 1 | $620.50 | Available | 1 |
| 16 | 91410043S SPRING C=5,3 L=450 D=5,5 | SPRING C=5,3 L=450 D=5,5 | 1 | $171.59 | Available | 1 |
| 17 | 00501020S1 AH SCREW M10X20 SET | AH SCREW M10X20 SET | 2 | $13.52 | Available | 2 |
| 18 | 52000210SET Sticker set APEX OC 90x40 | Sticker set APEX OC 90x40 | 1 | $54.99 | Available | 1 |
| 97 | 48601166S1 Fork Fluid Viscosity 4.0 5L | Fork Fluid Viscosity 4.0 5L | — | $175.99 | Available | 1 |
| 98 | T14034 Fuchs grease IPR (250g) | Fuchs grease IPR (250g) | — | $40.69 | Available | 1 |
| 19 | 48600113 Washer 32x42x2,5 plastic | Washer 32x42x2,5 plastic | 2 | $13.08 | Available | 2 |
