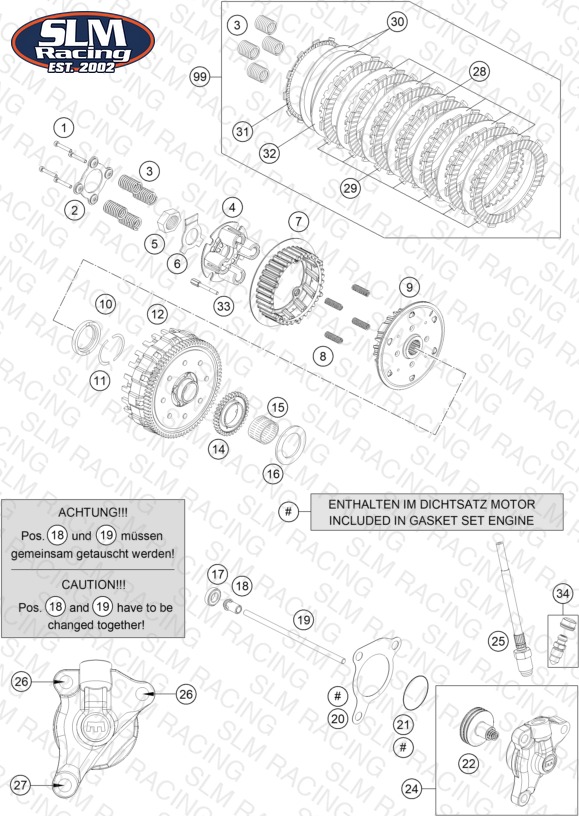

CLUTCH
Parts (33)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 014580050306 Cyl.screw DIN14580 M5x30 | Cyl.screw DIN14580 M5x30 | 4 | $2.99 | Available | 4 |
| 2 | 76632006000 Anticentrifugal ring | Anticentrifugal ring | 1 | $8.90 | Available | 1 |
| 3 | 58532080000 CLUTCHSPRING 3,0X33,5 | CLUTCHSPRING 3,0X33,5 | 4 | $10.44 | Available | 4 |
| 4 | 76632003044 Pressure Plate | Pressure Plate | 1 | $57.41 | Available | 1 |
| 5 | 60036073150 hex nut M20x1,. H=6mm | hex nut M20x1,. H=6mm | 1 | $8.13 | Available | 1 |
| 6 | 75032018100 Lock washer | Lock washer | 1 | $4.99 | Available | 1 |
| 7 | 76632002002 Movable Hub | Movable Hub | 1 | $136.72 | Backorder — Restocking | 1 |
| 8 | 75032033000 CLUTCH RELEASE SPRING | CLUTCH RELEASE SPRING | 4 | $9.12 | Available | 4 |
| 9 | 76632002001 Fixed Hub | Fixed Hub | 1 | $153.00 | Available | 1 |
| 10 | 75032009000 STEPPED WASHER 07 | STEPPED WASHER 07 | 1 | $10.99 | Available | 1 |
| 11 | 75032007000 HALF-WASHER 07 | HALF-WASHER 07 | 2 | $13.08 | Available | 2 |
| 12 | 75032001144 CLUTCH CAGE CPL. 79T | CLUTCH CAGE CPL. 79T | 1 | $627.87 | Available | 1 |
| 14 | 75032050001 OIL PUMP DRIVE WHEEL 07 | OIL PUMP DRIVE WHEEL 07 | 1 | $4.99 | Available | 1 |
| 15 | 56532095000 NEEDLE BEARING K26X30X22ZW.KSE | NEEDLE BEARING K26X30X22ZW.KSE | 1 | $28.04 | Available | 1 |
| 16 | 75032017000 WASHER 26X40X2 07 | WASHER 26X40X2 07 | 1 | $7.47 | Available | 1 |
| 17 | 0625060016 deep groove ball bearing 6001. | deep groove ball bearing 6001. | 1 | $22.21 | Available | 1 |
| 18 | 75032055100 PRESSURE BOLT 08 | PRESSURE BOLT 08 | 1 | $11.65 | Available | 1 |
| 19 | 75032054200 PUSH ROD 08 | PUSH ROD 08 | 1 | $17.59 | Available | 1 |
| 20 | 59032065100 GASKET F. OUTPUT CYLINDER | GASKET F. OUTPUT CYLINDER | 1 | $6.59 | Available | 1 |
| 21 | 0770300015 O-ring 30x1.5 NBR 70 | O-ring 30x1.5 NBR 70 | 1 | $2.99 | Available | 1 |
| 22 | 76132066000 Piston kit output Cyl. Dot Cpl | Piston kit output Cyl. Dot Cpl | 1 | $106.36 | Available | 1 |
| 24 | 76132061044 Output Cyl. Dot Cpl. 27mm | Output Cyl. Dot Cpl. 27mm | 1 | $223.84 | Available | 1 |
| 25 | 76032063000 CLUTCH PIPE 1100MM | CLUTCH PIPE 1100MM | 1 | $81.50 | Backorder — Restocking | 1 |
| 26 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 2 | $3.99 | Available | 2 |
| 27 | 0025060356 HH collar screw M6x35 TX30 | HH collar screw M6x35 TX30 | 1 | $3.99 | Available | 1 |
| 28 | 75032112000 STEEL DISK 1,5 MM LC4 ´07 | STEEL DISK 1,5 MM LC4 ´07 | 6 | $21.66 | Available | 6 |
| 29 | 58332011300 LINING DISK 2,7MM FCC 02 | LINING DISK 2,7MM FCC 02 | 7 | $34.09 | Available | 7 |
| 30 | 58632016000 RONDELLA ANTIVIBRAZIONE SET | RONDELLA ANTIVIBRAZIONE SET | 1 | $73.25 | Available | 1 |
| 31 | 75032111100 LINING DISC CUT OUT | LINING DISC CUT OUT | 1 | $27.60 | Available | 1 |
| 32 | 75032112100 STEEL DISK 1,5MM NITRIDED | STEEL DISK 1,5MM NITRIDED | 1 | $27.05 | Available | 1 |
| 33 | 75032032000 HOLDING SCREW GMB-M5X35 | HOLDING SCREW GMB-M5X35 | 2 | $9.01 | Available | 2 |
| 34 | 54732064000 BLEEDER SCREW WITH CAP | BLEEDER SCREW WITH CAP | 1 | $25.84 | Available | 1 |
| 99 | 75032011110 CLUTCH KIT 690/701 | CLUTCH KIT 690/701 | 1 | $257.61 | Available | 1 |
