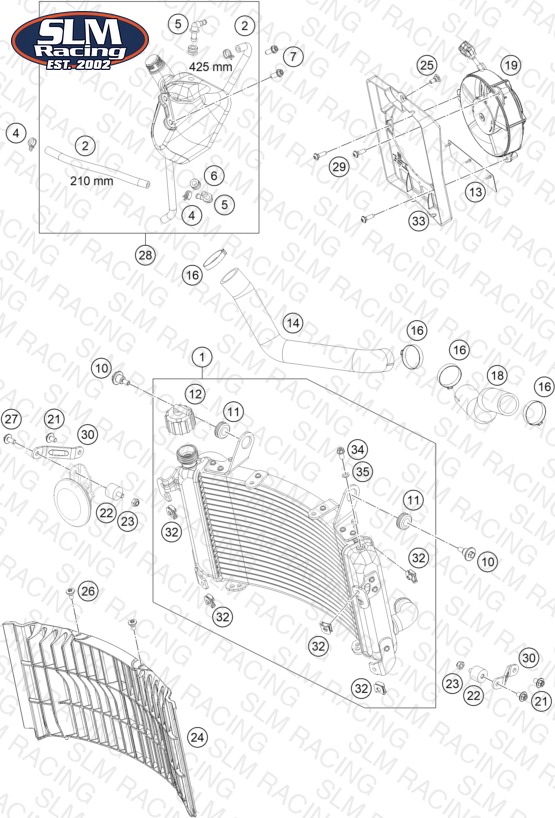

COOLING SYSTEM
Parts (29)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 2 | 60035067001 HOSE 6X10 EPDM 03 | HOSE 6X10 EPDM 03 | — | $10.44 | Available | 1 |
| 3 | 60335066044 Latch, compens. tank cpl. | Latch, compens. tank cpl. | 1 | $7.91 | Available | 1 |
| 4 | 58007017000 YDNAC-clamp 10101 (10.4MM) | YDNAC-clamp 10101 (10.4MM) | 3 | $3.99 | Available | 3 |
| 5 | 60035068000 Angle piece, reservoir | Angle piece, reservoir | 2 | $3.99 | Available | 2 |
| 6 | 60035069000 RUBBER GROMMET 6X9X13MM 04 | RUBBER GROMMET 6X9X13MM 04 | 2 | $4.99 | Available | 2 |
| 7 | 0026060136 COLLAR SCREW M6X13 ISA30 | COLLAR SCREW M6X13 ISA30 | 2 | $3.99 | Available | 2 |
| 10 | 60035001000 SPECIAL SCREW M6X21 WS=8 | SPECIAL SCREW M6X21 WS=8 | 2 | $3.99 | Available | 2 |
| 11 | 41001052000 RUBBER SLEEVE D=12MM | RUBBER SLEEVE D=12MM | 2 | $4.99 | Available | 2 |
| 12 | 62535009000 RADIATOR CAP 1,4 BAR | RADIATOR CAP 1,4 BAR | 1 | $29.91 | Available | 1 |
| 13 | 62635044050 FAN CLACK RUBBER 08 | FAN CLACK RUBBER 08 | 1 | $9.45 | Available | 1 |
| 14 | 27035025000 Radiator hose right | Radiator hose right | 1 | $30.90 | Out of Stock | Notify Me |
| 16 | 00050325706 VARIABLE ONE-EAR CLAMP 32,5MM | VARIABLE ONE-EAR CLAMP 32,5MM | 4 | $4.99 | Available | 4 |
| 18 | 27035024000 HOSE | HOSE | 1 | $16.38 | Available | 1 |
| 19 | 62635041000 VENTILATOR | VENTILATOR | 1 | $167.52 | Available | 1 |
| 21 | 0024060106 HH COLLAR SCREW M6X10 TX30 | HH COLLAR SCREW M6X10 TX30 | 3 | $3.99 | Available | 3 |
| 22 | 43205062100 silentbloc 20x15-M6x10-(1) | silentbloc 20x15-M6x10-(1) | 2 | $16.38 | Available | 2 |
| 23 | 0985060003 Self lock. nut DIN985-M6-A2 | Self lock. nut DIN985-M6-A2 | 2 | $2.99 | Available | 2 |
| 24 | 27035140000 RADIATOR GUARD | RADIATOR GUARD | 1 | $25.07 | Available | 1 |
| 25 | 69008021160 special screw M5x12 | special screw M5x12 | 1 | $4.99 | Available | 1 |
| 26 | 0081050141 EJOT PT screw K50x14 | EJOT PT screw K50x14 | 2 | $1.99 | Available | 2 |
| 27 | 0024060136 HH collar screw M6x13 TX30 | HH collar screw M6x13 TX30 | 1 | $3.99 | Available | 1 |
| 28 | 76935065133 Water compensating tank cmpl. | Water compensating tank cmpl. | 1 | $69.62 | Available | 1 |
| 29 | 0081050161 EJOT PT SCREW K50X16 1451 | EJOT PT SCREW K50X16 1451 | 3 | $1.99 | Available | 3 |
| 30 | 76535001000 RETAINING PLATE RADIATOR 08 | RETAINING PLATE RADIATOR 08 | 2 | $12.20 | Available | 2 |
| 32 | 54603048200 RANGE CHANGE METAL NUT M5 | RANGE CHANGE METAL NUT M5 | 5 | $6.15 | Available | 5 |
| 33 | 27035044000 FAN COVER | FAN COVER | 1 | $15.39 | Available | 1 |
| 34 | 0025060126 HH collar screw M6x12 TX30 | HH collar screw M6x12 TX30 | 1 | $3.99 | Available | 1 |
| 35 | 60035048000 ALU-GASKET 6X10X1.5 | ALU-GASKET 6X10X1.5 | 1 | $3.99 | Available | 1 |
| 1 | 27135010000 Radiator | Radiator | 1 | — | Obsolete | View Details |
