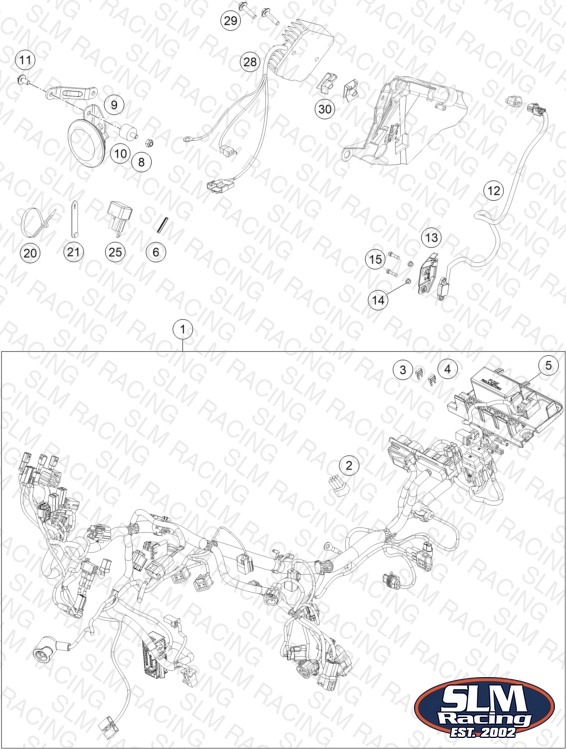

WIRING HARNESS
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 76911075000 main harness | main harness | 1 | — | Check availability | |
| 2 | 000700000BH SPARE CONNECTOR BH 6-PINS | SPARE CONNECTOR BH 6-PINS | 1 | — | Check availability | |
| 3 | 75011088010 FUSE 10A 07 | FUSE 10A 07 | — | — | Check availability | |
| 4 | 75011088015 FUSE 15A 07 | FUSE 15A 07 | — | — | Check availability | |
| 5 | 75011087050 RUBBER CASING FOR FUSE BOX | RUBBER CASING FOR FUSE BOX | 1 | — | Check availability | |
| 8 | 0985060003 Self lock. nut DIN985-M6-A2 | Self lock. nut DIN985-M6-A2 | 1 | — | Check availability | |
| 9 | 76511060100 DC horn cpl. | DC horn cpl. | 1 | — | Check availability | View Details |
| 10 | 43205062100 silentbloc 20x15-M6x10-(1) | silentbloc 20x15-M6x10-(1) | 1 | — | Check availability | |
| 11 | 0024060136 HH collar screw M6x13 TX30 | HH collar screw M6x13 TX30 | 1 | — | Check availability | |
| 20 | 44011076140 CABLE TIE 140/2,5MM BLACK | CABLE TIE 140/2,5MM BLACK | — | — | Check availability | |
| 20 | 44011076200 Cable tie 200/4.6mm black | Cable tie 200/4.6mm black | — | — | Check availability | |
| 20 | 44011076305 CABLE TIE 300/4,8MM BLACK | CABLE TIE 300/4,8MM BLACK | — | — | Check availability | |
| 21 | 60011093045 RUBBER CABLE TIE 45MM 03 | RUBBER CABLE TIE 45MM 03 | — | — | Check availability | |
| 25 | 76011030000 FLASHER UNIT LED 6,25W | FLASHER UNIT LED 6,25W | 1 | — | Check availability | |
| 28 | 60011034100 VOLTAGE REGULATOR | VOLTAGE REGULATOR | 1 | — | Check availability | |
| 29 | 0024060256 HH COLLAR SCREW M6X25 TX30 | HH COLLAR SCREW M6X25 TX30 | 2 | — | Check availability | |
| 30 | 54603048100 clip nut M6 | clip nut M6 | 2 | — | Check availability | |
| 12 | 61434051000 Shift shaft sensor | Shift shaft sensor | 1 | — | Check availability | |
| 13 | 76834052000 Quickshifter sensor cover | Quickshifter sensor cover | 1 | — | Check availability | |
| 14 | 78003023070 SPACER BUSH. SPRING BRACKET | SPACER BUSH. SPRING BRACKET | 2 | — | Check availability | View Details |
| 15 | 014580050203S Cap hd. screw DIN14580 M5x20 P | Cap hd. screw DIN14580 M5x20 P | 2 | — | Check availability | |
| 6 | 61011055045 EDGE PROTECTOR L=45MM 05 | EDGE PROTECTOR L=45MM 05 | 1 | — | Check availability |
