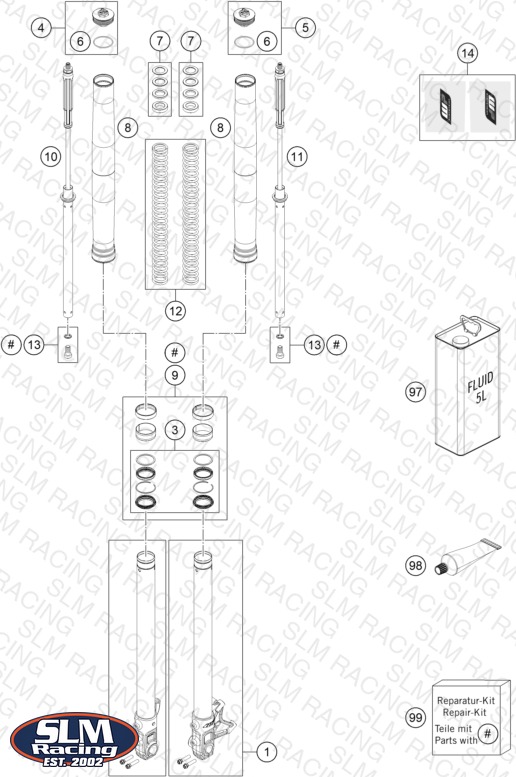

FRONT FORK DISASSEMBLED
Parts (17)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 14 | 52000093 STICKER FRONT FORK-SET WP | STICKER FRONT FORK-SET WP | 1 | — | Check availability | |
| 1 | 48601318S1 AXLE CLAMP L/S WITH TUBE CPL. | AXLE CLAMP L/S WITH TUBE CPL. | 1 | — | Check availability | |
| 2 | 48601317S1 AXLE CLAMP R/S WITH TUBE CPL. | AXLE CLAMP R/S WITH TUBE CPL. | 1 | — | Check availability | |
| 3 | R14040 GASKET KIT CPL. | GASKET KIT CPL. | 1 | — | Check availability | View Details |
| 4 | 48601062S2 Screw cap M51x1,5 rebound red | Screw cap M51x1,5 rebound red | 1 | — | Check availability | |
| 5 | 48601062S3 Screw cap M51x1,5 compression | Screw cap M51x1,5 compression | 1 | — | Check availability | |
| 6 | 46810340 O-ring 45x2 NBR70 siliconized | O-ring 45x2 NBR70 siliconized | 2 | — | Check availability | |
| 7 | R14026 spring tensioner SET | spring tensioner SET | 1 | — | Check availability | |
| 8 | 48601099 Fork outer tube 49,13x550 dt54 | Fork outer tube 49,13x550 dt54 | 2 | — | Check availability | |
| 9 | R14063 Fork repair kit 48mm offroad | Fork repair kit 48mm offroad | 1 | — | Check availability | View Details |
| 10 | 48600705S3 CARDRIDGE KIT CPL. R/S | CARDRIDGE KIT CPL. R/S | 1 | — | Check availability | |
| 11 | 48601319S CARDRIDGE KIT CPL. L/S | CARDRIDGE KIT CPL. L/S | 1 | — | Check availability | |
| 12 | 91410044S SPRING C=5,6 L=450 D=5,5 05 | SPRING C=5,6 L=450 D=5,5 05 | 1 | — | Check availability | |
| 13 | 00501020S1 AH SCREW M10X20 SET | AH SCREW M10X20 SET | 2 | — | Check availability | |
| 97 | 48601166S1 Fork Fluid Viscosity 4.0 5L | Fork Fluid Viscosity 4.0 5L | 1 | — | Check availability | |
| 98 | T511 SILICONE GREASE F. DUST STRI | SILICONE GREASE F. DUST STRI | 1 | — | Check availability | View Details |
| 99 | R14041 repair kit 1290 SD 2014 | repair kit 1290 SD 2014 | 1 | — | Check availability | View Details |
