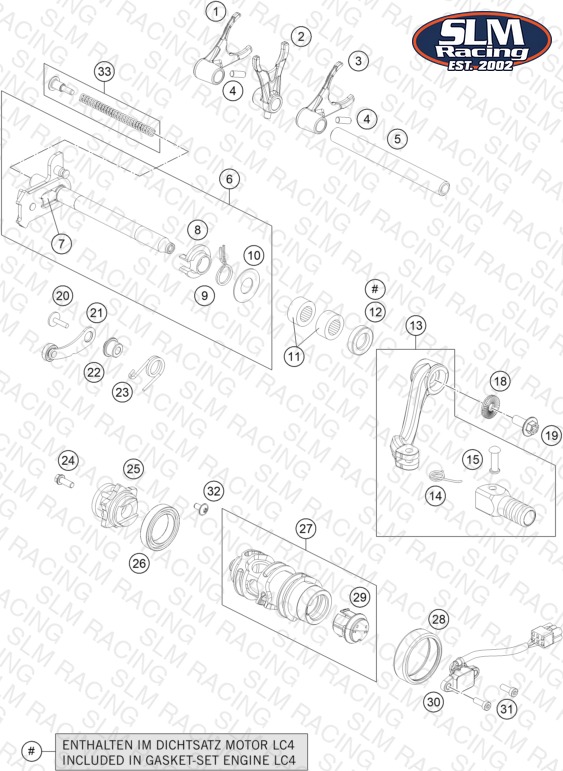

SHIFTING MECHANISM
Parts (31)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 75034002100 SHIFT FORK F. SLIDINGGEAR 5 12 | SHIFT FORK F. SLIDINGGEAR 5 12 | 1 | — | Check availability | |
| 2 | 75034001100 SHIFT FORK F. SLIDINGG. 3/4 12 | SHIFT FORK F. SLIDINGG. 3/4 12 | 1 | — | Check availability | |
| 3 | 75034003100 SHIFT FORK F. SLIDINGGEAR 6 12 | SHIFT FORK F. SLIDINGGEAR 6 12 | 1 | — | Check availability | |
| 4 | 0402061480 NEEDLE ROLLER DIN5402 6X14,8 | NEEDLE ROLLER DIN5402 6X14,8 | 2 | — | Check availability | |
| 5 | 75034019000 SHIFTRAIL 07 | SHIFTRAIL 07 | 1 | — | Check availability | View Details |
| 6 | 75034005133 SHIFT SHAFT ASSY | SHIFT SHAFT ASSY | 1 | — | Check availability | |
| 7 | 56534013100 TENSIONING SPRING 0,8MM | TENSIONING SPRING 0,8MM | 1 | — | Check availability | |
| 8 | 54634020000 SPRING GUIDE | SPRING GUIDE | 1 | — | Check availability | |
| 9 | 54634014100 RETURN SPRING 2,2MM '95 | RETURN SPRING 2,2MM '95 | 1 | — | Check availability | |
| 10 | 75034050000 STOP DISK 14X30X1,5 STEEL | STOP DISK 14X30X1,5 STEEL | 1 | — | Check availability | |
| 11 | 54632095000 needle sleeve HK 1412 14x20x12 | needle sleeve HK 1412 14x20x12 | 2 | — | Check availability | |
| 12 | 0760142460 radial shaft seal 14x24x6 B | radial shaft seal 14x24x6 B | 1 | — | Check availability | |
| 13 | 75034031000 SHIFT LEVER CPL. 07 | SHIFT LEVER CPL. 07 | 1 | — | Check availability | |
| 14 | 75034032000 SHIFTING LEVER SPRING | SHIFTING LEVER SPRING | 1 | — | Check availability | |
| 15 | 54634031050 BOLT 6X25 FOR SHIFT LEVER | BOLT 6X25 FOR SHIFT LEVER | 1 | — | Check availability | |
| 18 | 50233041500 PAIR NORDLOCK WASHER M6 | PAIR NORDLOCK WASHER M6 | 1 | — | Check availability | |
| 19 | 0024060156S HH collar screw M6x15 TX30 | HH collar screw M6x15 TX30 | 1 | — | Check availability | |
| 20 | 0024060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 1 | — | Check availability | |
| 21 | 75034024044 LOCKING LEVER CPL. 07 | LOCKING LEVER CPL. 07 | 1 | — | Check availability | |
| 22 | 75034052000 SLEEVE FOR LOCKING LEVER 07 | SLEEVE FOR LOCKING LEVER 07 | 1 | — | Check availability | |
| 23 | 60034023000 ARRESTING LEVER SPRING 03 | ARRESTING LEVER SPRING 03 | 1 | — | Check availability | |
| 24 | 0025060166 HH collar screw M6x16 TX30 | HH collar screw M6x16 TX30 | 1 | — | Check availability | |
| 25 | 75034015000 SHIFT DRUM LOCATING CPL. 07 | SHIFT DRUM LOCATING CPL. 07 | 1 | — | Check availability | View Details |
| 26 | 0625618050 BALL BEARING 61805 C3 | BALL BEARING 61805 C3 | 1 | — | Check availability | |
| 27 | 76634012044 SHIFTING DRUM CPL. | SHIFTING DRUM CPL. | 1 | — | Check availability | View Details |
| 28 | 0618354212 NEEDLE BEAR HK3512 35X42X12 | NEEDLE BEAR HK3512 35X42X12 | 1 | — | Check availability | |
| 30 | 60411023000 GEAR POSITION SENSOR | GEAR POSITION SENSOR | 1 | — | Check availability | |
| 31 | 0984050143S CYL. SCREW DIN6912 M5X14 8.8 | CYL. SCREW DIN6912 M5X14 8.8 | 2 | — | Check availability | |
| 33 | 75034007044 SPRING F. SHIFTING SHAFT CPL. | SPRING F. SHIFTING SHAFT CPL. | 1 | — | Check availability | |
| 32 | 073800501002 PAN HEAD SCREW M5X10 TX25 | PAN HEAD SCREW M5X10 TX25 | 1 | — | Check availability | View Details |
| 29 | 79234012020 Magnet bracket cmpl. | Magnet bracket cmpl. | 1 | — | Check availability |
