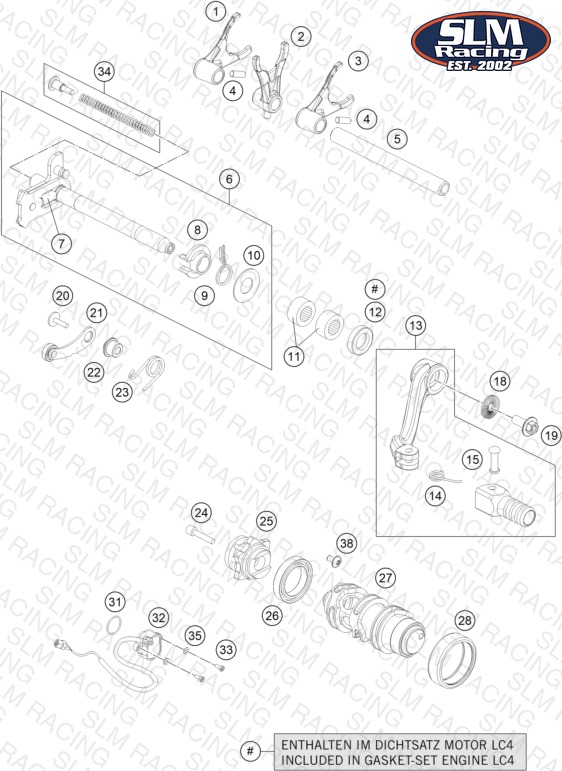

SHIFTING MECHANISM
Parts (32)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 75034002100 SHIFT FORK F. SLIDINGGEAR 5 12 | SHIFT FORK F. SLIDINGGEAR 5 12 | 1 | $46.74 | Available | 1 |
| 2 | 75034001100 SHIFT FORK F. SLIDINGG. 3/4 12 | SHIFT FORK F. SLIDINGG. 3/4 12 | 1 | $45.31 | Available | 1 |
| 3 | 75034003100 SHIFT FORK F. SLIDINGGEAR 6 12 | SHIFT FORK F. SLIDINGGEAR 6 12 | 1 | $46.74 | Available | 1 |
| 4 | 0402061480 NEEDLE ROLLER DIN5402 6X14,8 | NEEDLE ROLLER DIN5402 6X14,8 | 2 | $4.99 | Available | 2 |
| 5 | 75034019000 SHIFTRAIL 07 | SHIFTRAIL 07 | 1 | $15.28 | Available | 1 |
| 6 | 75034005133 SHIFT SHAFT ASSY | SHIFT SHAFT ASSY | 1 | — | Obsolete | View Details |
| 7 | 56534013100 TENSIONING SPRING 0,8MM | TENSIONING SPRING 0,8MM | 1 | $1.99 | Available | 1 |
| 8 | 54634120000 SPRING GUIDE | SPRING GUIDE | 1 | — | Obsolete | View Details |
| 9 | 54834014000 RETURN SPRING 03 | RETURN SPRING 03 | 1 | $4.99 | Available | 1 |
| 10 | 75034050000 STOP DISK 14X30X1,5 STEEL | STOP DISK 14X30X1,5 STEEL | 1 | $4.99 | Available | 1 |
| 11 | 54632095000 needle sleeve HK 1412 14x20x12 | needle sleeve HK 1412 14x20x12 | 2 | $8.24 | Available | 2 |
| 12 | 0760142460 radial shaft seal 14x24x6 B | radial shaft seal 14x24x6 B | 1 | $10.88 | Available | 1 |
| 13 | 75034031000 SHIFT LEVER CPL. 07 | SHIFT LEVER CPL. 07 | 1 | $103.94 | Available | 1 |
| 14 | 75034032000 SHIFTING LEVER SPRING | SHIFTING LEVER SPRING | 1 | $3.99 | Available | 1 |
| 15 | 54634031050 BOLT 6X25 FOR SHIFT LEVER | BOLT 6X25 FOR SHIFT LEVER | 1 | $9.23 | Available | 1 |
| 18 | 50233041500 PAIR NORDLOCK WASHER M6 | PAIR NORDLOCK WASHER M6 | 1 | $4.99 | Available | 1 |
| 19 | 0024060156S HH collar screw M6x15 TX30 | HH collar screw M6x15 TX30 | 1 | $2.99 | Available | 1 |
| 20 | 0024060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 1 | $3.99 | Available | 1 |
| 21 | 75034024044 LOCKING LEVER CPL. 07 | LOCKING LEVER CPL. 07 | 1 | $22.54 | Available | 1 |
| 22 | 75034052000 SLEEVE FOR LOCKING LEVER 07 | SLEEVE FOR LOCKING LEVER 07 | 1 | $4.99 | Available | 1 |
| 23 | 60034023000 ARRESTING LEVER SPRING 03 | ARRESTING LEVER SPRING 03 | 1 | $2.99 | Available | 1 |
| 24 | 0012060303 AH SCREW DIN6912 M6X30 8.8 | AH SCREW DIN6912 M6X30 8.8 | 1 | $1.99 | Available | 1 |
| 25 | 75034015000 SHIFT DRUM LOCATING CPL. 07 | SHIFT DRUM LOCATING CPL. 07 | 1 | $92.41 | Available | 1 |
| 26 | 0625618050 BALL BEARING 61805 C3 | BALL BEARING 61805 C3 | 1 | $51.69 | Available | 1 |
| 27 | 76034112044 SHIFTING DRUM CPL. | SHIFTING DRUM CPL. | 1 | $142.44 | Available | 1 |
| 28 | 0618354212 NEEDLE BEAR HK3512 35X42X12 | NEEDLE BEAR HK3512 35X42X12 | 1 | $11.65 | Available | 1 |
| 31 | 07700240251 o-ring 24.00x2.50 Viton | o-ring 24.00x2.50 Viton | 1 | $3.99 | Available | 1 |
| 32 | 60211023100 GEAR-POSITION SENSOR | GEAR-POSITION SENSOR | 1 | $194.36 | Available | 1 |
| 33 | 0984050163S CYL. SCREW DIN6912 M5X16 8.8 | CYL. SCREW DIN6912 M5X16 8.8 | 2 | $2.99 | Available | 2 |
| 34 | 75034007044 SPRING F. SHIFTING SHAFT CPL. | SPRING F. SHIFTING SHAFT CPL. | 1 | $10.33 | Available | 1 |
| 35 | 0125050003 WASHER DIN0125-A 5,3 | WASHER DIN0125-A 5,3 | 2 | $1.99 | Available | 2 |
| 38 | 073800501002 PAN HEAD SCREW M5X10 TX25 | PAN HEAD SCREW M5X10 TX25 | 1 | $1.99 | Available | 1 |
