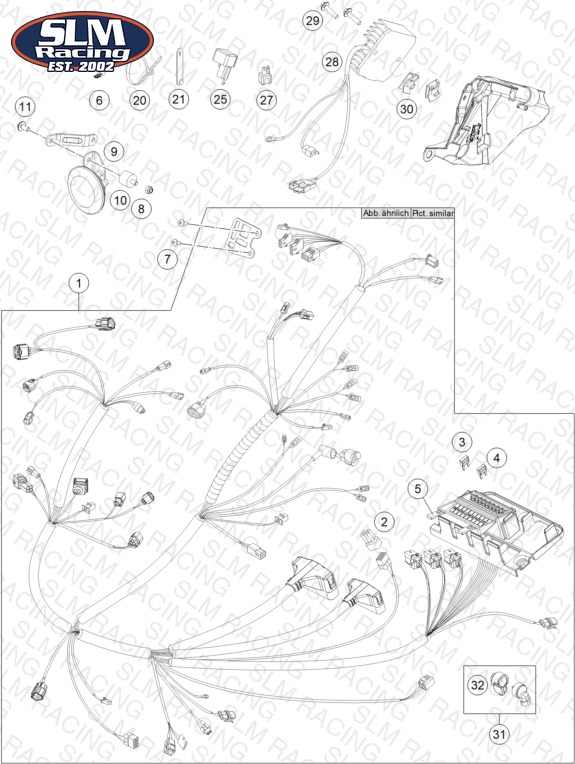

WIRING HARNESS
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 27011075000 MAIN WIRING HARNESS | MAIN WIRING HARNESS | 1 | — | Check availability | |
| 2 | 000700000BH SPARE CONNECTOR BH 6-PINS | SPARE CONNECTOR BH 6-PINS | 1 | — | Check availability | |
| 3 | 75011088010 FUSE 10A 07 | FUSE 10A 07 | — | — | Check availability | |
| 4 | 75011088015 FUSE 15A 07 | FUSE 15A 07 | — | — | Check availability | |
| 5 | 75011087050 RUBBER CASING FOR FUSE BOX | RUBBER CASING FOR FUSE BOX | 1 | — | Check availability | |
| 7 | 0081050121 EJOT PT screw K50x12 | EJOT PT screw K50x12 | 2 | — | Check availability | |
| 8 | 0985060003 Self lock. nut DIN985-M6-A2 | Self lock. nut DIN985-M6-A2 | 1 | — | Check availability | |
| 9 | 76511060100 DC horn cpl. | DC horn cpl. | 1 | — | Check availability | View Details |
| 20 | 44011076140 CABLE TIE 140/2,5MM BLACK | CABLE TIE 140/2,5MM BLACK | — | — | Check availability | |
| 20 | 44011076200 Cable tie 200/4.6mm black | Cable tie 200/4.6mm black | — | — | Check availability | |
| 20 | 44011076305 CABLE TIE 300/4,8MM BLACK | CABLE TIE 300/4,8MM BLACK | — | — | Check availability | |
| 21 | 60011093045 RUBBER CABLE TIE 45MM 03 | RUBBER CABLE TIE 45MM 03 | — | — | Check availability | |
| 25 | 76011030000 FLASHER UNIT LED 6,25W | FLASHER UNIT LED 6,25W | 1 | — | Check availability | |
| 27 | 58411096100 DIODE S3H-15 97 | DIODE S3H-15 97 | 3 | — | Check availability | |
| 28 | 60011034100 VOLTAGE REGULATOR | VOLTAGE REGULATOR | 1 | — | Check availability | |
| 29 | 0024060256 HH COLLAR SCREW M6X25 TX30 | HH COLLAR SCREW M6X25 TX30 | 2 | — | Check availability | |
| 30 | 54603048100 clip nut M6 | clip nut M6 | 2 | — | Check availability | |
| 31 | 76511010000 MAP-SELECT-SWITCH | MAP-SELECT-SWITCH | 1 | — | Check availability | |
| 32 | 76511010050 RUBBER HOLDER F. MAP-SEL-SWIT. | RUBBER HOLDER F. MAP-SEL-SWIT. | 1 | — | Check availability | |
| 10 | 43205062100 silentbloc 20x15-M6x10-(1) | silentbloc 20x15-M6x10-(1) | 1 | — | Check availability | |
| 11 | 0024060136 HH collar screw M6x13 TX30 | HH collar screw M6x13 TX30 | 1 | — | Check availability | |
| 6 | 49111425200 BULB 12V 2,3W (W2X4,6D) | BULB 12V 2,3W (W2X4,6D) | 1 | — | Check availability |
