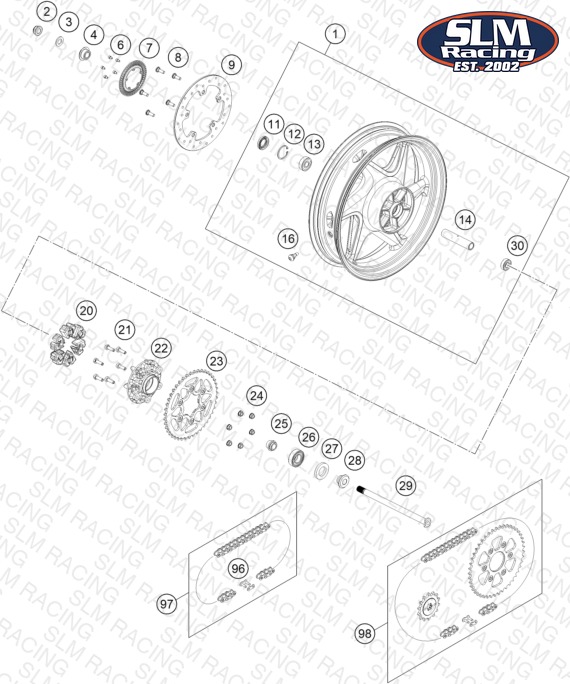

REAR WHEEL
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A61610001044C1 Rear Wheel Assy. Black | Rear Wheel Assy. Black | 1 | $614.89 | Available | 1 |
| 2 | 96310086000 nut rear wheel axle | nut rear wheel axle | 1 | $4.99 | Available | 1 |
| 3 | J690001700300 washer 17x2.6 | washer 17x2.6 | 1 | $0.99 | Available | 1 |
| 4 | J800001701700 collar | collar | 1 | $11.08 | Available | 1 |
| 6 | J900000500800 BOLT SOCKET M5X0.8 | BOLT SOCKET M5X0.8 | 5 | $1.99 | Available | 5 |
| 7 | 94542020000 Sensor wheel, front | Sensor wheel, front | 1 | $24.94 | Available | 1 |
| 8 | 90110062000 SPECIAL SCREW M8X25 SELF LOCK. | SPECIAL SCREW M8X25 SELF LOCK. | 5 | $3.99 | Available | 5 |
| 9 | 96310060000 DISC BRAKE DIA 240 | DISC BRAKE DIA 240 | 1 | $129.12 | Available | 1 |
| 11 | J760304708 SHAFT SEAL RING 30X47X8 | SHAFT SEAL RING 30X47X8 | 1 | $1.99 | Available | 1 |
| 12 | J710004717501 CIRCLIP 47X17 | CIRCLIP 47X17 | 1 | $1.99 | Available | 1 |
| 13 | J410001701400 Ball bearing 17x47x14 | Ball bearing 17x47x14 | 1 | $16.04 | Available | 1 |
| 14 | A61710011000 COLLAR | COLLAR | 1 | $16.38 | Out of Stock | Notify Me |
| 16 | 90109076000 VALVE CPL. | VALVE CPL. | 1 | $8.35 | Available | 1 |
| 20 | 90210059100 rear wheel dampening rubber | rear wheel dampening rubber | 6 | $6.15 | Available | 6 |
| 21 | 28110053000 Special screw M8x26 SS | Special screw M8x26 SS | 6 | $1.99 | Available | 6 |
| 22 | 28110050000 Rear sprocket carrier, spoke r | Rear sprocket carrier, spoke r | 1 | $39.26 | Available | 1 |
| 23 | 96310051043 rear sprocket 43T | rear sprocket 43T | 1 | $60.63 | Available | 1 |
| 24 | 90510052000 FLANGED NUT M8X1,25 | FLANGED NUT M8X1,25 | 6 | $1.99 | Available | 6 |
| 25 | A61710016000 SPACER | SPACER | 1 | $7.36 | Out of Stock | Notify Me |
| 26 | J625062050 BALL BEARING 6205 | BALL BEARING 6205 | 1 | $18.35 | Available | 1 |
| 27 | J760295207 SHAFT SEAL RING 29X52X7 | SHAFT SEAL RING 29X52X7 | 1 | $6.15 | Available | 1 |
| 28 | 96310011000 Rear wheel bushing | Rear wheel bushing | 1 | $13.62 | Available | 1 |
| 29 | 96310085000 rear wheel axle | rear wheel axle | 1 | $28.26 | Available | 1 |
| 30 | J410001701200 Ball bearing | Ball bearing | 1 | $11.43 | Available | 1 |
| 97 | 76910065118 chain DID 118 roll | chain DID 118 roll | 1 | $151.57 | Available | 1 |
| 98 | SPA214G433K118B drivetrain kit 14Z/43Z | drivetrain kit 14Z/43Z | 1 | $279.99 | Available | 1 |
| 96 | 76910066000 Rivet link chain DID 520 VP2-T | Rivet link chain DID 520 VP2-T | — | $23.53 | Available | 1 |
