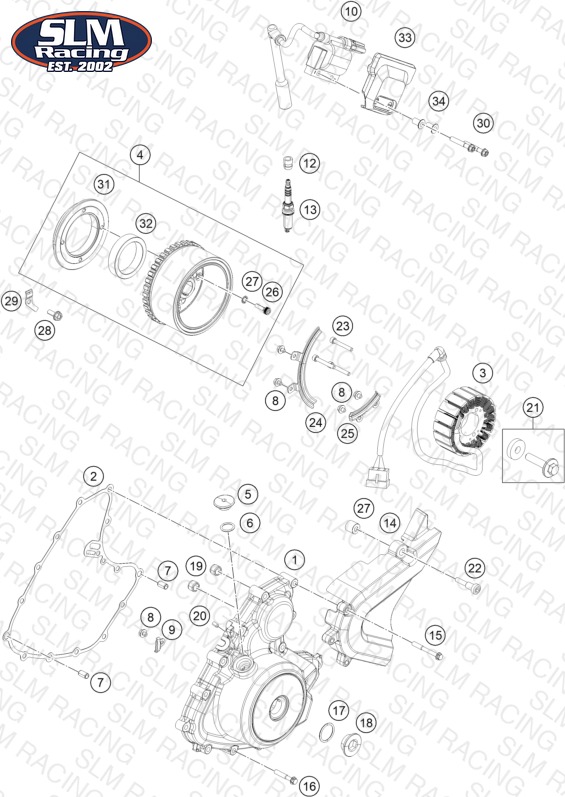

IGNITION SYSTEM
Parts (33)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 28130002044JA COVER MAGNETO-PLUG | COVER MAGNETO-PLUG | 1 | — | Check availability | |
| 2 | 93730040000 GASKET IGNITION COVER | GASKET IGNITION COVER | 1 | — | Check availability | |
| 3 | 94339004033 Stator cmpl. | Stator cmpl. | 1 | — | Check availability | |
| 4 | 28139005000 ASSEMBLY ROTOR | ASSEMBLY ROTOR | 1 | — | Check availability | |
| 5 | 93839010000 Screw plug, OT marking | Screw plug, OT marking | 1 | — | Check availability | |
| 6 | J770015824 O-RING 15,8X2,4 | O-RING 15,8X2,4 | 1 | — | Check availability | |
| 7 | 90130024000 PIN DOWEL 8X6,4X14MM | PIN DOWEL 8X6,4X14MM | 2 | — | Check availability | |
| 8 | J025060083S HH COLLAR SCREW M5X6 | HH COLLAR SCREW M5X6 | 5 | — | Check availability | |
| 9 | 90230062000 BRACKET HARNESS MAGNETO | BRACKET HARNESS MAGNETO | 1 | — | Check availability | |
| 10 | 90239006044 ignition coil cpl. with plug | ignition coil cpl. with plug | 1 | — | Check availability | View Details |
| 12 | 93839091000 Sealing boot spark plug | Sealing boot spark plug | 1 | — | Check availability | |
| 13 | 93839093000 Spark plug BOSCH VR6NEU M12X1. | Spark plug BOSCH VR6NEU M12X1. | 1 | — | Check availability | |
| 14 | 90230060002 front sprocket cover | front sprocket cover | 1 | — | Check availability | |
| 15 | J025060506 Hex collar screw M6X50 | Hex collar screw M6X50 | 3 | — | Check availability | |
| 16 | J025060353 Hex collar screw M6X35 | Hex collar screw M6X35 | 11 | — | Check availability | |
| 17 | J770024015 O-RING 24X2,5 | O-RING 24X2,5 | 3 | — | Check availability | |
| 18 | 90230094000 PLUG SCREW M24X1,5 | PLUG SCREW M24X1,5 | 1 | — | Check availability | |
| 19 | 90240018000 BUSH STARTER SHAFT | BUSH STARTER SHAFT | 2 | — | Check availability | |
| 20 | 90230066300 OIL NOZZLE | OIL NOZZLE | 1 | — | Check availability | |
| 21 | 90239005050 ROTOR SCREW CPL. | ROTOR SCREW CPL. | 1 | — | Check availability | |
| 22 | 93003082000 Bolt socket M6X1XL22 BLK stepe | Bolt socket M6X1XL22 BLK stepe | 1 | — | Check availability | |
| 23 | J912050353S AH SCREW M5X35 SELF LOCKING | AH SCREW M5X35 SELF LOCKING | 3 | — | Check availability | |
| 24 | 90230058000 PLATE HARNESS MAGNETO | PLATE HARNESS MAGNETO | 1 | — | Check availability | |
| 25 | 93730059000 PLATE HARNESS 2 | PLATE HARNESS 2 | 1 | — | Check availability | |
| 26 | 90130001001 SOCKET HEAD SCREW M6X20 | SOCKET HEAD SCREW M6X20 | 1 | — | Check availability | View Details |
| 27 | 93003081000 Distance bushing sprocket cove | Distance bushing sprocket cove | 1 | — | Check availability | |
| 28 | J028060164 BOLT FLANGE M6X16 | BOLT FLANGE M6X16 | 1 | — | Check availability | |
| 29 | 90240020002 RETAINER GEAR STARTER | RETAINER GEAR STARTER | 1 | — | Check availability | |
| 30 | 0025060356 HH collar screw M6x35 TX30 | HH collar screw M6x35 TX30 | 2 | — | Check availability | |
| 31 | 90130001000 SUPPORT FREEWHEEL CLUTCH | SUPPORT FREEWHEEL CLUTCH | 1 | — | Check availability | |
| 32 | 90140026000 FREEWHEEL CLUTCH | FREEWHEEL CLUTCH | 1 | — | Check availability | |
| 33 | 28139006050 Cover, ignition coil | Cover, ignition coil | 1 | — | Check availability | |
| 34 | 28139006040 Bushing ignition coil cover | Bushing ignition coil cover | 2 | — | Check availability |
