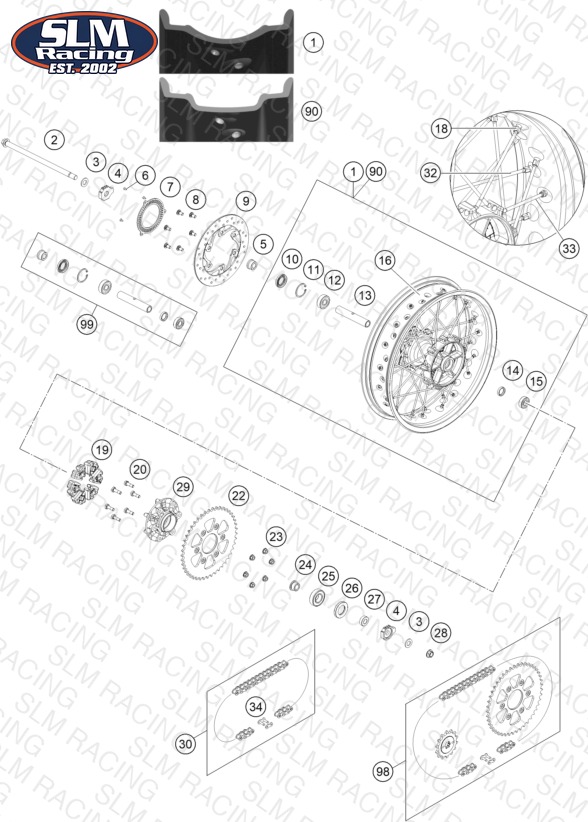

REAR WHEEL
Parts (34)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 28610001033JAA Rear wheel cpl. beige-gray | Rear wheel cpl. beige-gray Akront rim | 1 | — | Check availability | |
| 2 | 90210085000 Axle rear KT03 | Axle rear KT03 | 1 | — | Check availability | |
| 3 | 90610087000 washer 15.2x30x2 | washer 15.2x30x2 | 1 | — | Check availability | |
| 4 | 90110084000 chain tension adjuster, right | chain tension adjuster, right | 2 | — | Check availability | |
| 5 | 28110013000 Spacer, rear wheel right | Spacer, rear wheel right | 1 | — | Check availability | |
| 6 | J07046040086 Countersunk screw, M4X08 | Countersunk screw, M4X08 | 3 | — | Check availability | |
| 7 | 28142021000 Sensor wheel ABS rear | Sensor wheel ABS rear | 1 | — | Check availability | |
| 8 | J900000801900 Hexagon socket screw M8x19 | Hexagon socket screw M8x19 | 6 | — | Check availability | |
| 9 | 90110060000 rear brake disk D=230mm | rear brake disk D=230mm | 1 | — | Check availability | |
| 10 | J760264208 SHAFT SEAL RING 26X42X8 | SHAFT SEAL RING 26X42X8 | 1 | — | Check availability | |
| 11 | J472042176 Lock ring, 42x1.7 | Lock ring, 42x1.7 | 1 | — | Check availability | |
| 12 | J625063021 Grooved ball bearing 6302 | Grooved ball bearing 6302 | 1 | — | Check availability | |
| 13 | 28110011000 COLLAR BEARING | COLLAR BEARING | 1 | — | Check availability | |
| 14 | 90109011001 Fixation bearing spacer tube | Fixation bearing spacer tube | 1 | — | Check availability | |
| 15 | J625062023 BALL BEARING 6202 | BALL BEARING 6202 | 1 | — | Check availability | |
| 16 | 28110073000 Tube protector rear | Tube protector rear | 1 | — | Check availability | |
| 18 | 28110071170 Rear spoke M5/4.37/170 | Rear spoke M5/4.37/170 | 18 | — | Check availability | |
| 19 | 90210059100 rear wheel dampening rubber | rear wheel dampening rubber | 6 | — | Check availability | |
| 20 | 28110053000 Special screw M8x26 SS | Special screw M8x26 SS | 6 | — | Check availability | |
| 22 | 95810051045 Rear sprocket 45T | Rear sprocket 45T | 1 | — | Check availability | |
| 23 | 90510052000 FLANGED NUT M8X1,25 | FLANGED NUT M8X1,25 | 6 | — | Check availability | |
| 24 | 28110016000 Spacer, rear wheel left | Spacer, rear wheel left | 1 | — | Check availability | |
| 25 | J625062050 BALL BEARING 6205 | BALL BEARING 6205 | 1 | — | Check availability | |
| 26 | J760295207 SHAFT SEAL RING 29X52X7 | SHAFT SEAL RING 29X52X7 | 1 | — | Check availability | |
| 27 | 28110014000 Spacer, rear sprocket carrier | Spacer, rear sprocket carrier | 1 | — | Check availability | |
| 28 | 90210086000 wheel spindle nut, rear | wheel spindle nut, rear | 1 | — | Check availability | |
| 29 | 28110050000 Rear sprocket carrier, spoke r | Rear sprocket carrier, spoke r | 1 | — | Check availability | |
| 30 | 76910065118 chain DID 118 roll | chain DID 118 roll | 1 | — | Check availability | |
| 32 | 28110071182 Rear spoke M5/4.37/182 | Rear spoke M5/4.37/182 | 18 | — | Check availability | |
| 33 | 28109072000 Spoke nipple front M5x0.8 | Spoke nipple front M5x0.8 | 36 | — | Check availability | |
| 34 | 76910066000 Rivet link chain DID 520 VP2-T | Rivet link chain DID 520 VP2-T | — | — | Check availability | |
| 98 | 00050002114 Drivetrain kit 15Z/45Z | Drivetrain kit 15Z/45Z | — | — | Check availability | View Details |
| 99 | 90110015100 REAR WHEEL REP. KIT 390 DUKE | REAR WHEEL REP. KIT 390 DUKE | — | — | Check availability | View Details |
| 90 | 28610101044JAA Rear wheel_EXCEL VIT MY22 | Rear wheel_EXCEL VIT MY22 Excel rim | 1 | — | Check availability |
