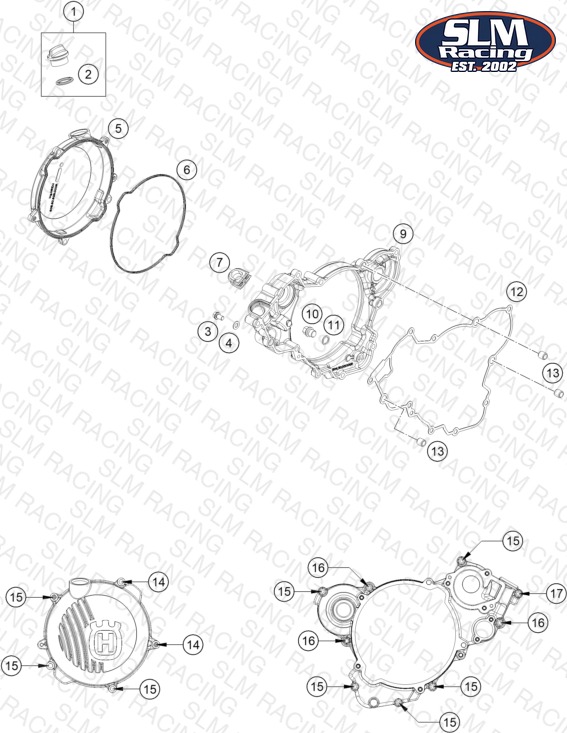

CLUTCH COVER
Parts (16)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 79430020033 Oil filler cap cmpl. M24x3 | Oil filler cap cmpl. M24x3 | 1 | — | Check availability | |
| 2 | 0770191015 O-RING 19,00X3,00 NBR | O-RING 19,00X3,00 NBR | 1 | — | Check availability | |
| 13 | 49030090000 DOWEL 9,8 X 7 X 10 | DOWEL 9,8 X 7 X 10 | 3 | — | Check availability | View Details |
| 4 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 1 | — | Check availability | |
| 5 | 50530626000JA Clutch cover | Clutch cover | 1 | — | Check availability | |
| 6 | 50430027000 GASKET OUTER CLUTCH COVER | GASKET OUTER CLUTCH COVER | 1 | — | Check availability | |
| 7 | 50437091100 Sealing element | Sealing element | 1 | — | Check availability | |
| 9 | 51730001044 Inner clutch cover cmpl. | Inner clutch cover cmpl. | 1 | — | Check availability | View Details |
| 10 | 0910100003 PLUG DIN0910-M 10X1 | PLUG DIN0910-M 10X1 | 1 | — | Check availability | |
| 11 | 0603100141 sealing ring DIN 7603 10x14x1 | sealing ring DIN 7603 10x14x1 | 1 | — | Check availability | |
| 12 | 50430025000 GASKET INNER CLUTCH COVER | GASKET INNER CLUTCH COVER | 1 | — | Check availability | |
| 3 | 0025060106 HH collar screw M6x10 TX30 | HH collar screw M6x10 TX30 | 1 | — | Check availability | |
| 15 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 8 | — | Check availability | |
| 16 | 0025060256 HH collar screw M6x25 TX30 | HH collar screw M6x25 TX30 | 3 | — | Check availability | |
| 17 | 0025060306 HH collar screw M6x30 TX30 | HH collar screw M6x30 TX30 | 1 | — | Check availability | |
| 14 | 0025060506 HH collar screw M6x50 TX30 | HH collar screw M6x50 TX30 | 2 | — | Check availability |
