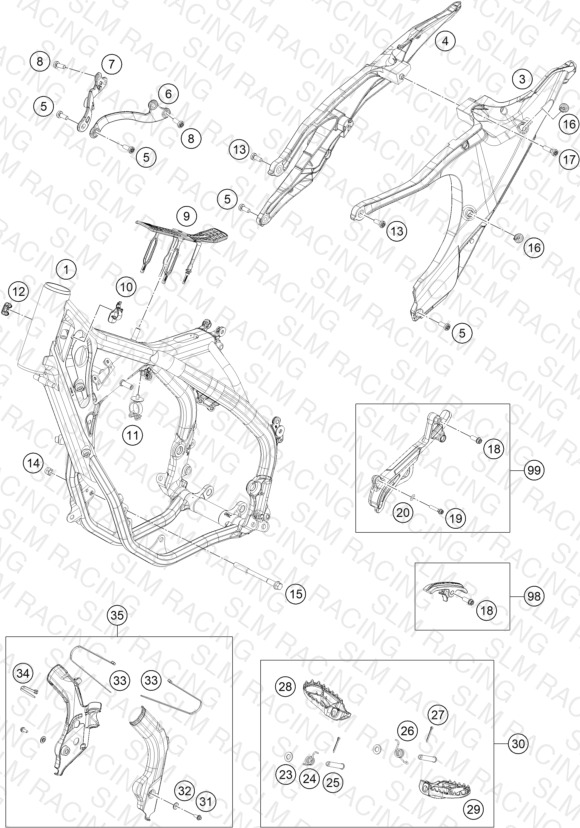

FRAME
Parts (34)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 2410310110069 Frame 241T1 | Frame 241T1 | 1 | — | Check availability | |
| 3 | 25103002210C1 Subframe, left | Subframe, left | 1 | — | Check availability | View Details |
| 4 | 25103002220C1 Subframe, right | Subframe, right | 1 | — | Check availability | View Details |
| 5 | 0035080206S SHCS M8x20 TX45 | SHCS M8x20 TX45 | 4 | — | Check availability | |
| 6 | 5170311300001S Engine brace left | Engine brace left | 1 | — | Check availability | |
| 7 | 5170311400001S Engine brace right | Engine brace right | 1 | — | Check availability | |
| 8 | 0035080156S AH-COLLAR SCREW M8X15 TORX45 | AH-COLLAR SCREW M8X15 TORX45 | 4 | — | Check availability | |
| 9 | 79607012000 TANK REST RUBBER | TANK REST RUBBER | 1 | — | Check availability | |
| 10 | 79111014010 Cable holder | Cable holder | 1 | — | Check availability | |
| 11 | 79711013010 Cable bracket d8 | Cable bracket d8 | 1 | — | Check availability | |
| 12 | 79111013010 Cover control head sheet | Cover control head sheet | 1 | — | Check availability | |
| 14 | 54310086100 SELF LOCKING NUT M10 CU WS=14 | SELF LOCKING NUT M10 CU WS=14 | 2 | — | Check availability | |
| 15 | 54603013000 engine brac.scr. M10x105 WS13 | engine brac.scr. M10x105 WS13 | 2 | — | Check availability | |
| 16 | 47106003160 quick release rubber grommet | quick release rubber grommet | 2 | — | Check availability | |
| 17 | 0035080306S AH collar screw M8x30 ISA45 | AH collar screw M8x30 ISA45 | 1 | — | Check availability | |
| 18 | 0025080306 HH collar screw M8x30 | HH collar screw M8x30 | 2 | — | Check availability | |
| 19 | 0025060406 HH collar screw M6x40 TX30 | HH collar screw M6x40 TX30 | 1 | — | Check availability | |
| 20 | 0125060003 WASHER DIN0125-A 6,4 | WASHER DIN0125-A 6,4 | 1 | — | Check availability | |
| 23 | 0125100003 washer DIN 125 A 10.5 | washer DIN 125 A 10.5 | 2 | — | Check availability | |
| 24 | 79003044000 FOOTREST SPRING R/S 2016 | FOOTREST SPRING R/S 2016 | 1 | — | Check availability | |
| 25 | 79003046000 Footpeg bolt | Footpeg bolt | 2 | — | Check availability | View Details |
| 26 | 79003045000 FOOTREST SPRING L/S 2016 | FOOTREST SPRING L/S 2016 | 1 | — | Check availability | |
| 27 | 0094032253 PIN DIN0094-3,2X25 STEEL | PIN DIN0094-3,2X25 STEEL | 2 | — | Check availability | View Details |
| 28 | 79603041100 Foot grid right EXC 2017 | Foot grid right EXC 2017 | 1 | — | Check availability | View Details |
| 29 | 79603040100 Foot grid left EXC 2017 | Foot grid left EXC 2017 | 1 | — | Check availability | View Details |
| 30 | 79603040133 Footrest-Set | Footrest-Set | 1 | — | Check availability | View Details |
| 31 | 0014050123 HH COLLAR SCREW M 5X12 WS=6 | HH COLLAR SCREW M 5X12 WS=6 | 2 | — | Check availability | |
| 32 | 54803092060 Bush f. frame protection 03 | Bush f. frame protection 03 | 2 | — | Check availability | |
| 33 | 44011076305 CABLE TIE 300/4,8MM BLACK | CABLE TIE 300/4,8MM BLACK | 2 | — | Check availability | |
| 34 | 76311093200 CABLE TIE 200MM | CABLE TIE 200MM | 1 | — | Check availability | |
| 35 | 25103094000HA Frame protection set | Frame protection set | 1 | — | Check availability | View Details |
| 98 | 50403096010 SPROCKET COVER KIT | SPROCKET COVER KIT | 1 | — | Check availability | |
| 99 | 79003053010 CHAIN SLIDING KIT BELOW CPL.16 | CHAIN SLIDING KIT BELOW CPL.16 | 1 | — | Check availability | |
| 13 | 0035080256S ISA collar screw M8x25 ISA45 | ISA collar screw M8x25 ISA45 | 2 | — | Check availability |
