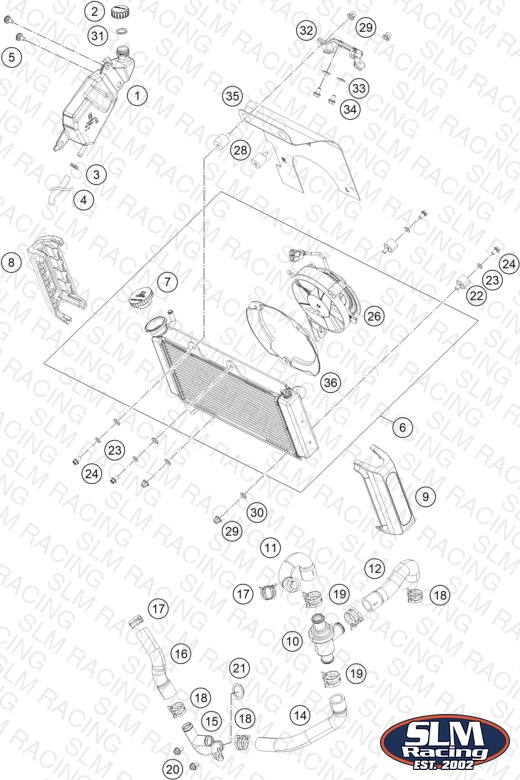

COOLING SYSTEM
Parts (34)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 10 | 90135017000 THERMOSTAT | THERMOSTAT | 1 | $39.48 | Available | 1 |
| 12 | 93035025000 Pre-formed hose | Pre-formed hose | 1 | $8.19 | Available | 1 |
| 14 | 94335026000 Pipe thermostat-joint t pcs. | Pipe thermostat-joint t pcs. | 1 | $17.20 | Available | 1 |
| 11 | 93035024000 Pre-formed hose | Pre-formed hose | 1 | $9.56 | Available | 1 |
| 16 | 90235024030 pre-formed hose radiator-t-pie | pre-formed hose radiator-t-pie | 1 | $9.89 | Available | 1 |
| 18 | 90135020001 hose clamp D26 | hose clamp D26 | 3 | $3.99 | Available | 3 |
| 17 | 90135020000 HOSE CLAMP D23 | HOSE CLAMP D23 | 2 | $3.99 | Available | 2 |
| 19 | 90135020003 HOSE CLAMP D28 | HOSE CLAMP D28 | 3 | $3.99 | Available | 3 |
| 6 | 28135010033 Radiator cmpl. | Radiator cmpl. | 1 | $609.28 | Available | 1 |
| 26 | 93535141044 radiator fan assembly | radiator fan assembly | 1 | $225.60 | Available | 1 |
| 7 | 90135016100 RADIATOR CAP | RADIATOR CAP | 1 | $21.24 | Available | 1 |
| 1 | 28635065000 TANK EXPANSION | TANK EXPANSION | 1 | $11.87 | Available | 1 |
| 2 | 90135066000 PLUG F. EXPANSION TANK | PLUG F. EXPANSION TANK | 1 | $3.99 | Available | 1 |
| 3 | 90107018011 CLAMP 10MM | CLAMP 10MM | 1 | $2.99 | Available | 1 |
| 5 | 93008040000 Screw M6X1X13 | Screw M6X1X13 | 2 | $1.99 | Available | 2 |
| 28 | 90235001001 silentbloc M6 | silentbloc M6 | 2 | $6.46 | Available | 2 |
| 22 | 90135001001 silentbloc M6 | silentbloc M6 | 2 | $6.26 | Available | 2 |
| 29 | J926060000 FLANGED NUT M6 WS10 SELF LOCK. | FLANGED NUT M6 WS10 SELF LOCK. | 4 | $2.99 | Available | 4 |
| 24 | J025060103 HH COLLAR SCREW M6X10 SW10 | HH COLLAR SCREW M6X10 SW10 | 4 | $1.99 | Available | 4 |
| 23 | J127060001 Spring ring B6 | Spring ring B6 | 4 | $1.99 | Available | 4 |
| 30 | 90108015020 WASHER | WASHER | 4 | $1.99 | Available | 4 |
| 31 | 90102055000 COMPENSATING TANK O-RING | COMPENSATING TANK O-RING | 1 | $1.99 | Available | 1 |
| 8 | 28135032000 Radiator cover, right | Radiator cover, right only for svartpilen | 1 | $7.69 | Available | 1 |
| 9 | 28135031000 Radiator cover, left | Radiator cover, left only for svartpilen | 1 | $7.69 | Available | 1 |
| 32 | 93035004000 Support | Support | 1 | $3.99 | Available | 1 |
| 33 | J125090006 Washer 9,2X16X2 | Washer 9,2X16X2 | 2 | $1.99 | Available | 2 |
| 34 | J025060101 Hexagon screw M6X10 | Hexagon screw M6X10 | 2 | $1.99 | Available | 2 |
| 35 | 93005090000 shield | shield | 1 | $7.03 | Available | 1 |
| 15 | 90635071033 COOLANT PIPE T | COOLANT PIPE T | 1 | $37.39 | Available | 1 |
| 20 | J025060141 Hex collar screw M6X14 | Hex collar screw M6X14 | 2 | $1.99 | Available | 2 |
| 21 | J770018530 O-RING 18,5X3 | O-RING 18,5X3 | 1 | $2.99 | Available | 1 |
| 36 | 28135041010 shroud | shroud | 1 | $16.05 | Available | 1 |
| 8 | 28635032000 Radiator cover right 401 Vitpi | Radiator cover right 401 Vitpi only for Vitpilen | 1 | $7.69 | Available | 1 |
| 9 | 28635031000 Radiator cover left 401 Vitpil | Radiator cover left 401 Vitpil only for Vitpilen | 1 | $7.69 | Available | 1 |
