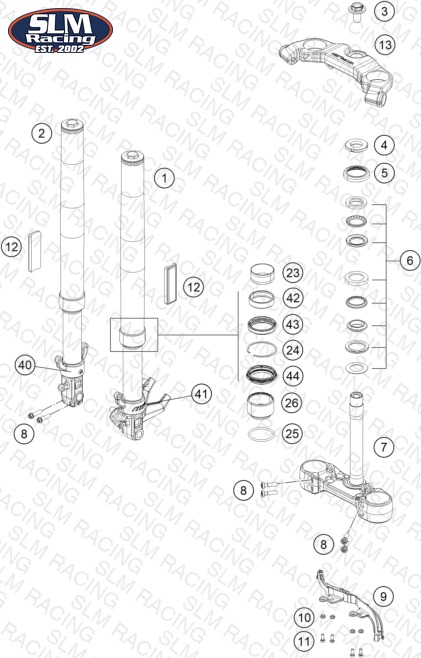

FRONT FORK, TRIPLE CLAMP

← →

Parts (22)

#	Part Number	Description	Qty	Price	Status
1	28101401000 Fork leg left	Fork leg left	1	—	Obsolete	View Details
2	28101402000 Fork leg right	Fork leg right	1	—	Obsolete	View Details
3	90501044000 steering head screw	steering head screw	1	$16.38	Available	1
4	90101036100 Adjusting ring steering head	Adjusting ring steering head	1	$6.15	Available	1
5	90101086000 protection cap	protection cap	1	$3.99	Available	1
6	90101080044 STEERING HEAD BEARING-KIT	STEERING HEAD BEARING-KIT	1	$41.57	Available	1
7	28601032033 BRACKET ASSEMBLY UNDER	BRACKET ASSEMBLY UNDER	1	$470.35	Available	1
8	90501045000 AH SCREW M8X1.25X30	AH SCREW M8X1.25X30	4	$1.99	Available	4
9	28113026000 Brake line holder, front	Brake line holder, front	1	$6.15	Available	1
10	90113055010 sleeve for hose clamp	sleeve for hose clamp	4	$1.99	Available	4
11	J021060156 AH SCREW M6X15 10.9	AH SCREW M6X15 10.9	4	$1.99	Available	4
12	90212582001 side reflector, front	side reflector, front	2	$6.46	Available	2
13	28601034033 Triple clamp top	Triple clamp top	1	$367.94	Available	1
23	43578014 GUIDE BUSH LOWER	GUIDE BUSH LOWER	2	$19.35	Available	2
24	43578044 CIRCLIP	CIRCLIP	2	$4.99	Available	2
25	43578219 O-ring 40x2,5 VMQ70 red ISO 36	O-ring 40x2,5 VMQ70 red ISO 36	2	$4.83	Available	2
26	90201025000 FORK FRONT DUST COVER	FORK FRONT DUST COVER	2	$4.99	Available	2
40	93001007033 assembly fork pipe rh.	assembly fork pipe rh.	1	$276.86	Available	1
41	93001006033 assembly fork pipe lh.	assembly fork pipe lh.	1	$337.69	Available	1
42	43570618 Guide bushing 43x47x12	Guide bushing 43x47x12	2	$13.74	Available	2
43	43570623 Shaft seal SKF 43x52,9x11,4 bl	Shaft seal SKF 43x52,9x11,4 bl	2	$19.57	Available	2
44	43570723 Dirt scarper SKF 43mm red	Dirt scarper SKF 43mm red	2	$19.68	Available	2
