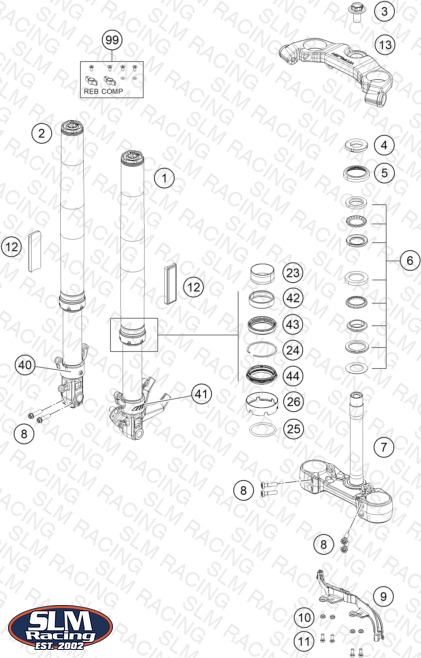

FRONT FORK, TRIPLE CLAMP
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 28101001000 Fork leg left | Fork leg left | 1 | $1075.02 | Available | 1 |
| 3 | 90501044000 steering head screw | steering head screw | 1 | $16.38 | Available | 1 |
| 4 | 90101036100 Adjusting ring steering head | Adjusting ring steering head | 1 | $6.15 | Available | 1 |
| 5 | 90101086000 protection cap | protection cap | 1 | $3.99 | Available | 1 |
| 6 | 90101080044 STEERING HEAD BEARING-KIT | STEERING HEAD BEARING-KIT | 1 | $41.57 | Available | 1 |
| 7 | 28601032033 BRACKET ASSEMBLY UNDER | BRACKET ASSEMBLY UNDER | 1 | $470.35 | Available | 1 |
| 8 | 90501045000 AH SCREW M8X1.25X30 | AH SCREW M8X1.25X30 | 6 | $1.99 | Available | 6 |
| 9 | 28113026000 Brake line holder, front | Brake line holder, front | 1 | $6.15 | Available | 1 |
| 10 | 90113055010 sleeve for hose clamp | sleeve for hose clamp | 4 | $1.99 | Available | 4 |
| 11 | J021060156 AH SCREW M6X15 10.9 | AH SCREW M6X15 10.9 | 4 | $1.99 | Available | 4 |
| 12 | 90212582001 side reflector, front | side reflector, front | 2 | $6.46 | Available | 2 |
| 13 | 28601034033 Triple clamp top | Triple clamp top | 1 | $367.94 | Available | 1 |
| 2 | 28101002000 Fork leg right | Fork leg right | 1 | $934.77 | Available | 1 |
| 42 | 43570618 Guide bushing 43x47x12 | Guide bushing 43x47x12 | 2 | $13.74 | Available | 2 |
| 43 | 43570623 Shaft seal SKF 43x52,9x11,4 bl | Shaft seal SKF 43x52,9x11,4 bl | 2 | $19.57 | Available | 2 |
| 44 | 43570723 Dirt scarper SKF 43mm red | Dirt scarper SKF 43mm red | 2 | $19.68 | Available | 2 |
| 40 | 93001007033 assembly fork pipe rh. | assembly fork pipe rh. | 1 | $276.86 | Available | 1 |
| 41 | 93001006033 assembly fork pipe lh. | assembly fork pipe lh. | 1 | $337.69 | Available | 1 |
| 23 | 43578014 GUIDE BUSH LOWER | GUIDE BUSH LOWER | 2 | $19.35 | Available | 2 |
| 24 | 43578044 CIRCLIP | CIRCLIP | 2 | $4.99 | Available | 2 |
| 25 | 43578219 O-ring 40x2,5 VMQ70 red ISO 36 | O-ring 40x2,5 VMQ70 red ISO 36 | 2 | $4.83 | Available | 2 |
| 26 | 43578206 Fork protection ring d43 | Fork protection ring d43 | 2 | $2.41 | Available | 2 |
| 99 | RP10021 Adjuster kit screw cap | Adjuster kit screw cap | — | $6.70 | Available | 1 |
