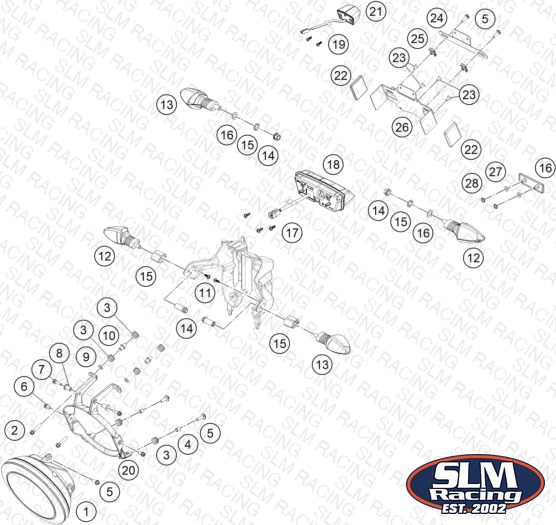

LIGHTING SYSTEM
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 28514001000 HEADLIGHT | HEADLIGHT | 1 | — | Check availability | |
| 2 | 0025060306 HH collar screw M6x30 TX30 | HH collar screw M6x30 TX30 | 4 | — | Check availability | |
| 3 | 28514010110 Rubber grommet 8x12x16x9.5 | Rubber grommet 8x12x16x9.5 | 6 | — | Check availability | View Details |
| 4 | 28514010020 bushing for grommet 9x12 | bushing for grommet 9x12 | 2 | — | Check availability | |
| 5 | 0024060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 5 | — | Check availability | |
| 6 | 0025060126 HH collar screw M6x12 TX30 | HH collar screw M6x12 TX30 | 3 | — | Check availability | |
| 7 | 0025050206 HH collar screw M5x20 TX30 | HH collar screw M5x20 TX30 | 2 | — | Check availability | |
| 8 | 60008008050 blind plug nut M5 WN16A | blind plug nut M5 WN16A | 2 | — | Check availability | |
| 9 | 0125060003 WASHER DIN0125-A 6,4 | WASHER DIN0125-A 6,4 | 2 | — | Check availability | |
| 10 | 28514060010 bushing for speedometer holder | bushing for speedometer holder | 2 | — | Check availability | |
| 11 | 0081050121 EJOT PT screw K50x12 | EJOT PT screw K50x12 | 2 | — | Check availability | |
| 12 | 60114026000 FLASHER CPL.FRONT R/S REAR L/S | FLASHER CPL.FRONT R/S REAR L/S | 2 | — | Check availability | |
| 13 | 60114025000 FLASHER CPL.FRONT L/S REAR R/S | FLASHER CPL.FRONT L/S REAR R/S | 2 | — | Check availability | |
| 14 | 28514525020 Nut turn signal support Adapte | Nut turn signal support Adapte | 2 | — | Check availability | |
| 15 | 28514525010 Turn signal support adapter US | Turn signal support adapter US | 2 | — | Check availability | |
| 17 | 0081050141 EJOT PT screw K50x14 | EJOT PT screw K50x14 | 3 | — | Check availability | |
| 18 | 28514140000 Tail light SAE | Tail light SAE | 1 | — | Check availability | |
| 19 | 0081040121 EJOT Delta PT K40x12 | EJOT Delta PT K40x12 | 2 | — | Check availability | |
| 20 | 2851401000056 Head Lamp Support | Head Lamp Support | 1 | — | Check availability | |
| 21 | 60314047000 license plate lighting | license plate lighting | 1 | — | Check availability | |
| 16 | 69008021160 special screw M5x12 | special screw M5x12 | 1 | — | Check availability | |
| 28 | 60408061060 LOCK WASHER D5 | LOCK WASHER D5 | 2 | — | Check availability | |
| 27 | 60408061050 RUBBER 14X6.5X2.3MM | RUBBER 14X6.5X2.3MM | 2 | — | Check availability | |
| 24 | 28512580050 bracket rear reflector US | bracket rear reflector US | 1 | — | Check availability | |
| 26 | 28512581000 Bracket side reflectror US | Bracket side reflectror US | 1 | — | Check availability | |
| 25 | 54603048100 clip nut M6 | clip nut M6 | 2 | — | Check availability | |
| 22 | 16512180100 SIDE REFLECTOR RED REAR | SIDE REFLECTOR RED REAR | 2 | — | Check availability | |
| 23 | 0991060126 FLAT HEAD SCREW DIN7991-M 6X12 | FLAT HEAD SCREW DIN7991-M 6X12 | 4 | — | Check availability |
