Husqvarna

EXHAUST SYSTEM

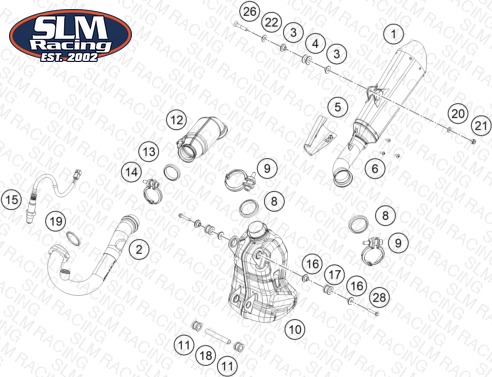

Assembly schematic

Parts (23)

#Part NumberPrice
128505082000
Silencer USA
—
293805007000
header cpl.
—
358405050065
collar bushing 8.5x12x23.5x10
—
454305068100
damp. component silicone grey
—
528505011000
Heat protection
—
678105081010
SCREW TORX M5X10
—
893805005100
GASKET PIPE C
—
993805058100
CLAMP DIA 60
—
1093505050000
premuffler
—
1190105068100
damper, bottom
—
1293605008000
catalytic converter cpl.
—
1393805005000
GASKET PIPE B
—
1493805058000
CLAMP DIA 54
—
1590141090000
oxygen sensor
—
1690205086001
muffler mounting spacer bushin
—
1790205068000
damper, bottom
—
1890105084000
muffler mounting tube
—
1990105004000
exhaust flange gasket
—
200125080003
washer DIN 125 A -8.4
—
2154310086200
Self locking nut M8 10.9
—
2260405069000
Shape disc Alu
—
260019080456
countersunk screw M8x45 TX45
—
280025060356
HH collar screw M6x35 TX30
—
