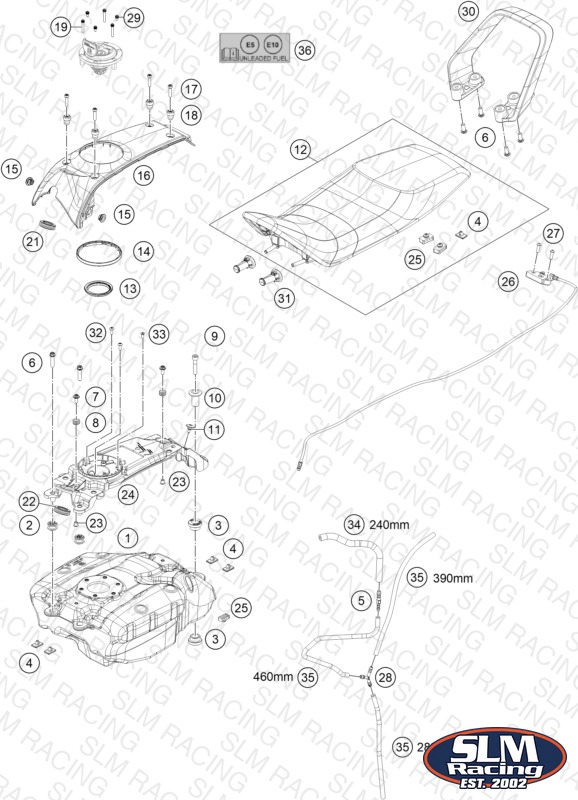

TANK, SEAT
Parts (35)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 28507013099 fuel tank cpl. | fuel tank cpl. | 1 | — | Check availability | |
| 2 | 69007027000 rubber grommet, tank mounting | rubber grommet, tank mounting | 2 | — | Check availability | |
| 3 | 61007065000 collar bushing, front tank hol | collar bushing, front tank hol | 2 | — | Check availability | |
| 4 | 28507047030 Seat rubber | Seat rubber | 5 | — | Check availability | |
| 5 | 28515023000 Reducer GRS8-6 | Reducer GRS8-6 | 1 | — | Check availability | |
| 6 | 0025080306 HH collar screw M8x30 | HH collar screw M8x30 | 6 | — | Check availability | |
| 7 | 0024060156 HH collar screw M6x15 TX30 | HH collar screw M6x15 TX30 | 4 | — | Check availability | |
| 8 | 31008060000 rubber grommet D=8mm open | rubber grommet D=8mm open | 2 | — | Check availability | |
| 9 | 0912080403 AH collar screw DIN0912 M8x40 | AH collar screw DIN0912 M8x40 | 1 | — | Check availability | |
| 10 | 61007060000 collar bushing, bearing, outsi | collar bushing, bearing, outsi | 1 | — | Check availability | View Details |
| 11 | 77407011000 screw, seat M5 | screw, seat M5 | 1 | — | Check availability | |
| 12 | 28507040100 Rider seat | Rider seat | 1 | — | Check availability | |
| 13 | 21007008151 gasket tank insert | gasket tank insert | 1 | — | Check availability | |
| 14 | 28507008060 gasket, upper tank insert | gasket, upper tank insert | 1 | — | Check availability | |
| 15 | 47106003160 quick release rubber grommet | quick release rubber grommet | 2 | — | Check availability | |
| 16 | 28508057000ABB Cover, ignition lock Cer. wh. | Cover, ignition lock Cer. wh. | 1 | — | Check availability | |
| 17 | 014580060251 Cap hd. screw ISO 14580-M6x25- | Cap hd. screw ISO 14580-M6x25- | 4 | — | Check availability | |
| 18 | 28508057010 Bushing ignition switch | Bushing ignition switch | 4 | — | Check availability | |
| 19 | 014579050301 Screw ISO 14579-M5x30-8.8-P3R | Screw ISO 14579-M5x30-8.8-P3R | 3 | — | Check availability | |
| 21 | 28507059000 rubber grommet, ignition lock | rubber grommet, ignition lock | 1 | — | Check availability | |
| 22 | 28508058020 rubber grommet, adapter | rubber grommet, adapter | 1 | — | Check availability | |
| 23 | 58314060050 spacer bushing for speedometer | spacer bushing for speedometer | 2 | — | Check availability | View Details |
| 24 | 28508058000 Tank Spider | Tank Spider | 1 | — | Check availability | |
| 25 | 28503002010 rubber support | rubber support | 4 | — | Check availability | |
| 26 | 28507050050 Seat lever assy | Seat lever assy | 1 | — | Check availability | |
| 27 | 0738060181 BHCS ISO 7380 M6X18 | BHCS ISO 7380 M6X18 | 2 | — | Check availability | |
| 28 | 60015025100 Y-CONNECTING PIECE YS 6-6-6 06 | Y-CONNECTING PIECE YS 6-6-6 06 | 1 | — | Check availability | |
| 29 | 014579050081 Screw ISO 14579 M5x08-8.8-P3R | Screw ISO 14579 M5x08-8.8-P3R | 3 | — | Check availability | |
| 30 | 28512010000 Passenger grip | Passenger grip | 1 | — | Check availability | |
| 31 | 28507040030 rubber grommet, seat cover | rubber grommet, seat cover | 2 | — | Check availability | |
| 32 | 58605083014 Oval head screw M5x14 TX25 | Oval head screw M5x14 TX25 | 2 | — | Check availability | |
| 33 | 0025050126 HH collar screw M5x12 TX30 | HH collar screw M5x12 TX30 | 1 | — | Check availability | |
| 34 | 28515024001 Hose 8x13 FKM/ECO | Hose 8x13 FKM/ECO | — | — | Check availability | |
| 35 | 78015019001 HOSE EPA D=6/10 PER METER | HOSE EPA D=6/10 PER METER | — | — | Check availability | View Details |
| 36 | 21007098000 Sticker fuel labelling | Sticker fuel labelling | 1 | — | Check availability |
