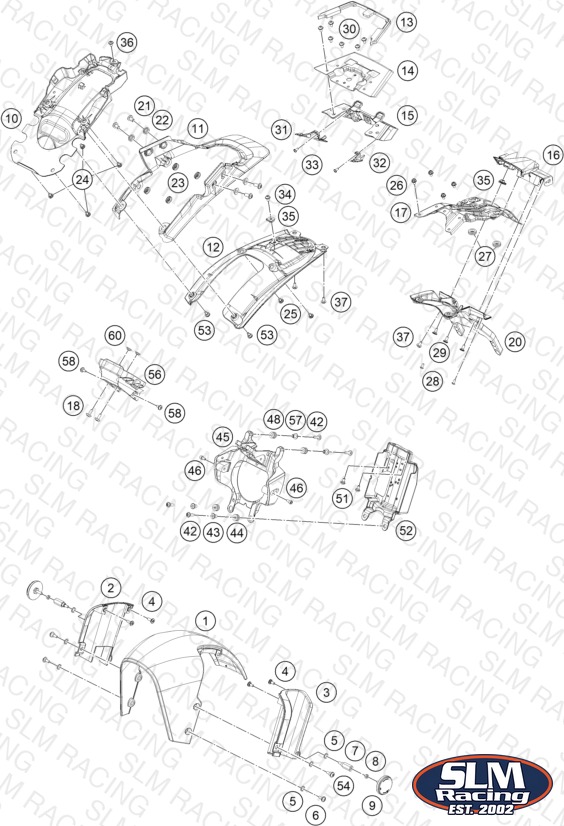

MASK, FENDERS
Parts (47)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A61708110000CC Front fender | Front fender | 1 | — | Check availability | |
| 2 | A61708109020 fender brace right | fender brace right | 1 | — | Check availability | |
| 3 | A61708109010 fender brace left | fender brace left | 1 | — | Check availability | |
| 4 | J900000601901 screw socket step M6x1 | screw socket step M6x1 | 4 | — | Check availability | |
| 5 | 93009059000 Washer nylon | Washer nylon | 6 | — | Check availability | |
| 6 | J031050161 Panhead screw with shoulder | Panhead screw with shoulder | 2 | — | Check availability | |
| 7 | J900000601700 Special screw M6x16.5 | Special screw M6x16.5 | 2 | — | Check availability | |
| 8 | J910000600505 NUT HEX THICK | NUT HEX THICK | 2 | — | Check availability | |
| 9 | 94512082000 Side reflector | Side reflector | 2 | — | Check availability | |
| 10 | A61708019000 TRAY UNDER | TRAY UNDER | 1 | — | Check availability | |
| 11 | A61708018010 COWL SEAT | COWL SEAT | 1 | — | Check availability | |
| 12 | A61708013000 FENDER REAR | FENDER REAR | 1 | — | Check availability | |
| 13 | A61703002041 DAMPER SEAT REAR | DAMPER SEAT REAR | 1 | — | Check availability | |
| 14 | A61703002040 rear subframe bracket | rear subframe bracket | 1 | — | Check availability | |
| 15 | A61714040050 STRUCTURE LAMP TAIL | STRUCTURE LAMP TAIL | 1 | — | Check availability | |
| 16 | A61708015010 COVER HOLDER PLATE NUMBER | COVER HOLDER PLATE NUMBER | 1 | — | Check availability | |
| 17 | A61708028000 STRUCTURE HOLDER PLATE NUMBER | STRUCTURE HOLDER PLATE NUMBER | 1 | — | Check availability | |
| 18 | J900000601608 Special screw M6x16 | Special screw M6x16 | 2 | — | Check availability | |
| 20 | A61708015000 HOLDER PLATE NUMBER REAR | HOLDER PLATE NUMBER REAR | 1 | — | Check availability | |
| 21 | J900000801602 screw button head M8x1.25 | screw button head M8x1.25 | 4 | — | Check availability | |
| 22 | 0800000900604 COLLAR | COLLAR | 4 | — | Check availability | |
| 23 | J650002001400 Rubber grommet | Rubber grommet | 4 | — | Check availability | |
| 24 | J900000601207 SCREW SOCKET STEP M6X1 | SCREW SOCKET STEP M6X1 | 4 | — | Check availability | |
| 26 | J025060101 Hexagon screw M6X10 | Hexagon screw M6X10 | 4 | — | Check availability | |
| 27 | J650002201400 GROMMET | GROMMET | 2 | — | Check availability | |
| 28 | 90508041010 SCREW K50X12 | SCREW K50X12 | 2 | — | Check availability | |
| 29 | J900000601501 screw socket step M6x1 | screw socket step M6x1 | 3 | — | Check availability | |
| 30 | 90508006001 SOCKET HEAD BOLT M6X12 | SOCKET HEAD BOLT M6X12 | 6 | — | Check availability | |
| 31 | A61714040070 COVER STRUCTURE LAMP TAIL RH | COVER STRUCTURE LAMP TAIL RH | 1 | — | Check availability | |
| 32 | A61714040060 COVER STRUCTURE LAMP TAIL LH | COVER STRUCTURE LAMP TAIL LH | 1 | — | Check availability | |
| 35 | 93003077000 Clip nut M6 | Clip nut M6 | 1 | — | Check availability | |
| 36 | 90808073000 SPECIAL SCREW M6X1X10 | SPECIAL SCREW M6X1X10 | 1 | — | Check availability | |
| 37 | J900000601504 BOLT FLANGED STEP M6X1 | BOLT FLANGED STEP M6X1 | 2 | — | Check availability | |
| 42 | J900000602300 Oval head screw with hex. sock | Oval head screw with hex. sock | 4 | — | Check availability | |
| 43 | J800000601301 Bushing 6.2x13.3x15.5 | Bushing 6.2x13.3x15.5 | 2 | — | Check availability | |
| 44 | 93014017000 Rubber bushing | Rubber bushing | 2 | — | Check availability | |
| 45 | A61714010000C1 STRUCTURE H-LAMP JU181710 BLCK | STRUCTURE H-LAMP JU181710 BLCK | 1 | — | Check availability | |
| 48 | J650001701300 GROMMET | GROMMET | 4 | — | Check availability | |
| 51 | J900000601203 Linsenkopf-Schraube M6x20 | Linsenkopf-Schraube M6x20 | 2 | — | Check availability | |
| 52 | A61711083010 COVER LAMP HEAD REAR | COVER LAMP HEAD REAR | 1 | — | Check availability | |
| 53 | J900000601505 BOLT FLANGED STEP M6X1 | BOLT FLANGED STEP M6X1 | 2 | — | Check availability | |
| 54 | J900000602010 screw button head step M6x1 | screw button head step M6x1 | 2 | — | Check availability | |
| 56 | A61714060000 HOLDER SPEEDOMETER | HOLDER SPEEDOMETER | 1 | — | Check availability | |
| 57 | J800000601300 SLEEVE | SLEEVE | 2 | — | Check availability | |
| 58 | J031050101 screw butn hd-m5x0.8xl10xblkxs | screw butn hd-m5x0.8xl10xblkxs | 2 | — | Check availability | |
| 60 | 93035033010 Washer | Washer | 2 | — | Check availability | |
| 46 | J900000601208 BOLT SOCKET-M6X1XL12XCL8.8XBLA | BOLT SOCKET-M6X1XL12XCL8.8XBLA | 2 | — | Check availability |
