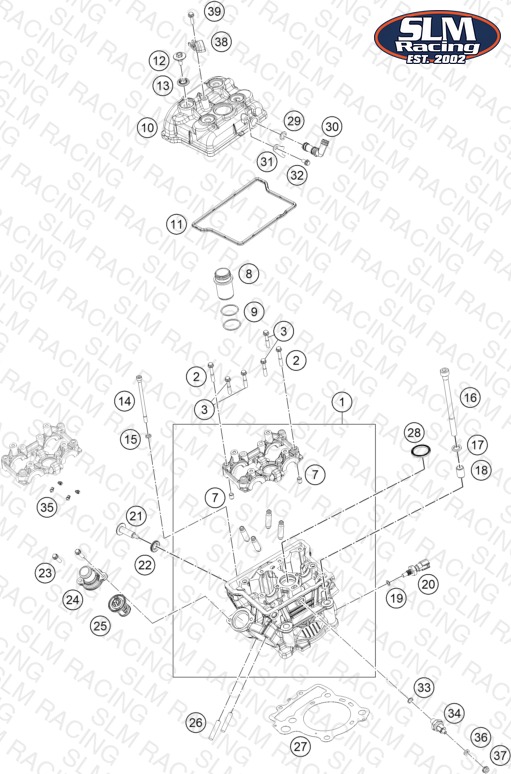

CYLINDER HEAD
Parts (35)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 96336020033C1 CYL HEAD + CAMHOLDER JP511048 | CYL HEAD + CAMHOLDER JP511048 | 1 | $283.57 | Available | 1 |
| 2 | J900000604003 BOLT-FLANGE-KAE ST-F DIA-06 L- | BOLT-FLANGE-KAE ST-F DIA-06 L- | 2 | $1.99 | Available | 2 |
| 3 | J025060359 Hexagon screw M6X35 | Hexagon screw M6X35 | 4 | $1.99 | Available | 4 |
| 7 | J800000601002 Dowel 8x6.3x10 | Dowel 8x6.3x10 | 2 | $1.99 | Available | 2 |
| 8 | 90236074000 SPARK PLUG SHAFT | SPARK PLUG SHAFT | 1 | $21.59 | Backorder — Restocking | 1 |
| 9 | J770029819 O-RING 29,8X1,9 | O-RING 29,8X1,9 | 2 | $2.99 | Available | 2 |
| 10 | 96336052000C1 Valve cover | Valve cover | 1 | $33.65 | Out of Stock | Notify Me |
| 11 | 96336053000 GASKET COVER HEAD CYLINDER | GASKET COVER HEAD CYLINDER | 1 | $14.20 | Available | 1 |
| 12 | 90136052020 VALVE COVER SCREW | VALVE COVER SCREW | 4 | $3.99 | Available | 4 |
| 13 | J790001102300 WASHER SEAL | WASHER SEAL | 4 | $2.99 | Available | 4 |
| 14 | J912061023 SOCKET HEAD SCREW M6X102 | SOCKET HEAD SCREW M6X102 | 2 | $4.99 | Available | 2 |
| 15 | J125070003 WASHER 7X11X2 | WASHER 7X11X2 | 2 | $1.99 | Available | 2 |
| 16 | J912101449 SOCKET HEAD SCREW M10X144 | SOCKET HEAD SCREW M10X144 | 4 | $7.84 | Available | 4 |
| 17 | 90130080000 WASHER 11,2X20X2 | WASHER 11,2X20X2 | 4 | $1.99 | Available | 4 |
| 18 | 90130003007 DOWEL D14 | DOWEL D14 | 2 | $2.99 | Available | 2 |
| 19 | J770000817800 O-ring 7.65x1.78 | O-ring 7.65x1.78 | 1 | $1.99 | Available | 1 |
| 20 | 90135047000 TEMPERATURE SENSOR | TEMPERATURE SENSOR | 1 | $27.59 | Backorder — Restocking | 1 |
| 21 | J900000604601 screw | screw | 1 | $2.99 | Out of Stock | Notify Me |
| 23 | J025060201 HH COLLAR SCREW M6X20 | HH COLLAR SCREW M6X20 | 2 | $1.99 | Available | 2 |
| 24 | 96235014000 COVER THERMOSTAT | COVER THERMOSTAT | 1 | $6.92 | Available | 1 |
| 25 | 96335017000 UNIT THERMOSTAT | UNIT THERMOSTAT | 1 | $26.21 | Available | 1 |
| 26 | 90136020001 STUD M8 | STUD M8 | 2 | $2.99 | Available | 2 |
| 27 | 96330036000 GASKET HEAD CYLINDER | GASKET HEAD CYLINDER | 1 | $32.77 | Available | 1 |
| 28 | 90236054000 GASKET SPARK PLUG SHAFT | GASKET SPARK PLUG SHAFT | 1 | $3.99 | Available | 1 |
| 29 | J770001224000 O RING | O RING | 1 | $0.99 | Available | 1 |
| 30 | 96336082000 PIPE BREATHER | PIPE BREATHER | 1 | $1.99 | Available | 1 |
| 31 | 96236052020 PLATE STOPPER | PLATE STOPPER | 1 | $0.99 | Available | 1 |
| 32 | J900000601004 BOLT FLANGE SMALL-M6X1XL10XDAC | BOLT FLANGE SMALL-M6X1XL10XDAC | 1 | $0.99 | Available | 1 |
| 33 | 90138091001 O-RING | O-RING | 1 | $2.99 | Available | 1 |
| 34 | 90138091000 OIL PRESSURE SENSOR | OIL PRESSURE SENSOR | 1 | $19.74 | Available | 1 |
| 35 | 90130064000 OIL JET | OIL JET | 4 | $7.14 | Available | 4 |
| 36 | J127060001 Spring ring B6 | Spring ring B6 | 1 | $1.99 | Available | 1 |
| 37 | J926060000 FLANGED NUT M6 WS10 SELF LOCK. | FLANGED NUT M6 WS10 SELF LOCK. | 1 | $2.99 | Available | 1 |
| 38 | 96339028000 clamp | clamp | 1 | $1.99 | Out of Stock | Notify Me |
| 39 | J900000601406 bolt flanged M6x1 | bolt flanged M6x1 | 1 | $0.99 | Out of Stock | Notify Me |
