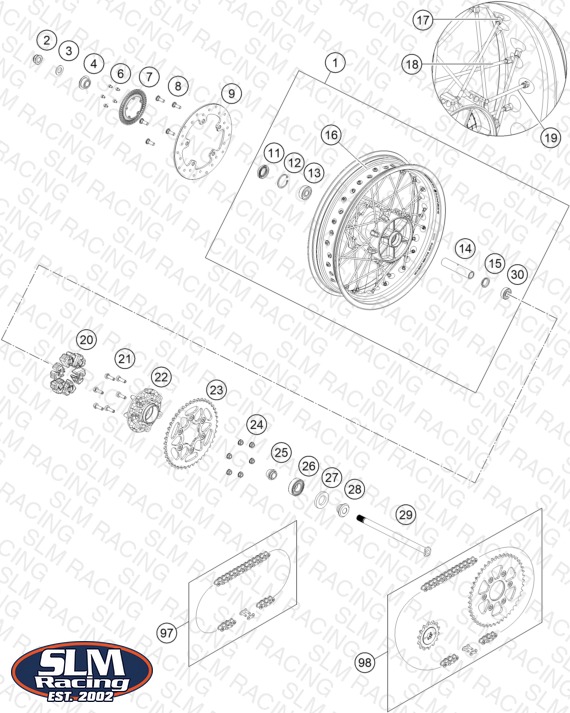

REAR WHEEL
Parts (30)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A61510001044C1 Rear Wheel Assembly HQV 401 | Rear Wheel Assembly HQV 401 | 1 | — | Check availability | |
| 9 | 96310060000 DISC BRAKE DIA 240 | DISC BRAKE DIA 240 | 1 | — | Check availability | |
| 7 | 94542020000 Sensor wheel, front | Sensor wheel, front | 1 | — | Check availability | |
| 22 | 28110050000 Rear sprocket carrier, spoke r | Rear sprocket carrier, spoke r | 1 | — | Check availability | |
| 23 | 96310051043 rear sprocket 43T | rear sprocket 43T | 1 | — | Check availability | |
| 21 | 28110053000 Special screw M8x26 SS | Special screw M8x26 SS | 6 | — | Check availability | |
| 24 | 90510052000 FLANGED NUT M8X1,25 | FLANGED NUT M8X1,25 | 6 | — | Check availability | |
| 26 | J625062050 BALL BEARING 6205 | BALL BEARING 6205 | 1 | — | Check availability | |
| 27 | J760295207 SHAFT SEAL RING 29X52X7 | SHAFT SEAL RING 29X52X7 | 1 | — | Check availability | |
| 13 | J410001701400 Ball bearing 17x47x14 | Ball bearing 17x47x14 | 1 | — | Check availability | |
| 12 | J710004717501 CIRCLIP 47X17 | CIRCLIP 47X17 | 1 | — | Check availability | |
| 20 | 90210059100 rear wheel dampening rubber | rear wheel dampening rubber | 6 | — | Check availability | |
| 8 | 90110062000 SPECIAL SCREW M8X25 SELF LOCK. | SPECIAL SCREW M8X25 SELF LOCK. | 5 | — | Check availability | |
| 30 | J410001701200 Ball bearing | Ball bearing | 1 | — | Check availability | |
| 11 | J760304708 SHAFT SEAL RING 30X47X8 | SHAFT SEAL RING 30X47X8 | 1 | — | Check availability | |
| 14 | A61710011000 COLLAR | COLLAR | 1 | — | Check availability | |
| 6 | J900000500800 BOLT SOCKET M5X0.8 | BOLT SOCKET M5X0.8 | 5 | — | Check availability | |
| 29 | 96310085000 rear wheel axle | rear wheel axle | 1 | — | Check availability | |
| 25 | A61710016000 SPACER | SPACER | 1 | — | Check availability | |
| 3 | J690001700300 washer 17x2.6 | washer 17x2.6 | 1 | — | Check availability | |
| 2 | 96310086000 nut rear wheel axle | nut rear wheel axle | 1 | — | Check availability | |
| 28 | 96310011000 Rear wheel bushing | Rear wheel bushing | 1 | — | Check availability | |
| 4 | J800001701700 collar | collar | 1 | — | Check availability | |
| 15 | A61710015000 SUPPORT SPACER | SUPPORT SPACER | 1 | — | Check availability | |
| 18 | A61710071177 Spoke | Spoke | 18 | — | Check availability | |
| 19 | A61710071170 Spoke | Spoke | 18 | — | Check availability | |
| 17 | 28510072100 Spoke nipple M5x0.8 | Spoke nipple M5x0.8 | 36 | — | Check availability | |
| 16 | 28110073000 Tube protector rear | Tube protector rear | 1 | — | Check availability | |
| 97 | 76910065118 chain DID 118 roll | chain DID 118 roll | 1 | — | Check availability | |
| 98 | SPA214G433K118B drivetrain kit 14Z/43Z | drivetrain kit 14Z/43Z | 1 | — | Check availability |
