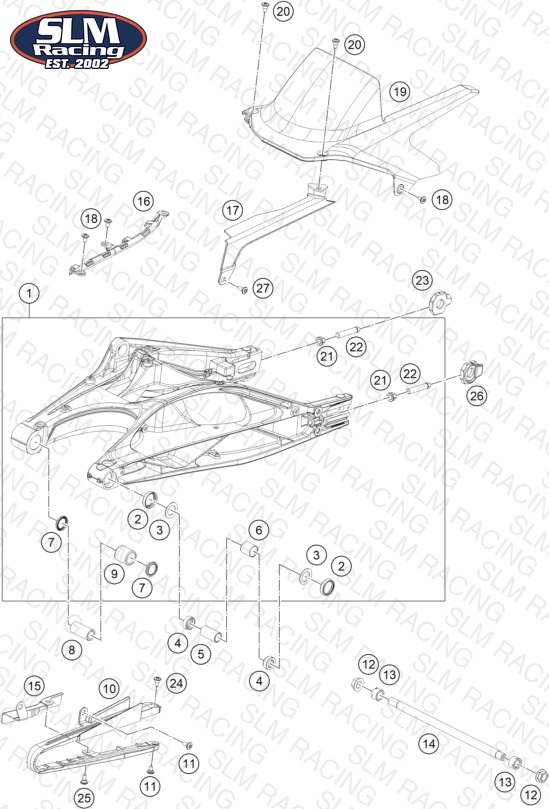

SWING ARM
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 96304030000C1 KIT SWING ARM ASSLY D-390 EL O | KIT SWING ARM ASSLY D-390 EL O | 1 | $487.29 | Available | 1 |
| 6 | 96304031000 BUSH | BUSH | 1 | $3.99 | Available | 1 |
| 3 | 90104036000 Thrust washer 22.2x31.7x1 | Thrust washer 22.2x31.7x1 | 2 | $1.99 | Available | 2 |
| 2 | 90104034001 OIL SEAL RING 25X32X7 | OIL SEAL RING 25X32X7 | 2 | $3.99 | Available | 2 |
| 4 | 90104034000 cup for radial shaft seal | cup for radial shaft seal | 2 | $4.99 | Available | 2 |
| 5 | 90104032000 sleeve bushing 15.1x20x38 | sleeve bushing 15.1x20x38 | 1 | $8.19 | Available | 1 |
| 9 | 96304033000 swingarm needle bearing | swingarm needle bearing | 1 | $9.89 | Available | 1 |
| 7 | 96304034001 Seal oil | Seal oil | 2 | $2.99 | Available | 2 |
| 8 | 96304032000 swingarm bush | swingarm bush | 1 | $5.38 | Available | 1 |
| 10 | 96304066000 SLIDER CHAIN | SLIDER CHAIN | 1 | $27.60 | Available | 1 |
| 15 | 96304066010 SHIELD SLIDER CHAIN | SHIELD SLIDER CHAIN | 1 | $4.99 | Available | 1 |
| 11 | J900000601207 SCREW SOCKET STEP M6X1 | SCREW SOCKET STEP M6X1 | 2 | $0.99 | Available | 2 |
| 24 | J900000600904 special screw M6x15-8.8-hexago | special screw M6x15-8.8-hexago | 1 | $0.99 | Available | 1 |
| 25 | J900000601502 SCREW SOCKET STEP M6X1 | SCREW SOCKET STEP M6X1 | 1 | $0.99 | Available | 1 |
| 19 | A61704050000 COVER CHAIN REAR | COVER CHAIN REAR | 1 | $17.15 | Out of Stock | Notify Me |
| 17 | 96304060000 COVER CHAIN OUTER | COVER CHAIN OUTER | 1 | $3.99 | Available | 1 |
| 16 | 96313026000 GUIDE CABLE | GUIDE CABLE | 1 | $1.99 | Out of Stock | Notify Me |
| 12 | J910001401000 nut swingarm axle | nut swingarm axle | 2 | $1.99 | Available | 2 |
| 14 | 96304037000 Swingarm axle | Swingarm axle | 1 | $17.15 | Available | 1 |
| 13 | 90104046000 swingarm adjusting ring | swingarm adjusting ring | 2 | $7.27 | Available | 2 |
| 23 | 96310084000 chain tensioner right | chain tensioner right | 1 | $7.96 | Available | 1 |
| 26 | 96310083000 chain tensioner left | chain tensioner left | 1 | $8.07 | Available | 1 |
| 22 | 90104040000 BOLT HEX M10X1.25X50 WS10 | BOLT HEX M10X1.25X50 WS10 | 2 | $6.46 | Available | 2 |
| 21 | 90104010002 flanged hex nut M10x1.25 WS13 | flanged hex nut M10x1.25 WS13 | 2 | $2.99 | Available | 2 |
