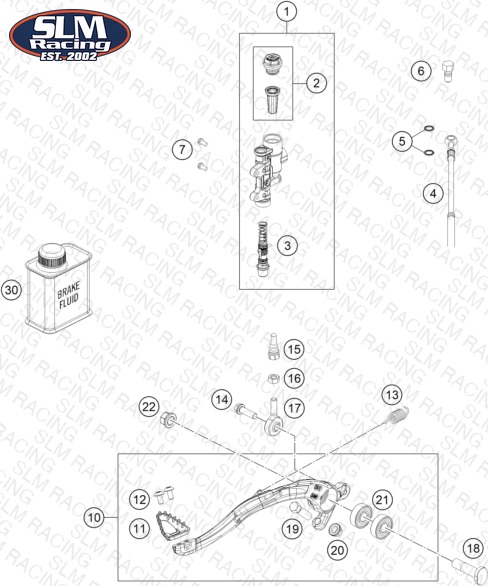

REAR BRAKE CONTROL
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A54013060044 rear master cylinder | rear master cylinder | 1 | $219.66 | Available | 1 |
| 2 | A54013062100 Cover Brake cylinder cpl. | Cover Brake cylinder cpl. | 1 | $30.79 | Available | 1 |
| 3 | A54013061000 rear master cylinder repair ki | rear master cylinder repair ki | 1 | $67.97 | Backorder — Restocking | 1 |
| 4 | A54013070000 Rear brake hose | Rear brake hose | 1 | $64.99 | Backorder — Restocking | 1 |
| 5 | 0603100141 sealing ring DIN 7603 10x14x1 | sealing ring DIN 7603 10x14x1 | 2 | $2.99 | Available | 2 |
| 6 | A54013025000 bolt M10 | bolt M10 | 1 | $15.28 | Available | 1 |
| 7 | 0025060126 HH collar screw M6x12 TX30 | HH collar screw M6x12 TX30 | 2 | $3.99 | Available | 2 |
| 10 | A46013050044 foot brake lever cpl | foot brake lever cpl | 1 | $120.29 | Available | 1 |
| 11 | 79413051000 Step brake lever 16 | Step brake lever 16 | 1 | $35.08 | Backorder — Restocking | 1 |
| 12 | 58605083010S Torx hexagon socket screw M5x1 | Torx hexagon socket screw M5x1 | 2 | $2.99 | Available | 2 |
| 13 | A46003062000 Retracting spring | Retracting spring | 1 | $2.99 | Available | 1 |
| 14 | 0025060206S HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 1 | $2.99 | Available | 1 |
| 15 | 54813056000 PUSH ROD L=28MM 03 | PUSH ROD L=28MM 03 | 1 | $18.69 | Available | 1 |
| 16 | 0934060003 Hex. nut DIN 934 M6 | Hex. nut DIN 934 M6 | 1 | $1.99 | Available | 1 |
| 17 | 54813055100 Joint head CMP6 | Joint head CMP6 | 1 | $23.42 | Available | 1 |
| 18 | 47213054000 Screw foot brake lever | Screw foot brake lever | 1 | $4.99 | Available | 1 |
| 19 | 59001037000 SPECIAL SCREW M8X26 WS=10 | SPECIAL SCREW M8X26 WS=10 | 1 | $3.99 | Available | 1 |
| 20 | 46030045000 flanged nut M8 WS10 | flanged nut M8 WS10 | 1 | $9.23 | Available | 1 |
| 21 | 0625060002 deep groove ball bearing SKF 6 | deep groove ball bearing SKF 6 | 2 | $14.51 | Available | 2 |
| 22 | 54630044000 COLLAR NUT M10 WS=13 | COLLAR NUT M10 WS=13 | 1 | $1.99 | Available | 1 |
| 30 | 00062030000 Brake fluid DOT5.1 0,25L | Brake fluid DOT5.1 0,25L | 1 | $13.99 | Available | 1 |
